INSPECTION OF PTO BELT
Periodically checking the PTO belt (A) of this power
unit can prevent sudden failure by fi nding problems
before they cause the belt to break. It is recom-
mended to inspect the PTO belt every 50 hours of
operation, or if a problem is suspected. There may
be a PTO belt problem if there is a squealing or
chattering sound, or the smell of a slipping belt.
1. Park power unit on a level surface.
2. Engage parking brake and shut off engine.
3. Remove ignition key from switch.
B
B
A
A

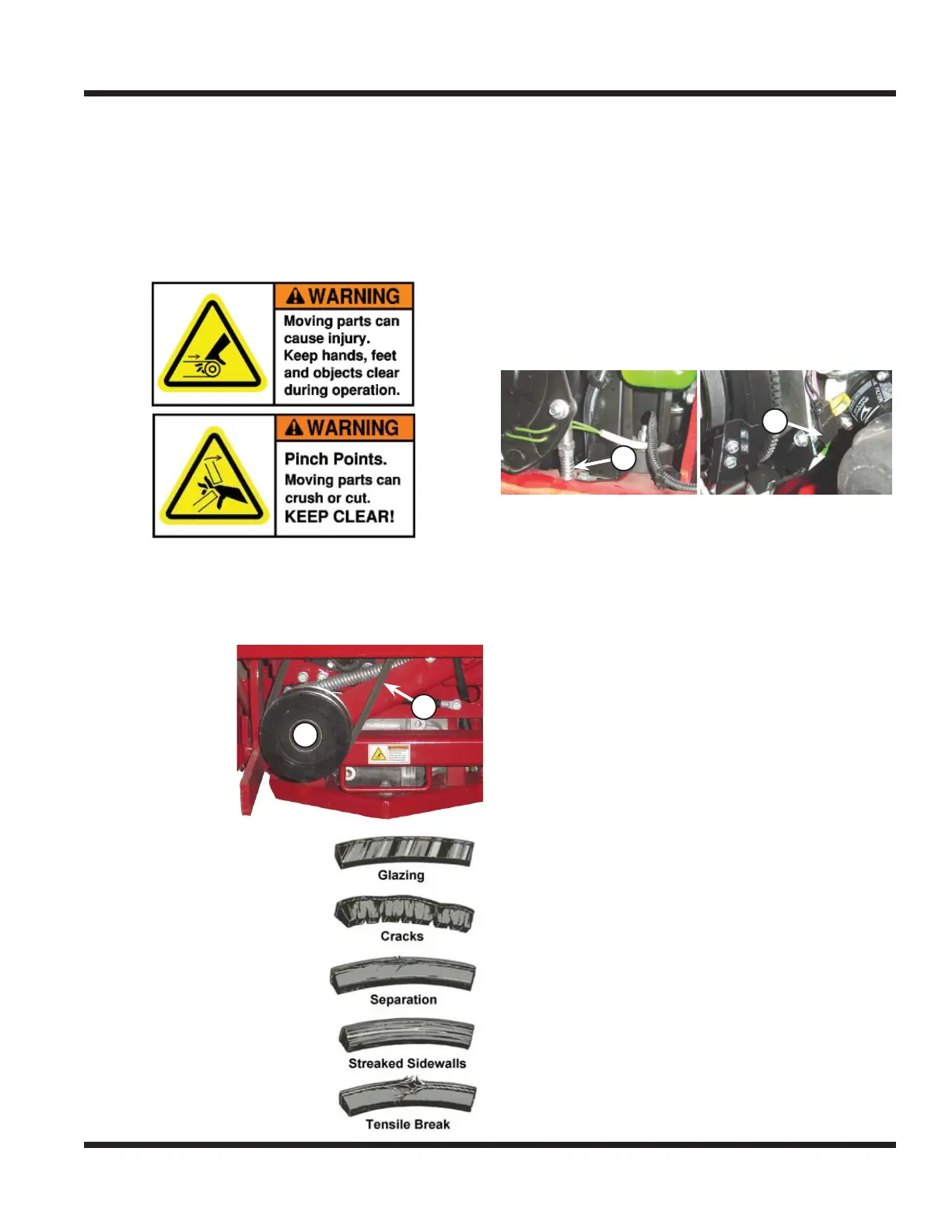

4. Check the
PTO belt (A) at
the PTO idler
pulley (B).
5. Typical wear on the PTO
belt may result in the
following conditions as
shown at right. If any of
these conditions occur,
then the belt will require
replacement.
PTO BELT REPLACEMENT
1. Park power unit on a level surface.
2. Engage parking brake and shut off engine.
3. Remove ignition key from switch and allow en-
gine to cool.
4. Open engine hood.
5. Rotate the belt tension lever down to release
tension on the PTO belt.
6. (Vanguard only) Remove the nut from the
clutch rod (A) and remove rod from power unit
frame.
7.
A
A
B
B
(Vanguard only) Locate the clutch plug (B) and
disconnect plug from power unit wire harness.
8. Lift up on the PTO idler pulley and remove the
belt from the pulley.
9. Pull belt up between the power unit cross frame
and the clutch to remove. If necessary, rotate
clutch counterclockwise to increase gap between
clutch and frame.
10. Push the new belt down between the frame and
clutch.
11. Install the belt onto the clutch pulley.
12. Lift up on the PTO idler pulley and install the belt
into the rear groove of the idler pulley.
13. (Vanguard only) Reconnect the clutch plug to the
power unit wire harness.
14. (Vanguard only) Reinstall the clutch rod to the
power unit frame.
15. Close engine hood.
