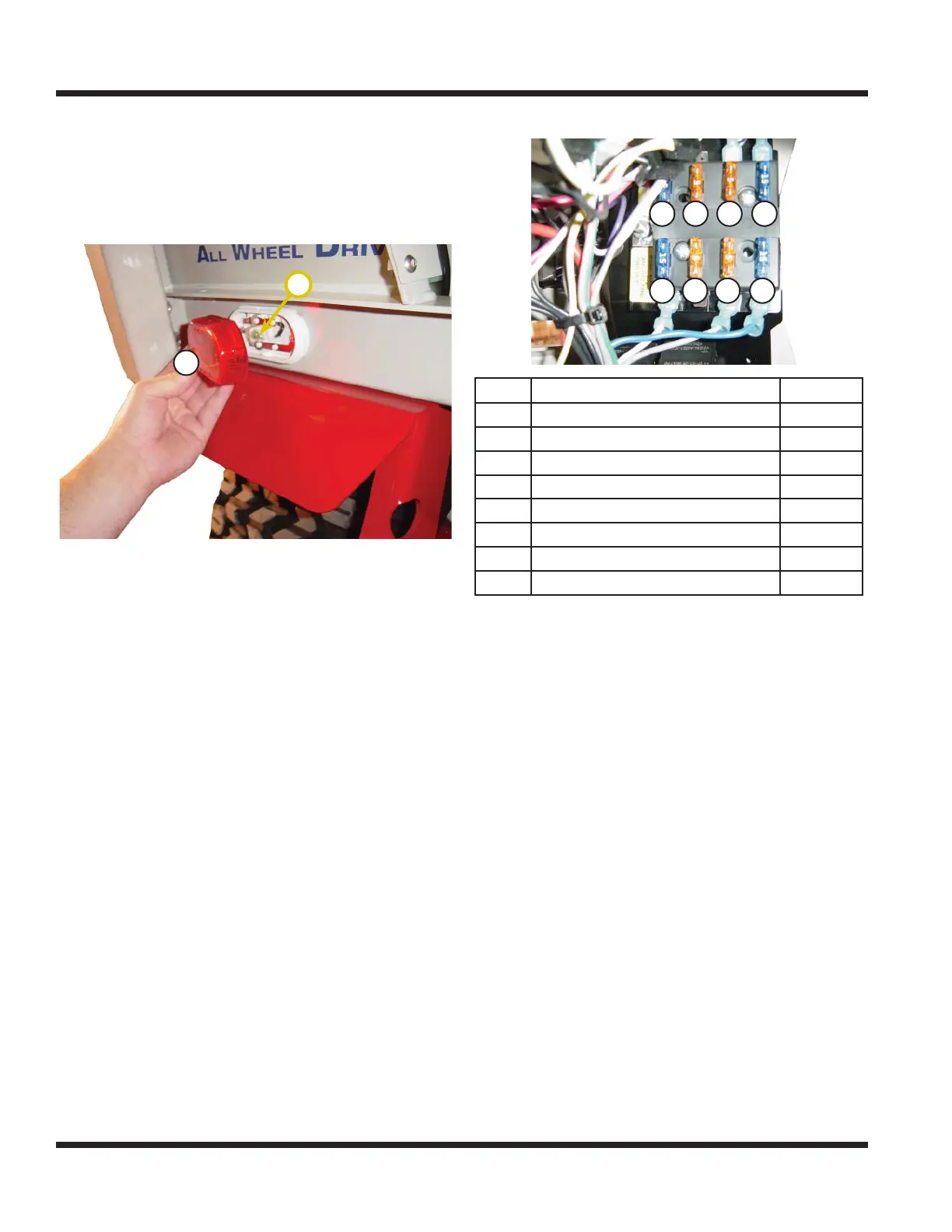

CHANGING THE TAILLIGHTS
1. Park power unit on a level surface.
2. Engage parking brake and shut off engine.
3. Remove ignition key from switch.
4. Remove the taillight cover (A).
5.
A
A
B
B
Pull the old bulb (B) from its socket.
6. Apply dielectric grease and install new bulb.
7. Snap taillight cover back into place.
CHANGING THE FUSES
A
A
B
B
D
D
C
C
E
E
F
F
H
H
G
G
REF CIRCUIT FUSE SIZE
A Headlights, Taillights, Tach. Light 15
B* Alternator, Optional Accessories 5
C Gauges, Signal Lights 5
D Rear Auxiliary 15
E Engine Supply 15
F* Engine Module, Preheat, Optional Acc. 5
G* Fuel Pump 5
H Start and PTO Circuits 15
* Not used on all models.
1. Park power unit on a level surface.
2. Engage parking brake and shut off engine.
3. Remove ignition key from switch.
4. Open engine hood.
5. Identify and pull the defective fuse from socket.
6. Push new fuse into socket. Be certain to use the
correct size fuse, or damage may occur to the
power unit.
7. Close engine hood.
