Videx 4000 Series User Manual

66250980-EN - V1.0 - 06/02/14
2
POWER SUPPLY & CONNECTION

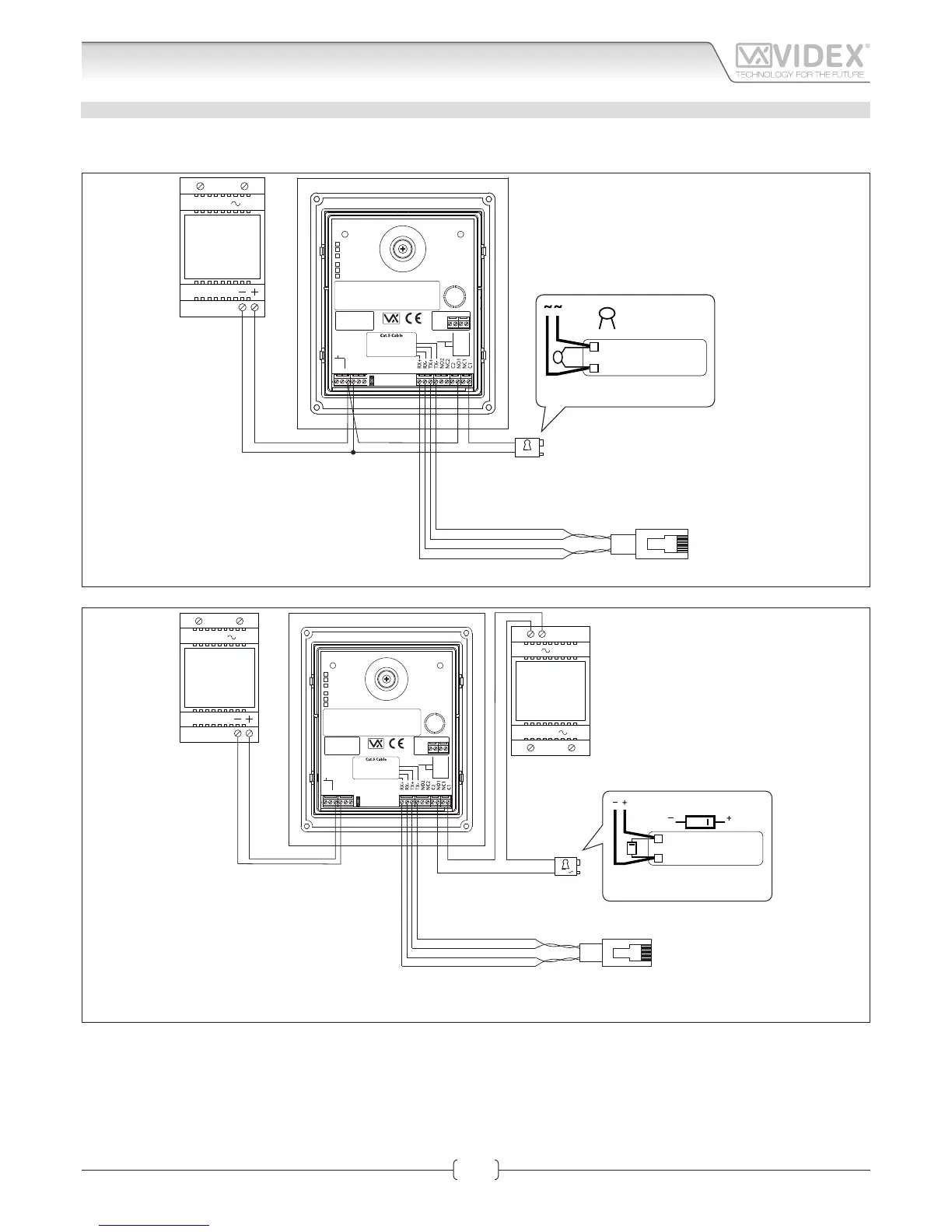

For 12Vdc electric lock, follow the connections shown in Fig. 3 otherwise, for 12Vac electric lock, follow the connections shown in
Fig. 4. When you use a 12Vac electric lock, it is necessary to install an additional power supply not provided with the kit.
230V
12Vdc
Art.AMR2-12
or
12Vdc 2A
PSU
12Vdc
4503-0
4503-1
4503-1D
Stainless Steel
Aluminium
High Brass
green / verde
green-white / verde-bianco
orange / arancione
orange-white / arancione-bianco
GND PTE
Not
Used
0Vdc +12Vdc
Made in Italy
RX - RS-232
TX - RS-232
GND
From
Art.4513
Day/Night
Infrared LED
Colour Camera
NETWORK SETTINGS DEFAULT
IP ADDRESS: _____ . _____ . _____ . _____ (192.168.1.3)
SUBNET MASK: _____ . _____ . _____ . _____ (255.255.255.0)
GATEWAY: _____ . _____ . _____ . _____ (192.168.1.1)
0.1uF capacitor
12V AC
LOCK RELEASE
Plug into a switch, router
or directly* to the
ethernet interface of the
Kristallo Videophone
GREEN
GREEN-WHITE
ORANGE-WHITE
ORANGE
See “Fig. 5” on page 3
Fig. 3
230V
12V
Art.321
or
12Vac 1.3A
PSU
230V
12Vdc
Art.AMR2-12
or
12Vdc 2A
PSU
12V
4503-0
4503-1
4503-1D
Stainless Steel
Aluminium
High Brass
green / verde
green-white / verde-bianco
orange / arancione
orange-white / arancione-bianco
GND PTE
Not
Used
0Vdc +12Vdc
Made in Italy
RX - RS-232
TX - RS-232
GND
From
Art.4513
Day/Night
Infrared LED
Colour Camera
NETWORK SETTINGS DEFAULT
IP ADDRESS: _____ . _____ . _____ . _____ (192.168.1.3)
SUBNET MASK: _____ . _____ . _____ . _____ (255.255.255.0)
GATEWAY: _____ . _____ . _____ . _____ (192.168.1.1)
DIODE
1N4002
12V DC
LOCK RELEASE
Plug into a switch, router
or directly* to the
ethernet interface of the
Kristallo Videophone
GREEN
GREEN-WHITE
ORANGE-WHITE
ORANGE
See “Fig. 6” on page 3
Fig. 4
* When the devices are connected directly certain features which require the internet will not be available.
** If the videointercom is not connected to a POE switch or router, it is necessary to connect an external PSU (terminals “+12Vdc” & “GND”). If the videointercom is provided in a video kit, you can use
the PSU included in the video kit. For distances between the videointercom and the PSU up to 25 metres use 2 cables 1.0mm
2
(AWG17).
