Set-upSet-up
15

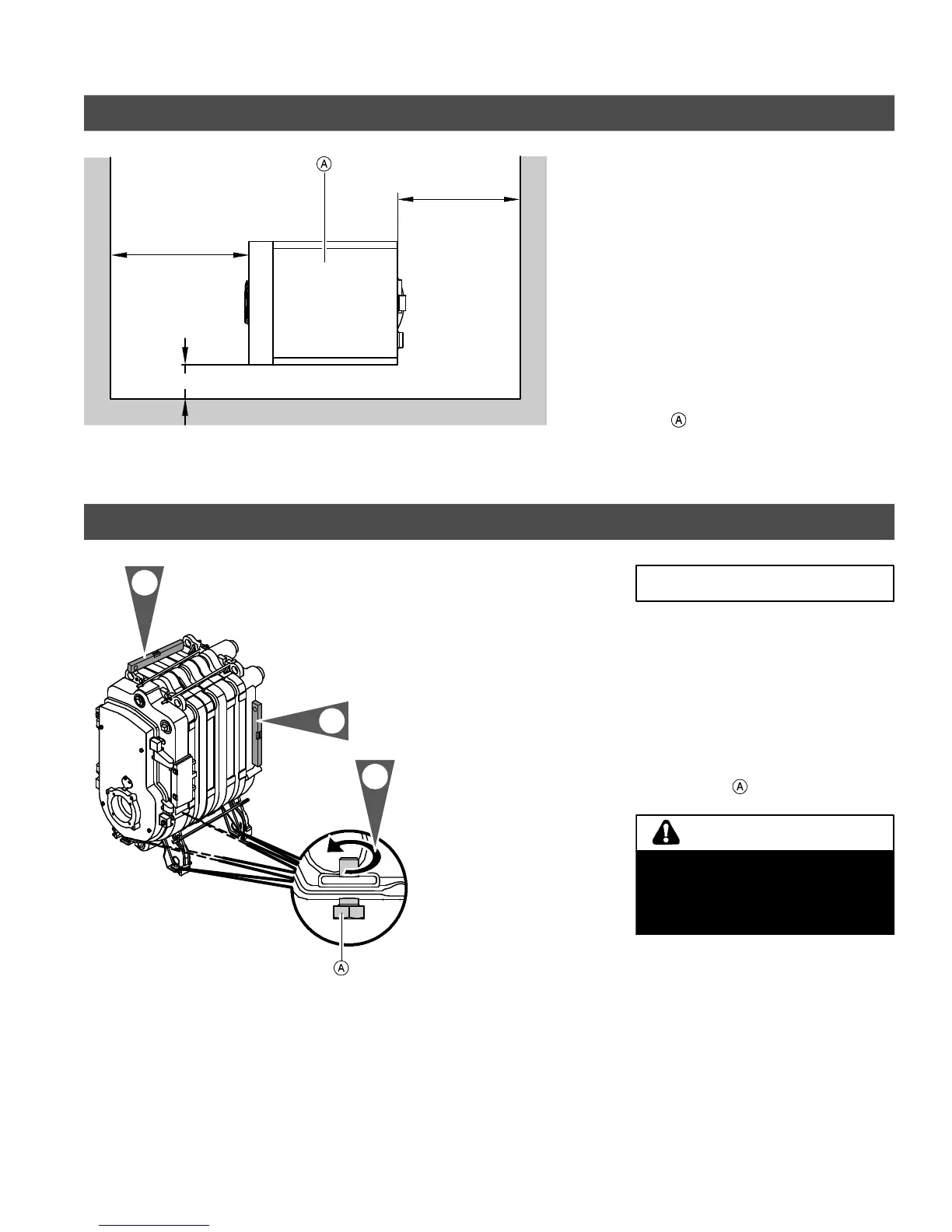

Recommended Minimum Clearances for Service
Boiler
Fig. 6
*1
Minimum access for cleaning and service.
Boiler Set-up and Location
For important information concerning
boiler placement and set-up, refer to the
section entitled “Mechanical Room” on
page 10.
The boiler should be located as close to
the chimney as possible.
Set-up/locate boiler with slight incline
towards the rear of the boiler using
levelling bolts
.
5671 044 v1.0
20” / 508 mm
4” / 100 mm
33½” / 850 mm
*1
2.
1.
1.
Fig. 7
IMPORTANT
5671 044 v1.0
Boiler must be installed in such a way
that oil ignition system components
are protected from water (spraying,
splashing, etc) during boiler system
operation and service.
CAUTION
To Next Page
