Viessmann Vitorond 100 - Installation of Vitotronic Control

Connections
50
Burner Set-up (Riello)
Installation of Vitotronic control
Installation Instructions
Boiler Control (for all
connections to control base)
The power supply cable is shipped with
the boiler control.
1. Loosen two screws and remove
cover plate.
2. Remove top back panel.
3. Remove front panel.
4. Place control console on boiler and
fasten with two screws removed in
step 1.
Boiler temperature sensor number
is
shipped with the boiler control (does
not apply to Vitotronic 100, KK10).
5. Carefully push high limits
thermometer sensor and boiler
temperature sensor behind front
panel and into sensor wells as far as
possible. Lay excess sensor cabling
and capillary tubing on insulation.
5671 044 v1.0
2.
3.
4.

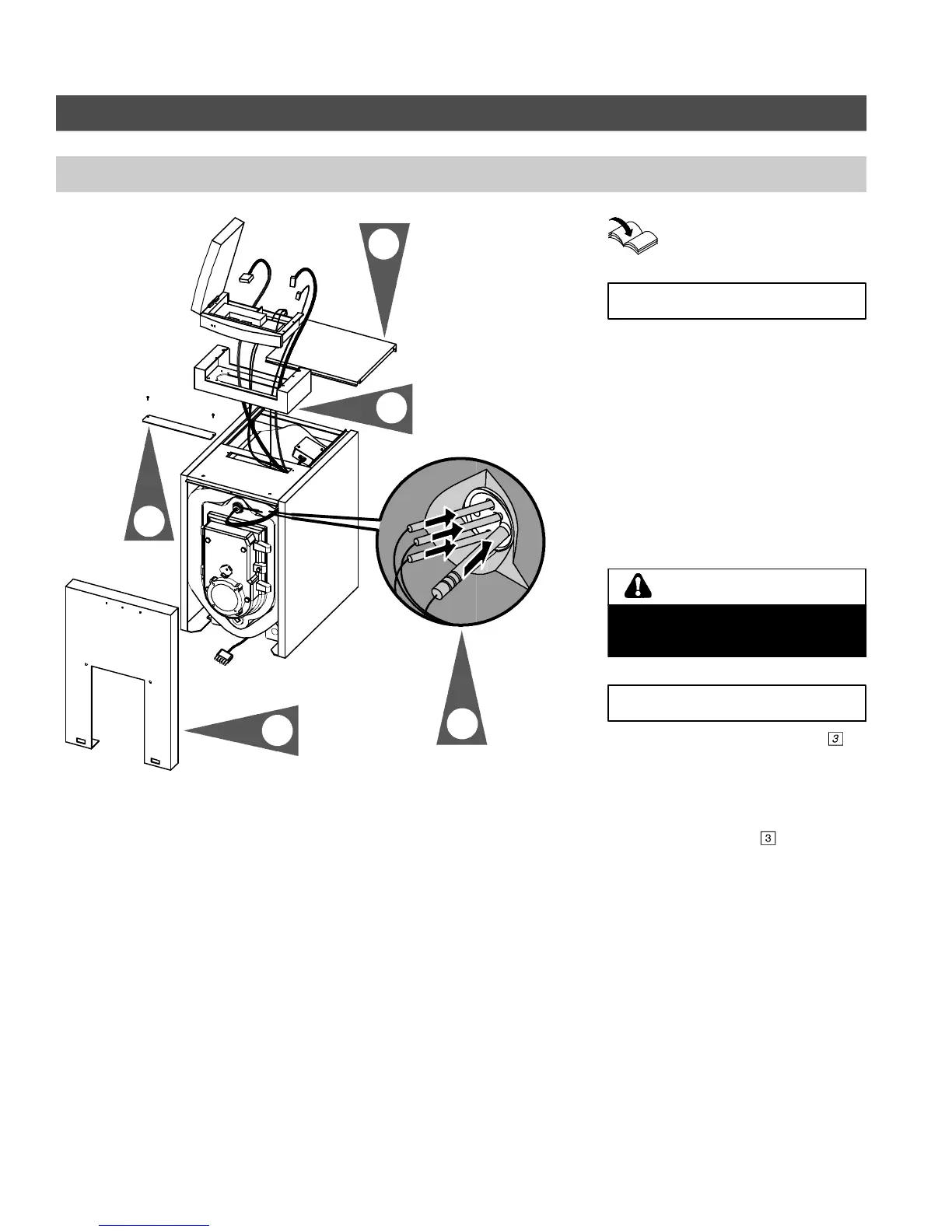

Fig. 48

'
1.
1.
3.
5.
4.
2.
IMPORTANT
Do not kink capillaries. Proper
operation of sensors is not possible if
capillaries are kinked.
WARNING
IMPORTANT
