Additional Information
74

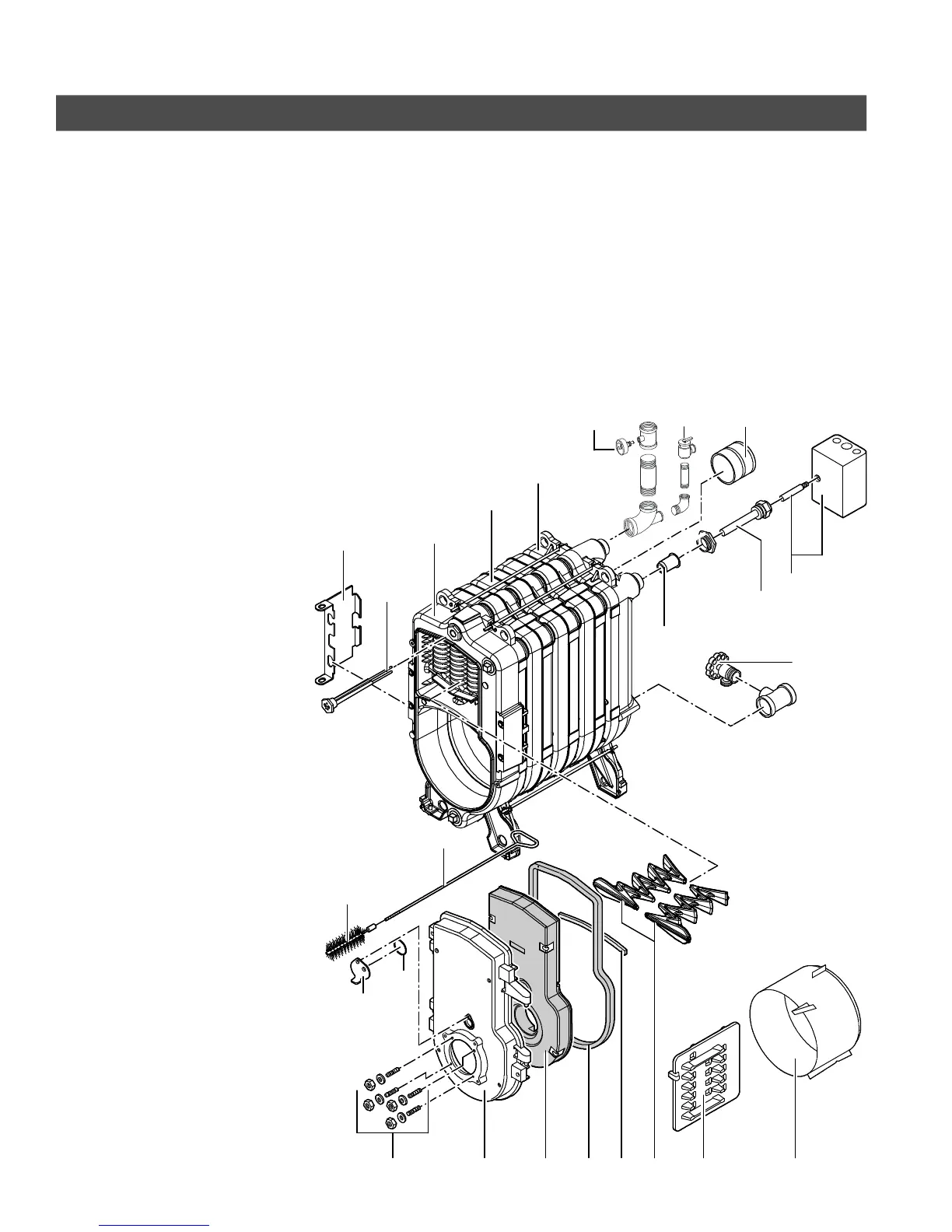

Parts List
001 5-Point sensor well
002 Combustion chamber
door refractory
003 Combustion chamber door
004 Hinge bracket
005 Glass-fiber gasket
006 Glass-fiber gasket, 3x116 mm
*1
008 Observation port cover
010 Glass-fiber gasket,
013 Turbulator insert
*2
014 Turbulator insert
*3
018 Front section (ASME)
*6
019 Mid section (ASME)
*6
020 Rear section (ASME)
*6
023 Combustion chamber insert
305 Split kit for 1 cast-iron section
*6
400 Installation fittings
for Aquastat applications
401 Sediment faucet, ¾” NPT
402 Pressure relief valve, 30 psig
403 Vent pipe adaptor, 6”
404 Sensor well
405 Accessory pack,
burner installation hardware
406 Temperature and pressure gage
407 Aquastat
408 Burner cable 85”, 4-wire
*4
500 Installation fittings
for Vitotronic applications
501 Sediment faucet, ¾” NPT
502 Pressure relief valve, 30 psig
503 Vent pipe adaptor, 6”
504 Junction box
*4
505 Accessory pack,
burner installation hardware
506 Temperature and pressure gage
507 Control cable with #41 plug
*4
508 Burner cable (#41)
*4
509 Vitotronic retrofit housing
*4
510 Return injector nozzle
Wear Parts
016 Cleaning brush handle 800mm
*5
017 Cleaning brush (no handle)
*5
*1
sold with adhesive
*2
for VR1-40/50/63
*3
for VR1-40 only
*4
not shown on diagram
*5
optional - not standard
equipment of boiler
*6
each replacement cast iron
section must be sold with a
split kit
Other parts (not illustrated)
019 Touch-up spray paint Vitotec
silver
020 Touch-up paint stick Vitotec
silver
041 Cleaning brush handle 800 mm,
M10
046 Split kit, VR1-40/50/63
(1 section)
100 Adhesive, 100 ml
107 Installation/Service/Operating
Instructions
108 Parts List
Wear parts (not illustrated)
037 Cleaning brush (no handle)
Parts List (continued)
5671 044 v1.0
405 / 505
023
404
407
401 / 501
017
016
018
019
020
001
014
*3
008
006
003 002 005 010 013
004
510
*2
403 / 503406 / 506 402 / 502
