Burner - Beckett
30

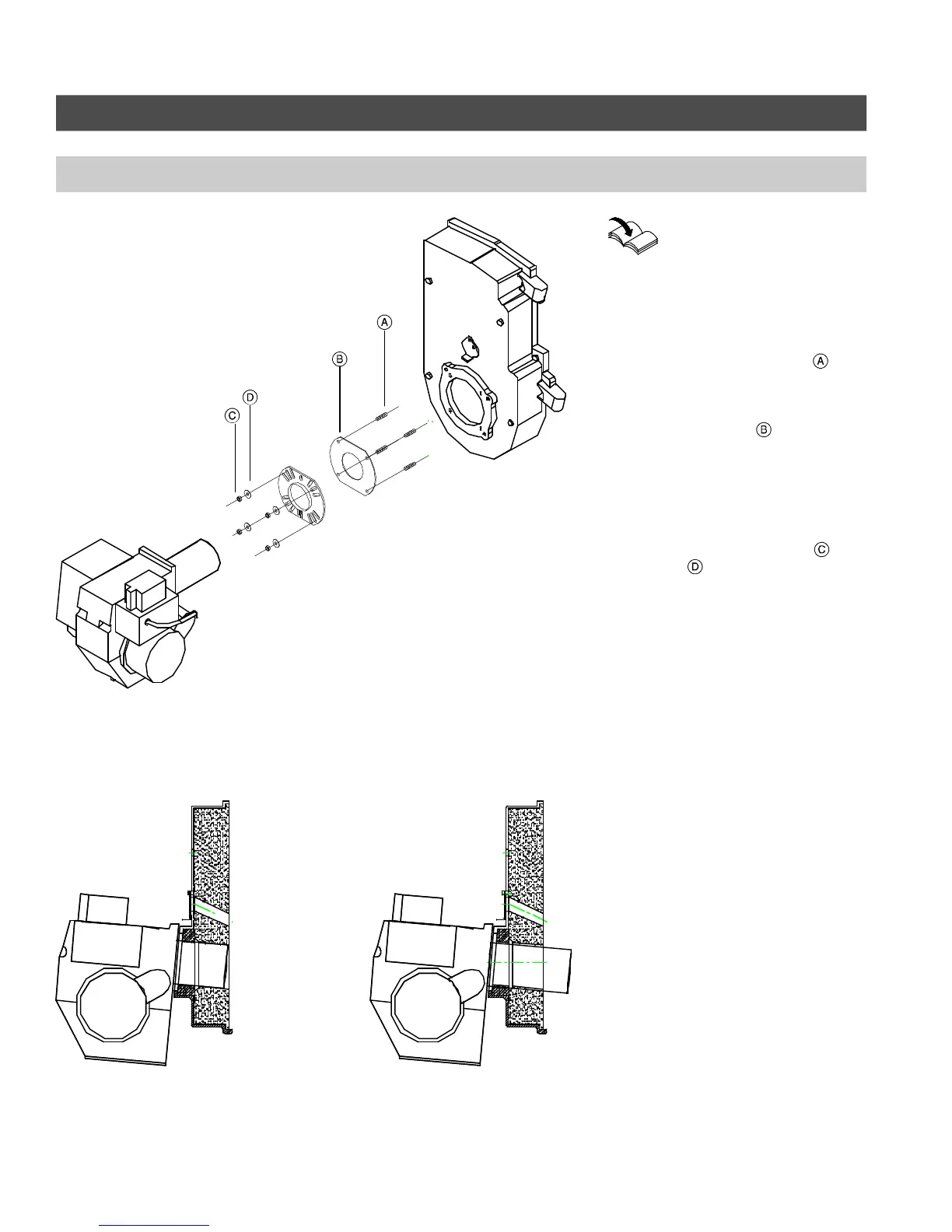

Burner Set-up (Beckett)
Burner mounting
Instructions supplied with
Beckett burner.
1. Remove burner from carton. The
mounting flange has been installed at
the factory.
2. Mount four M8 spacer bolts
in
threaded holes of combustion
chamber door.
3. Slide burner gasket over spacer
bolts.
4. Mount burner as shown.
(For proper insertion lengths see table
on page 59).
5. Secure burner with M8 nuts and
washers provided.
5671 044 v1.0
Burner mounting
Fig. 24
Burner air tube insertion
VR1-40
Fig. 25
Burner air tube insertion
VR1-50, -63
Fig. 26
