Connections
64

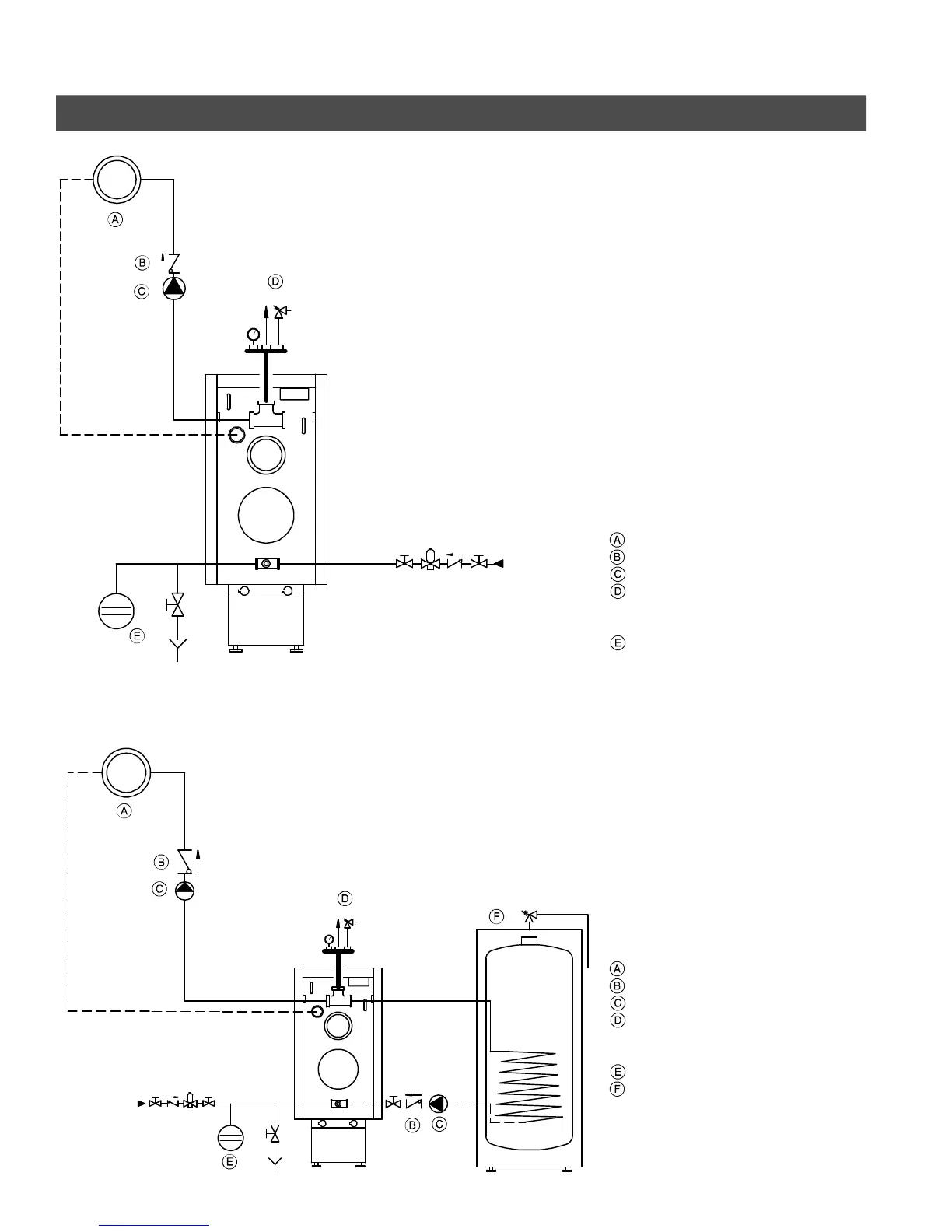

Installation Examples - Vitotronic
Without mixing valve
e.g. with Vitotronic 100, Model KW10B
Heating circuit
Spring-loaded flow check valve
Circulation pump
Automatic air vent (field supplied),
pressure relief valve, and
temperature and pressure gage
Expansion tank
Without mixing valve and with DHW
e.g. with Vitotronic 100, KW10B,
Heating circuit
Spring-loaded flow check valve
Circulation pump
Automatic air vent (field supplied),
pressure relief valve, and
temperature and pressure gage
Expansion tank
Domestic hot water storage tank
(indirect-fired)
5671 044 v1.0
Fig. 61
Fig. 62
