26 D-303973 PowerMaxExpress Installer's Guide
Upon selecting any one of the 3 options (zone a, b and c) you may enter a zone number and then select "disable", "turn on", "turn
off", "pulse active" or "toggle".
The currently saved option is displayed with a dark box at the right side. To review the options, repeatedly click
button
until the desired option is displayed, then click (a dark box will be displayed at the right side).

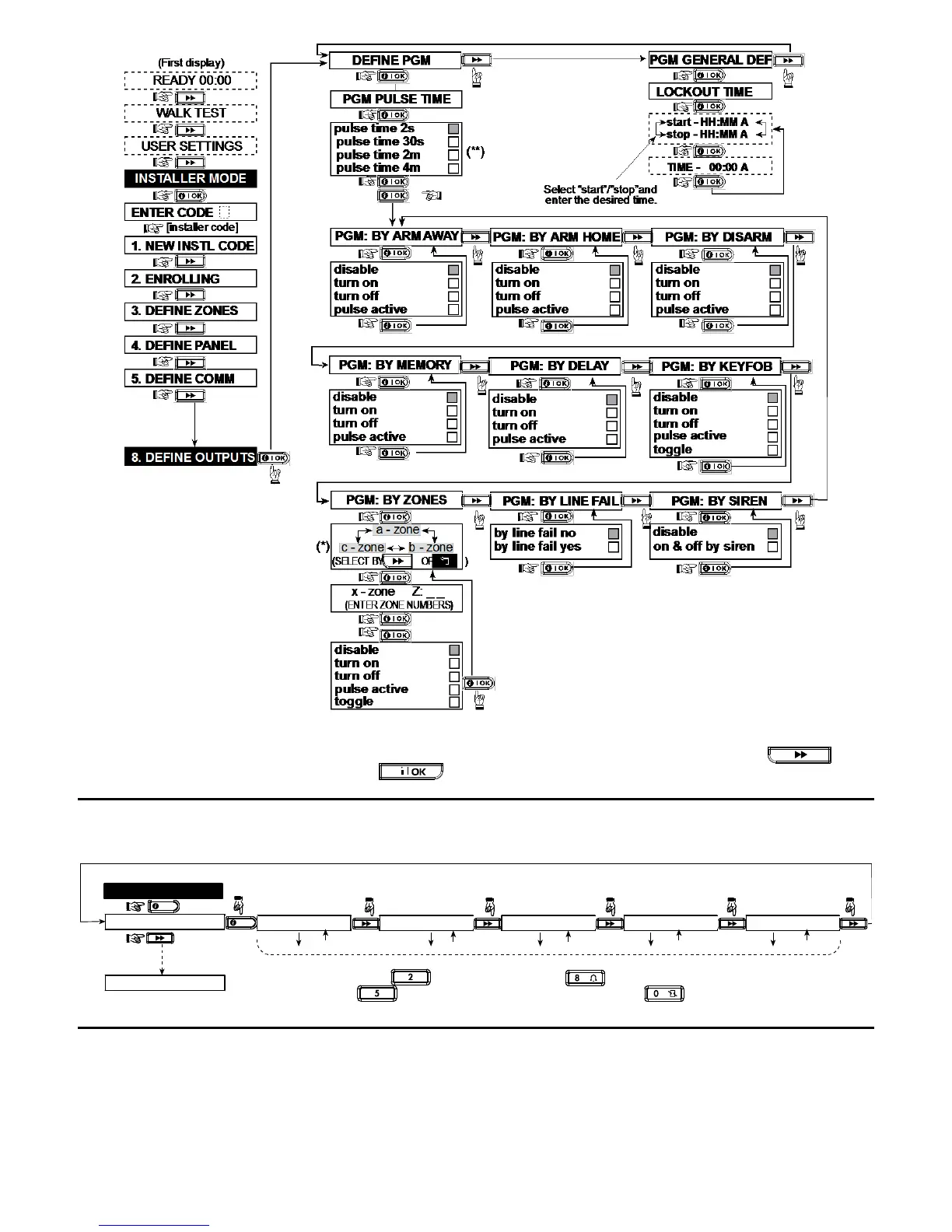

Figure 4.8 Define PGM
4.9 DEFINE CUSTOM
This mode allows you to define up to 5 zones names (in addition to the zone names that can be defined in the DEFINE ZONES
mode - see par. 4.3).
9. DEFINE CUSTOM
(see figure 4.1a)
CUST. ZONES NAME
To edit User Terms, use the following buttons on the control panel keypad:
press to scroll backward; press to scroll forward ;
press to change from small caps to big caps ; press for space
EDIT USER TERM 1 EDIT USER TERM 2 EDIT USER TERM 3 EDIT USER TERM 4 EDIT USER TERM 5
<OK> TO EXIT
OKI
OKI
Figure 4.9 – Define Custom
4.10 DIAGNOSTIC TEST
This mode allows you to test the function of all protected
area wireless sensors / wireless sirens / wireless keypads /
GPRS / LAN connection / options for resetting the
Broadband Module and to receive / review information
regarding the received signal strength.
The diagnostic test process is shown in figure 4.10.
For WL Sensors / WL Sirens / WL Keypads:
Three reception levels are sensed and reported.
To Next Page
