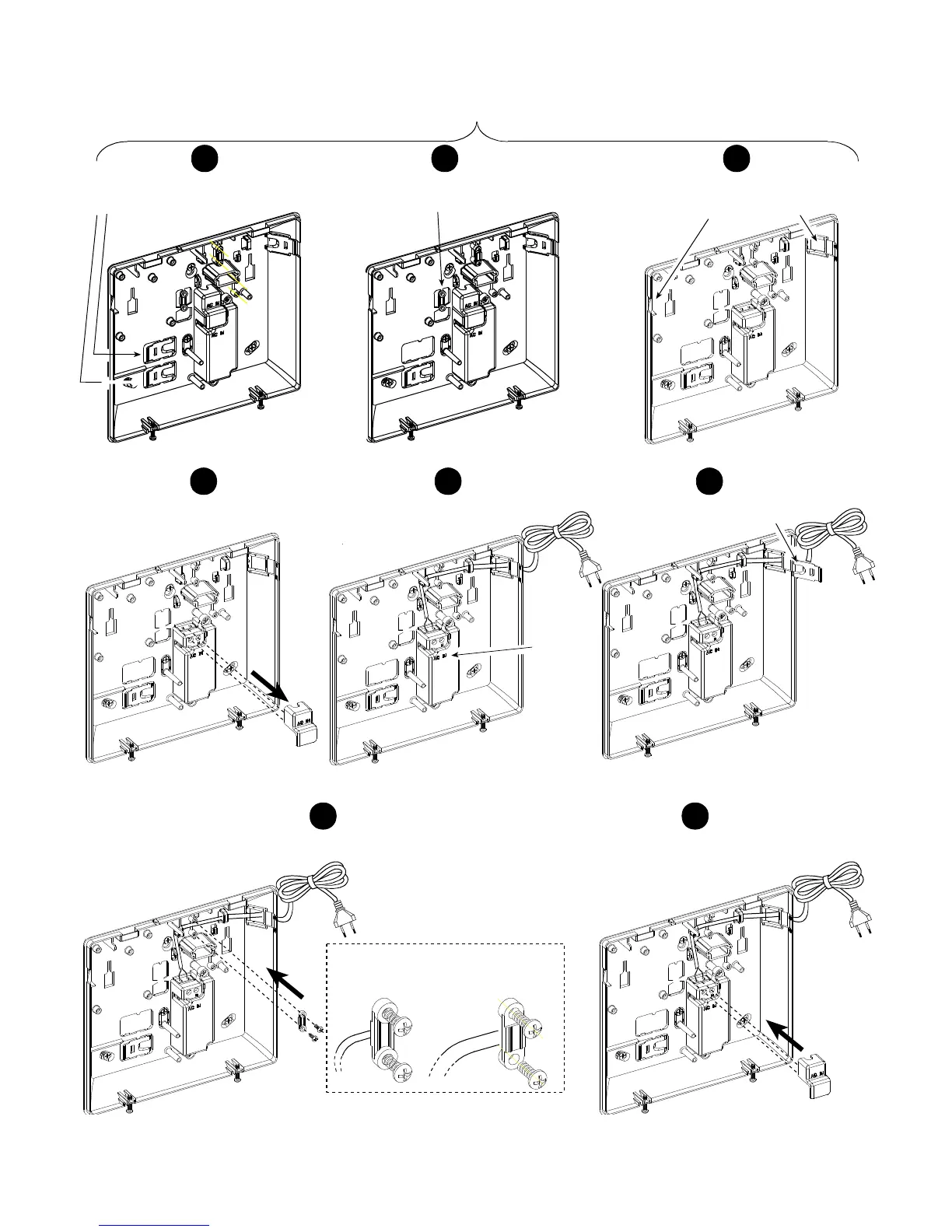

PERFORM STEP 1, 2 & 3 ON A DESKTOP, BEFORE THE MOUNTING!
Extract plastic segment
(will be used later)
2
Insert pastic cap to the power
cable entry (extracted in step 1)
6
Insert power cable and connect it to
the Power Supply Unit terminals.
Verify that the wires are properly
fastened!
Power
supply
module
Extract plastic segment
(left or right, according to
the power wiring direction)
3
5
Remove power supply terminals
cover
4
Close power
supply terminals
cover
8
Terminals
cover
Power cable clamp options
for thin
cable
for thick cable
(reversed clamp)
Fasten power cable by clamp (extracted in step 2).
Note: The clamp direction depends on the cable thickness.
7
POWER CABLE ROUTING
1
Extract either plastic
segments (will be used later)
Note: Do not use mains cable other than that supplied by the manufacturer (3 m long).
