Replacing taillight bulbs in the vehicle body

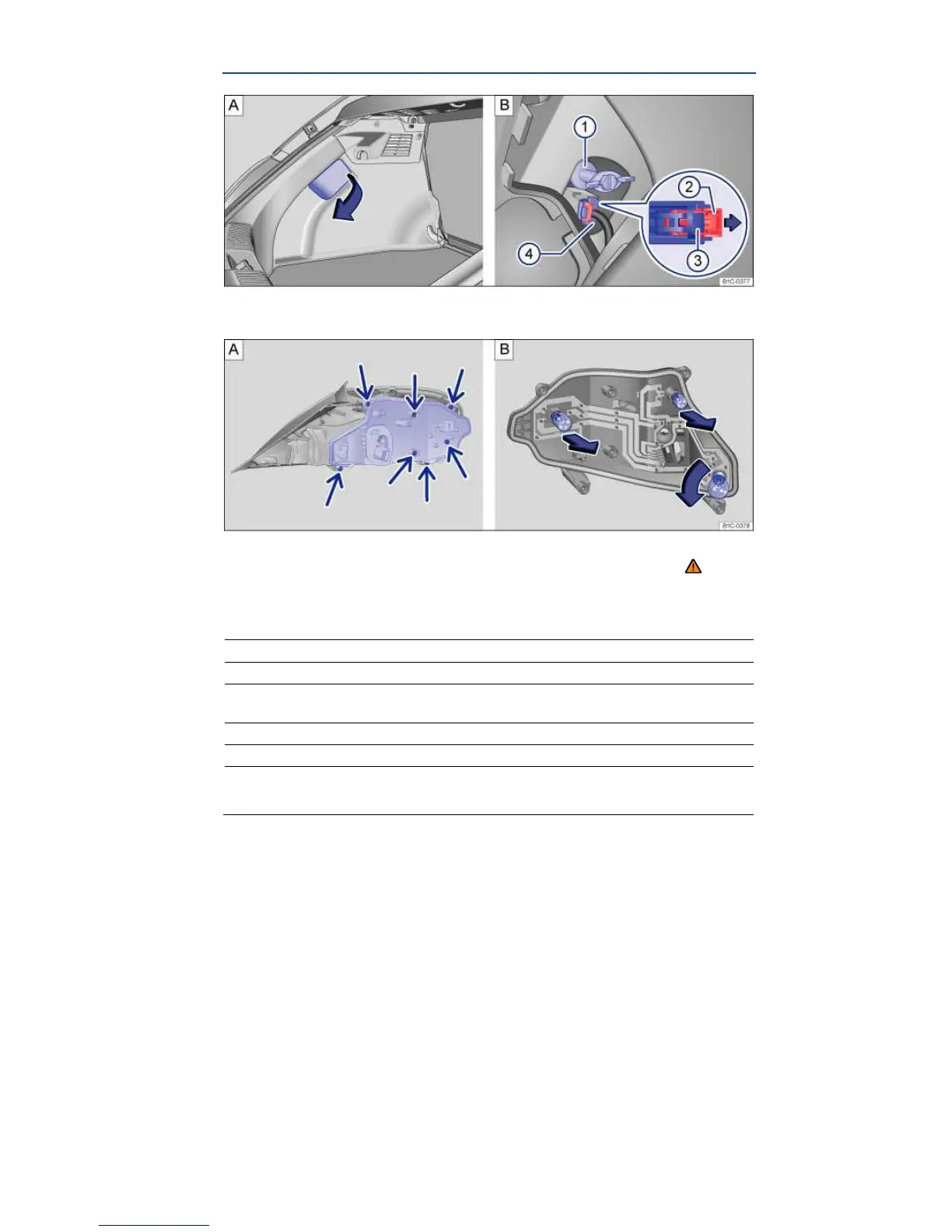

Fig. 178 In the side of luggage compartment: A: Open cover of the rear side panel. B: Removing the taillight
assembly.
Fig. 179 Taillights: A: Removing the bulb holder. B: Removing the taillight bulbs.
¤Please first read and note the introductory information and heed the WARNINGS
Please carry out each step only in the order specified.
Removing the taillight
1. Please review and follow the checklist
2. Open the rear hatch
3.
Open the cover of the rear trim panel ⇒
fig. 178 A (arrow). Use the flat blade of the
screwdriver from the vehicle tool kit, if necessary. Remove the subwoofer, if necessary
4.
Pull the red locking tab B
(2) in the direction of the arrow to unlock connector plug B (4).
5.
Push the plastic catch B
(3) to release connector plug. Then pull out connector plug B (4)
6.
Unscrew the large taillight fastening screw by hand B (1) and carefully remove the taillight
assembly from the vehicle body. Take care that the screw does not fall into the vehicle
body after disassembly.
