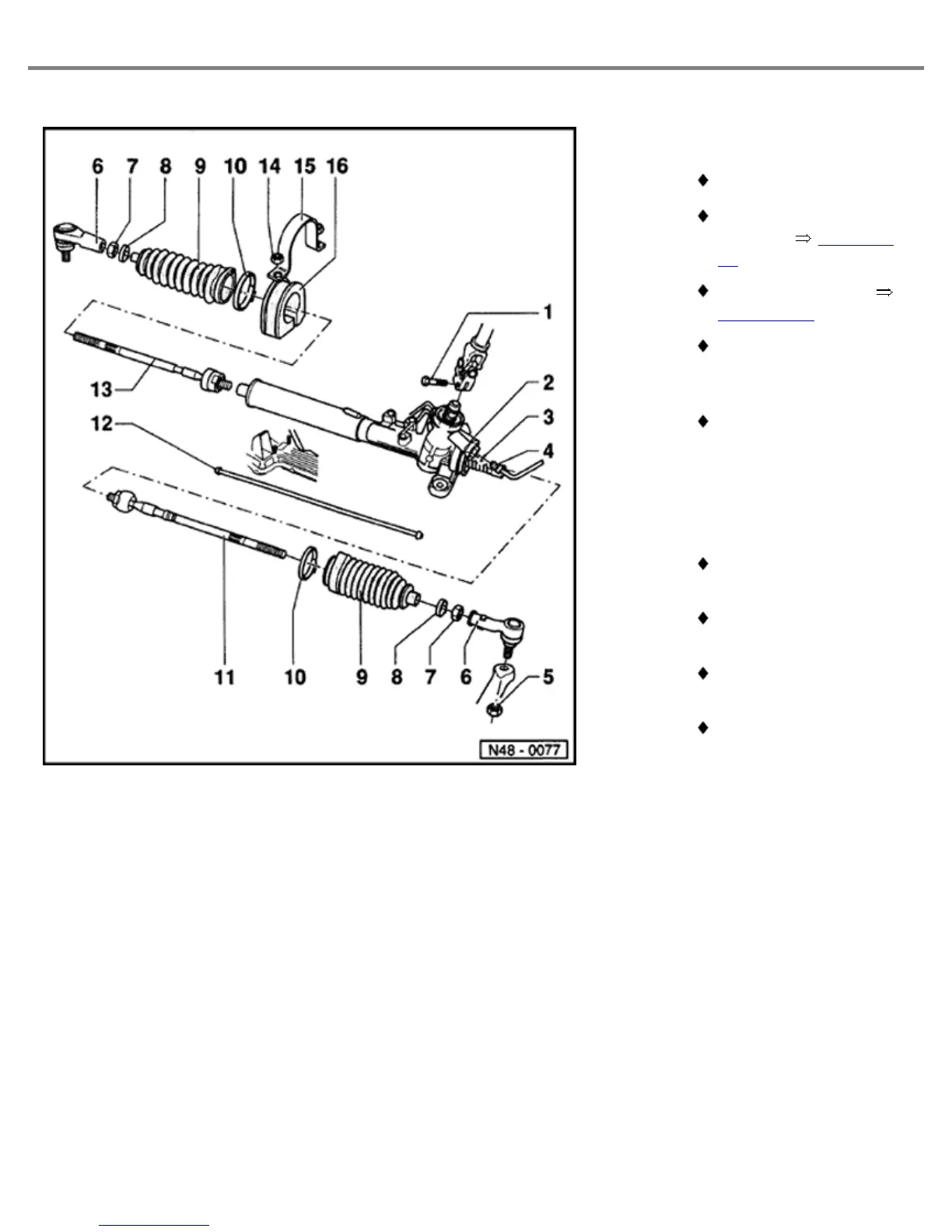

Left-hand tie rod
70 Nm (52 ft lb)
Removing and
installing
Page 48-
77
Adjusting to length
Page 48-84
Tie rod boot seat
diameter
Z
F: 15 mm
TRW: 12.7 mm
Must not be installed
on a ZF power
steering gear
7
-
Hex nut 50 Nm (37 ft lb)
8
-
Boot
Pull on and off over tie
rod
Can be replaced with
steering gear installed
Must not be twisted
after adjusting toe
Must not be installed
on a ZF power
steering gear
Page
21
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&ty
p
e=repair&id=VW.B4.SU01.48.1
290
292
