b) Connect power supply (optional)
• The power supply must supply a stabilised voltage of 9 V/DC and a current of at least 300 mA.
• TheDCbarrelplugmusthavethefollowingspecications:
- Outer diameter 5.5 mm
- Inner diameter 2.5 mm
- Polarity: Inside positive pole, outside negative pole.
• Toconnectthepowersupply,opentheside cover(15).Use asmallat-
head screwdriver for this purpose, for example.

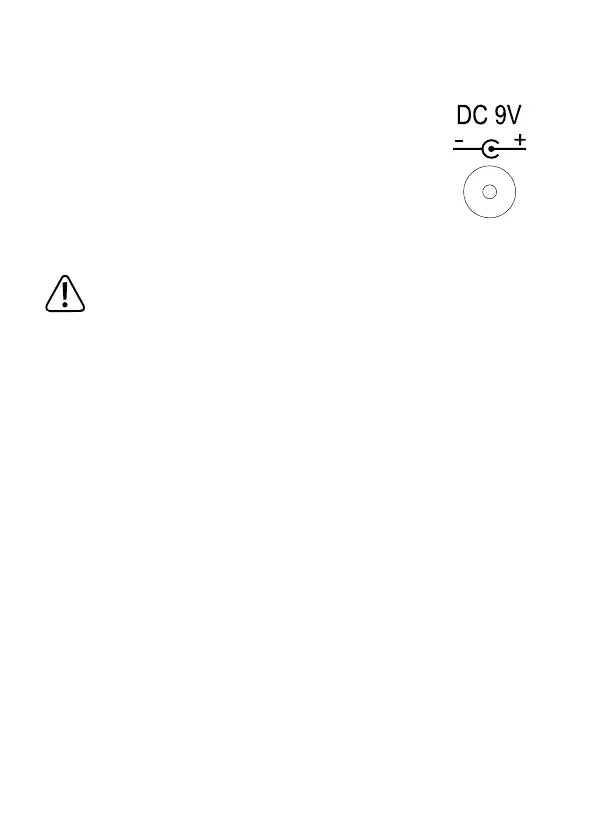

• Insert the DC barrel plug of the power supply into the “DC 9V” socket.
• Connect the mains adapter to a common household wall socket.
The socket must be nearby and easily accessible.
After completion of the measurement, disconnect the power supply from the meter and close
the cover.
