14
Presentation
D12 MG KC Genset engine
The D12 MG KC is a turbocharged, in-line, direct injection, 6-cylinder, 4-stroke marine engine. It is fitted with con-
nections for keel cooling.
Different starting and control systems are available.

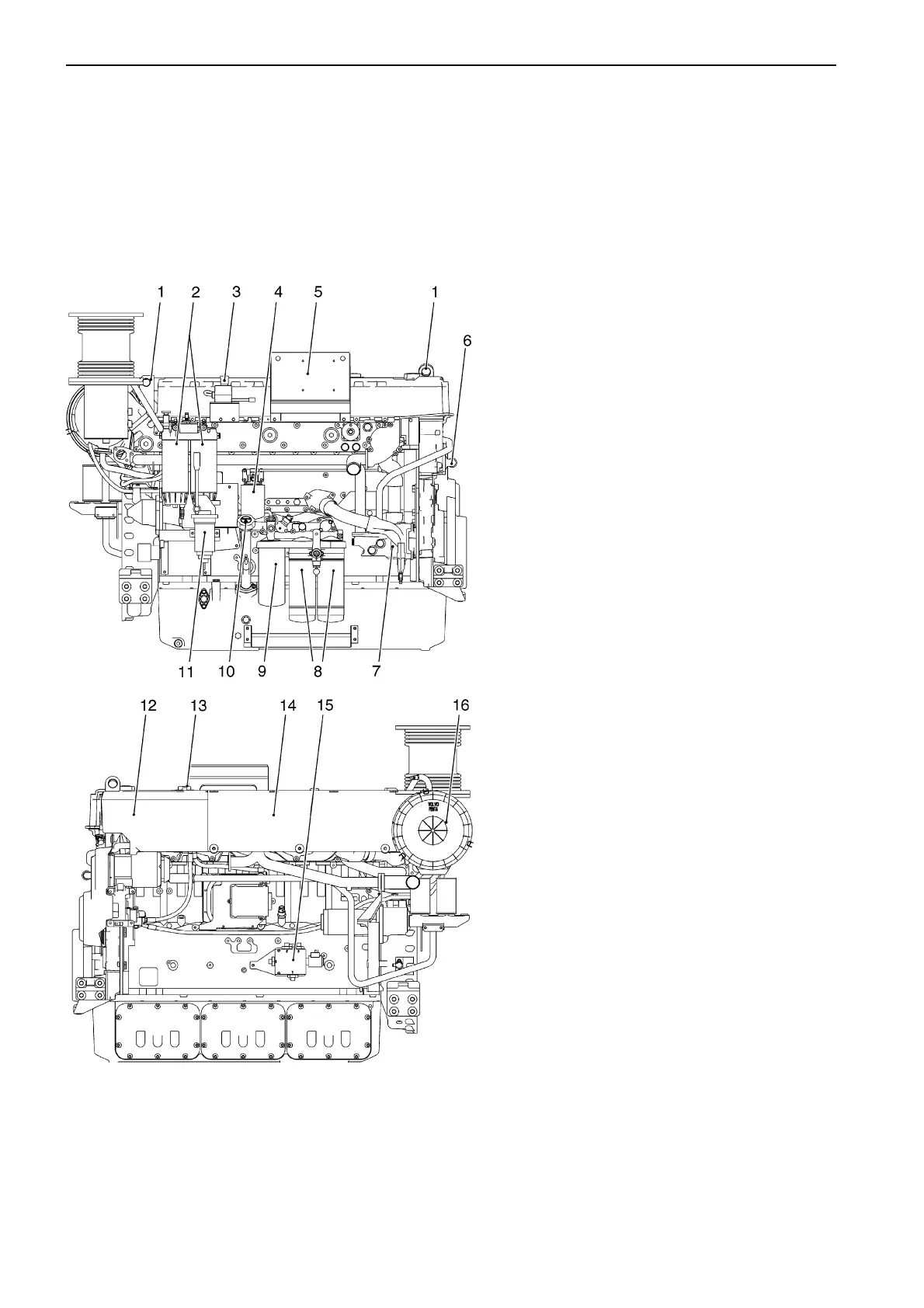

D12 MG KC Genset engine
1. Lifting eyes
2. Switchable fuel filters w. water separator
3. Emergency stop button
4. Coolant filter
5. Electrical connection box
6. Conn. for crankcase ventilation
7. F.W. pump
8. Switchable oil filters (optional)
9. Oil by-pass filter
10. Lubrication oil filling
11. Oil drain pump(optional)
12. Expansion tank
13. Pressure cap
14. Air cooler (beneath the cover)
15. Fuel shut-off valve
16. Air filter
