6

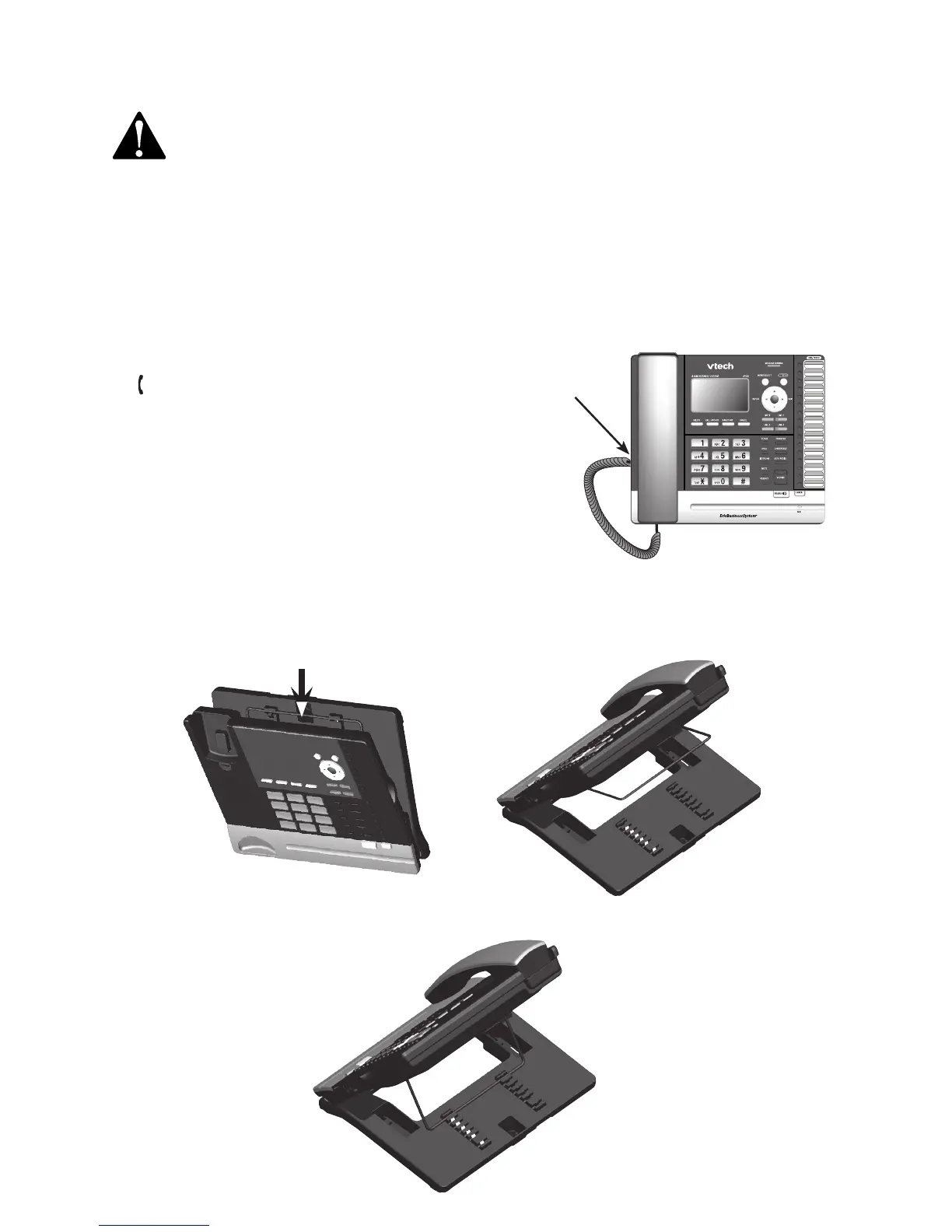

3. Snap the kickstand into the desired grooves until it locks into place.
1. Plug the end of the coiled handset cord into the
jack on the left side of the telephone.
2. Lift the kickstand as the arrow indicates below to release it from the groove.
There are seven pairs of grooves designed to hold the deskset at different
angles for optimum visibility.
Getting started
Deskset installation
• This is not a stand-alone telephone. Make sure you have completed
the installation and basic setup of the UP416 console, before you
proceed with the installation of your deskset.
• Do not power up the deskset until you have plugged in the Ethernet
cable as instructed in step 4.
• The power adapter is intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the
plug in place if it is plugged into a ceiling, under-the-table or cabinet
outlet.
