4.4 CONTROL FUNCTIONS
28 27 30 29 31 32 37 35 24
1 Illuminated display: High-voltage
● Lights up green.
● Display range: 0-100 kV
Resolution 10 kV
● Single LED display: Preset value of high-voltage.
● Bar graph LED: Set voltage.
2 Illuminated display: Corona or Tribo current
● Lights up green.
Tribo scale:
● When a Tribo gun is connected and selected.
● Bar graph LED: when powder feed is activated.
● Display range: 0-5 µA
Resolution 0.5 µA
Corona scale:
● When a Corona gun is connected and selected.
● Display and adjusting range: 0 [5]-120 µA,
0 [5]-20 µA resolution 5 µA,
20-40 µA resolution 10 µA,
40-120 µA resolution 20 µA.
● Single LED display: Application point of current limiting.
● Bar graph LED: Corona current.
34 36 33

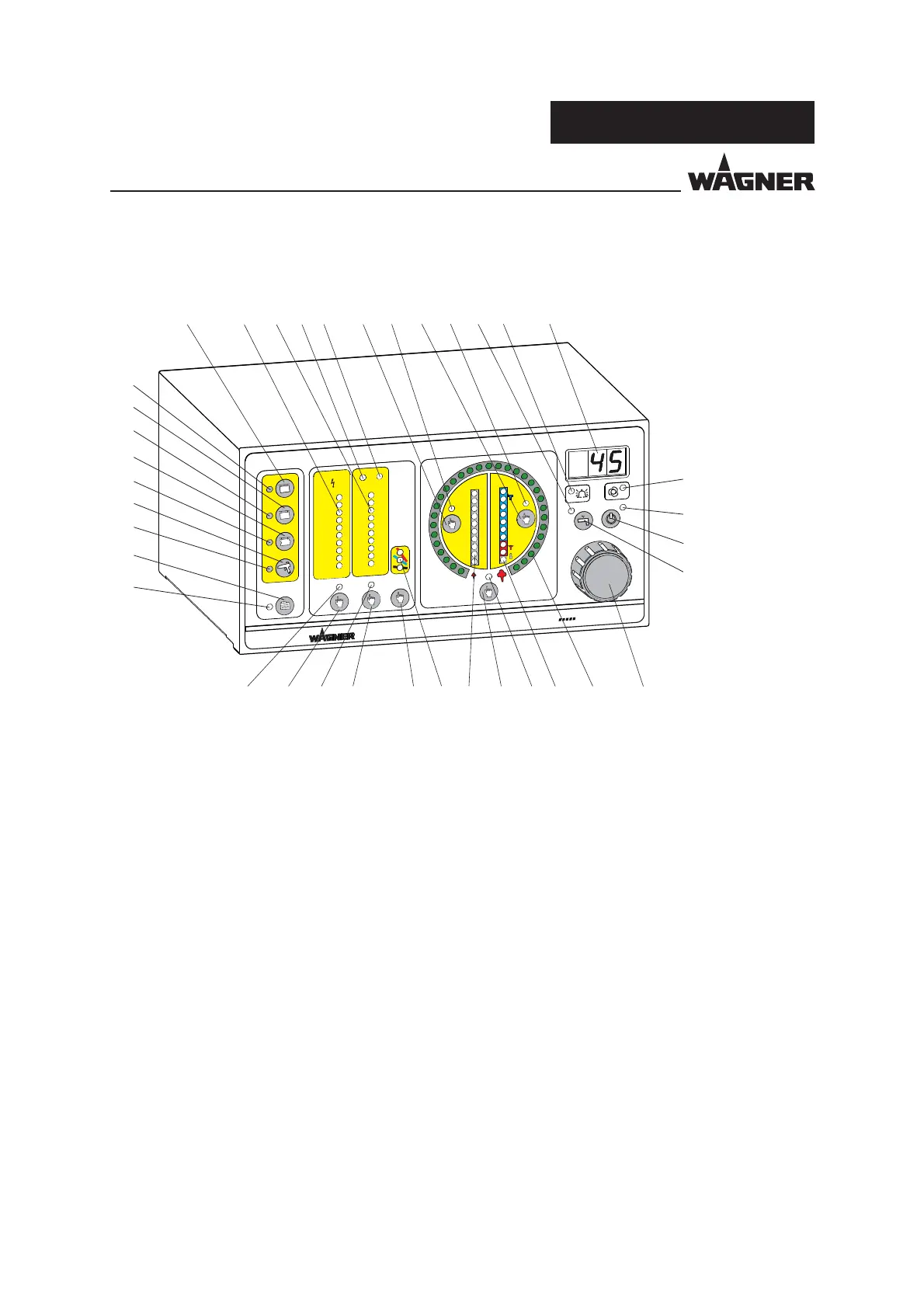

4.4.1 OPERATING ELEMENTS FRONTSIDE
1 2 3 4 20 22 23 18 13 1921
12
8
11
7
10
6
9
25
26
16
17
15
14
5
