6.4.2 PROGRAMS NO. 5-50

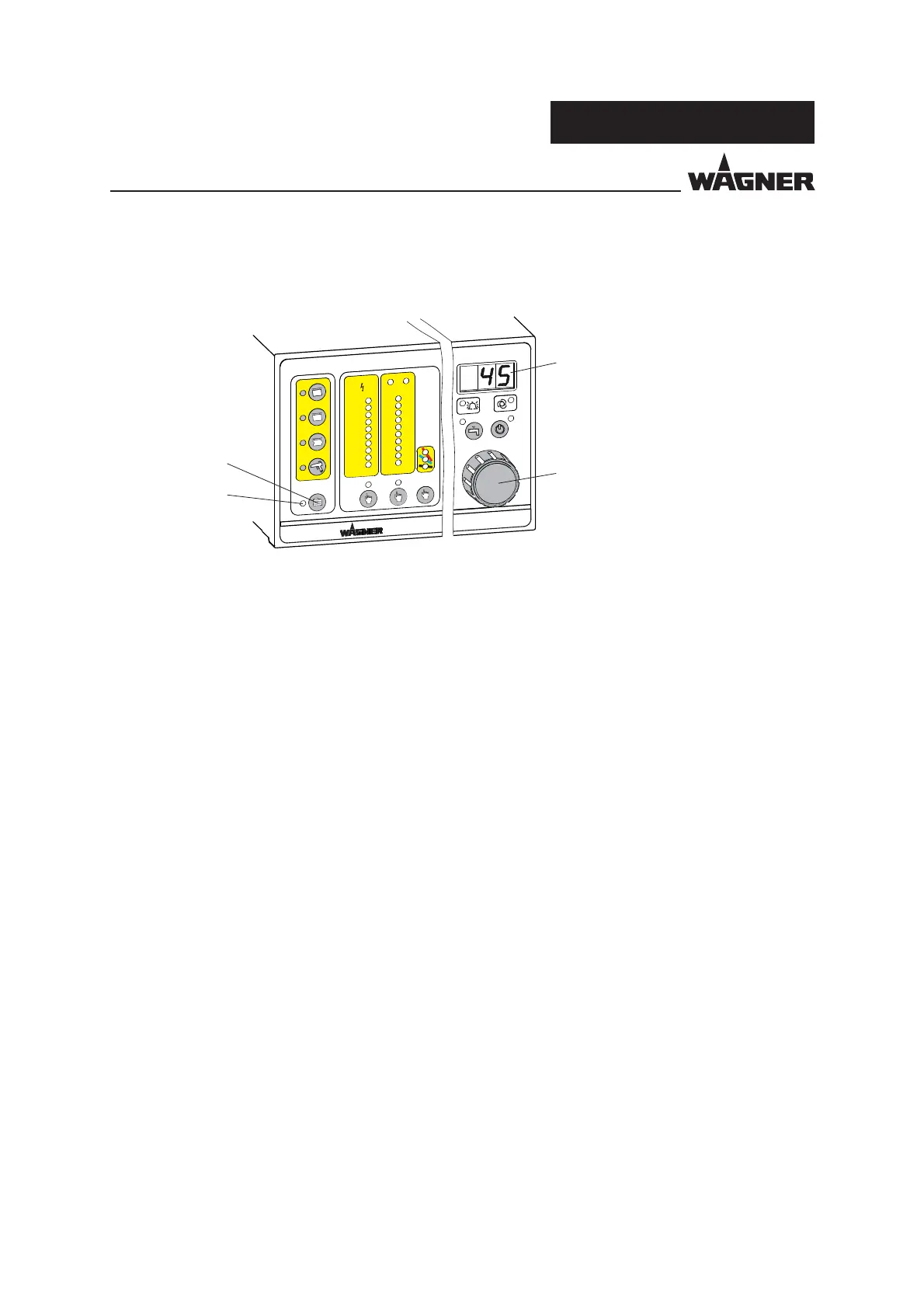

The programs 5 to 50 are selected and saved indirectly. The “additional programs“
button 25 must be pressed fi rst. The yellow “additional programs“ LED 26 then lights up
and the LED display 19 indicates the current program number. The required program can
be set by turning the universal rotary controller 24. In the following example the values in
program no. 10 are to be modifi ed and saved.
Procedure:
1. Select program no. 10.
2. Set the desired values in the program (see chapter 6.5.1-6.5.8).
3. Instead of showing the current program number, the LED display 19 now shows the
modifi ed value.
4. To save the changes, hold down the “additional programs“ button 25 until the previous
program number fl ashes in the LED display 19.
5. To save the values, there are two options:
● To save the program under the currently displayed program number, hold down
the “additional programs“ button 25 for another 2 seconds until the yellow “additional
programs“ LED 26 flashes quickly. The modified values are then saved to the original
program.
● To save the changes under a different program number, use the Universal rotary
controller 24 to select the desired program number, which flashes in the display. To
save the values, hold down the “additional programs“ button 25 for 2 seconds until the
yellow “additional programs“ LED 26 flashes quickly. The changes are then saved to the
selected program number.
