6.5.2 SETTING THE POWDER FEED QUANTITY
When the control unit is in the ready position, the circular light strip 33 shows the set point
as a dot and when powder feeding is switched on it shows the actual value as a bar. The
powder quantity setting as % refers to the percentage distribution between the different
air types.
Example:
A powder quantity of 75% means that 75% of the overall air quantity is fed to the feed air
and 25% to the dosage air. The higher the proportion of feed air, the greater the powder
quantity for a given overall air quantity.
Procedure:

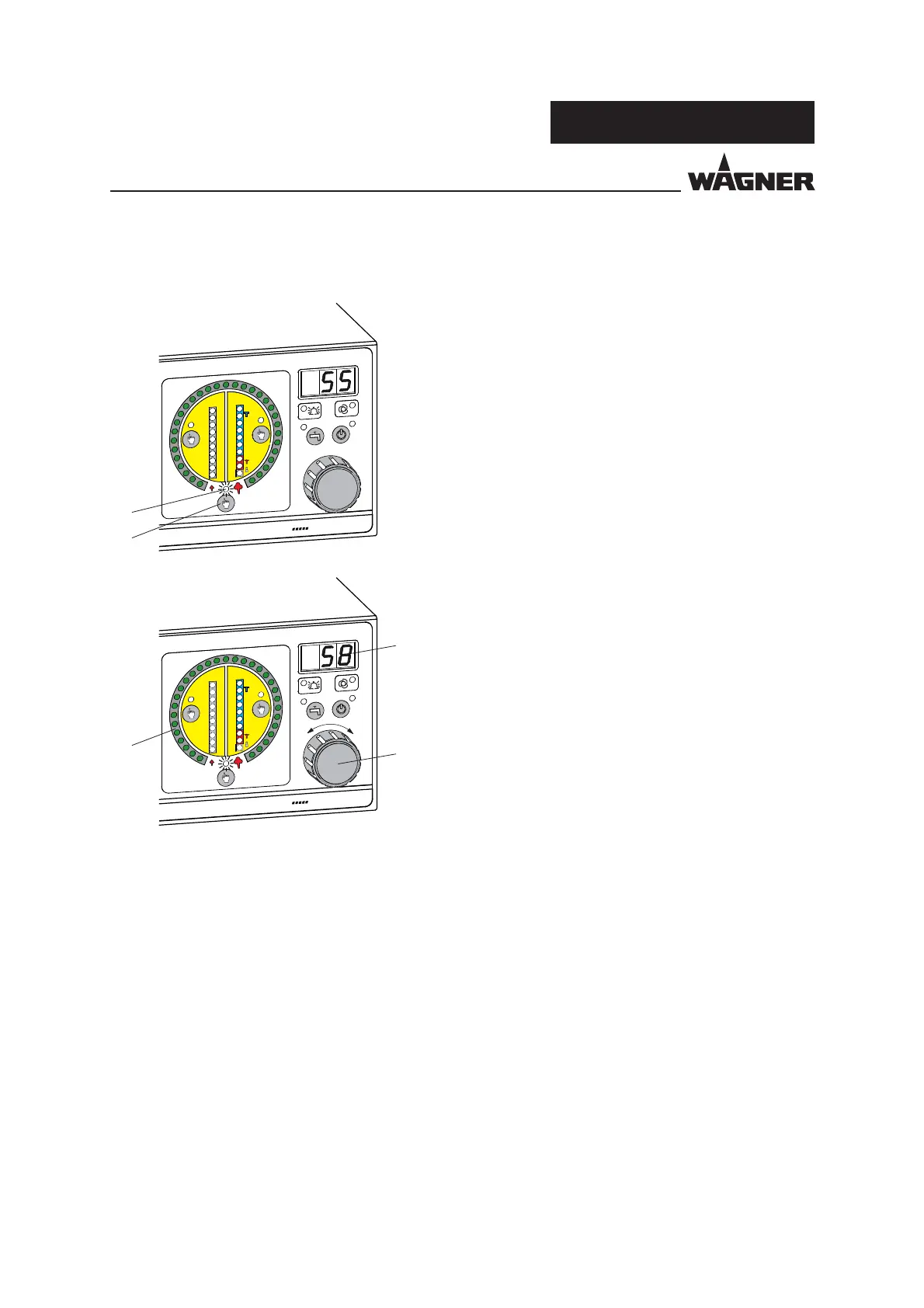

1. Press the “powder quantity“ button 36 to adjust the
powder quantity. The yellow LED 37 indicates that the
powder quantity is selected.
2. The powder quantity can now be adjusted using the
Universal rotary controller 24 between 0% - 100%
with a resolution of 1%. The value is shown in the LED
display 19.
36
37
19
24
33
