40 HC920•HC940•HC960
Starting operation
4. Starting operation
4.1 Swivel mechanism of the material feed
pump
Danger
Be careful, as the moving parts of the swivel
mechanism can crush ngers and feet.

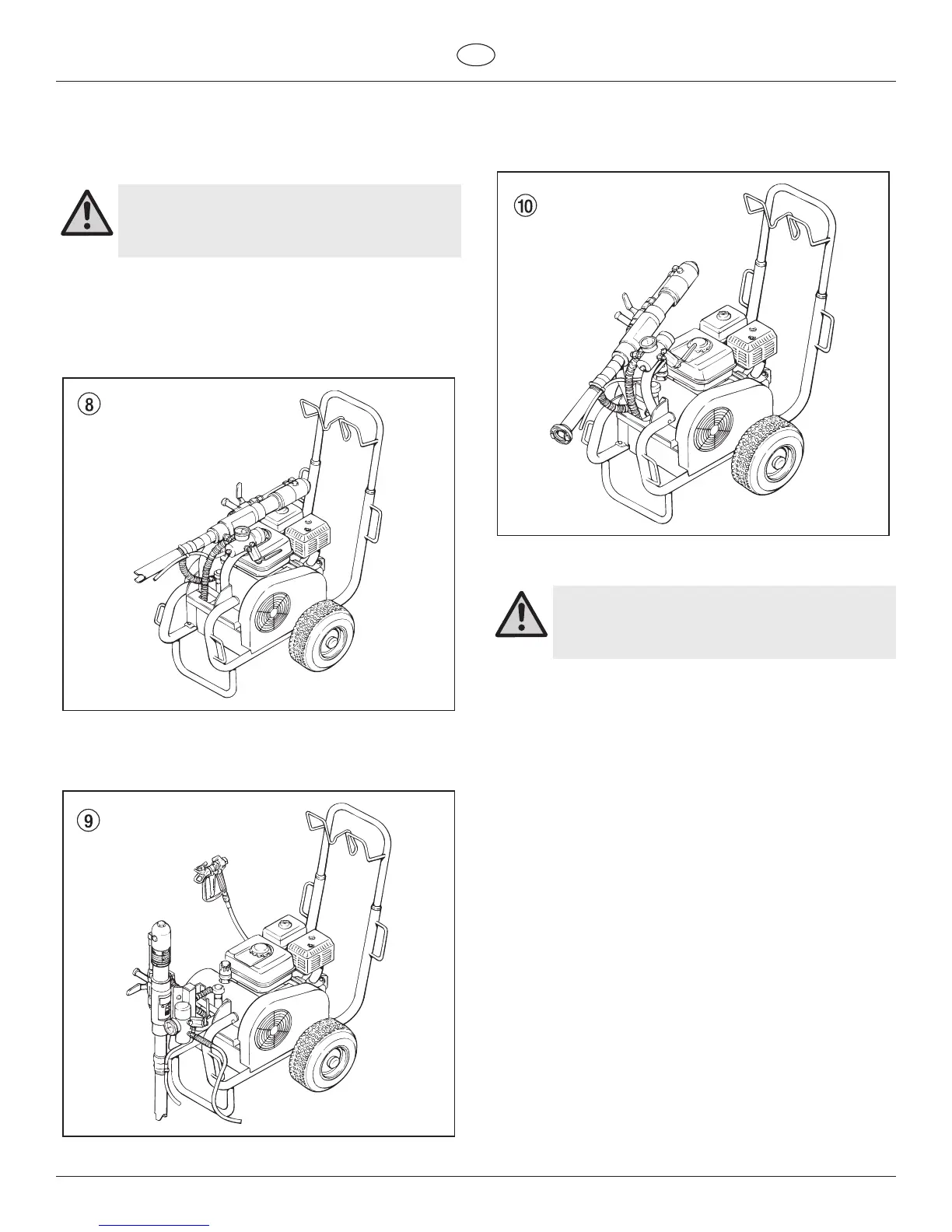

1. Transport position (g. 8)
Transport unit only when the material feed pump is in the
horizontal position.
Swiveling the material feed pump to a horizontal position also
allows removal of the pump from the coating material container.
Ensure that the locking pin locks.
2.0 Operating position I (g. 9)
Swiveling the material feed pump to a vertical position allows
the material feed pump to be immersed in the coating material
container.
2.1 Operating position II (g. 10)
Swivel material feed pump to a slanted (45°) postion if using the
container suction system (accessory). In this position, there is
open space under the material feed pump.
4.2 Changing the material feed pump position
Danger
Be careful, as the moving parts of the swivel
mechanism can crush ngers and feet.
1. Griphandle(g.11,item1)withonehand.
2. Push locking pin (2) with the other hand.
3. Swivel material feed pump up or down to the desired
position, until the locking pin (2) locks into the new
position.
