First start WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0

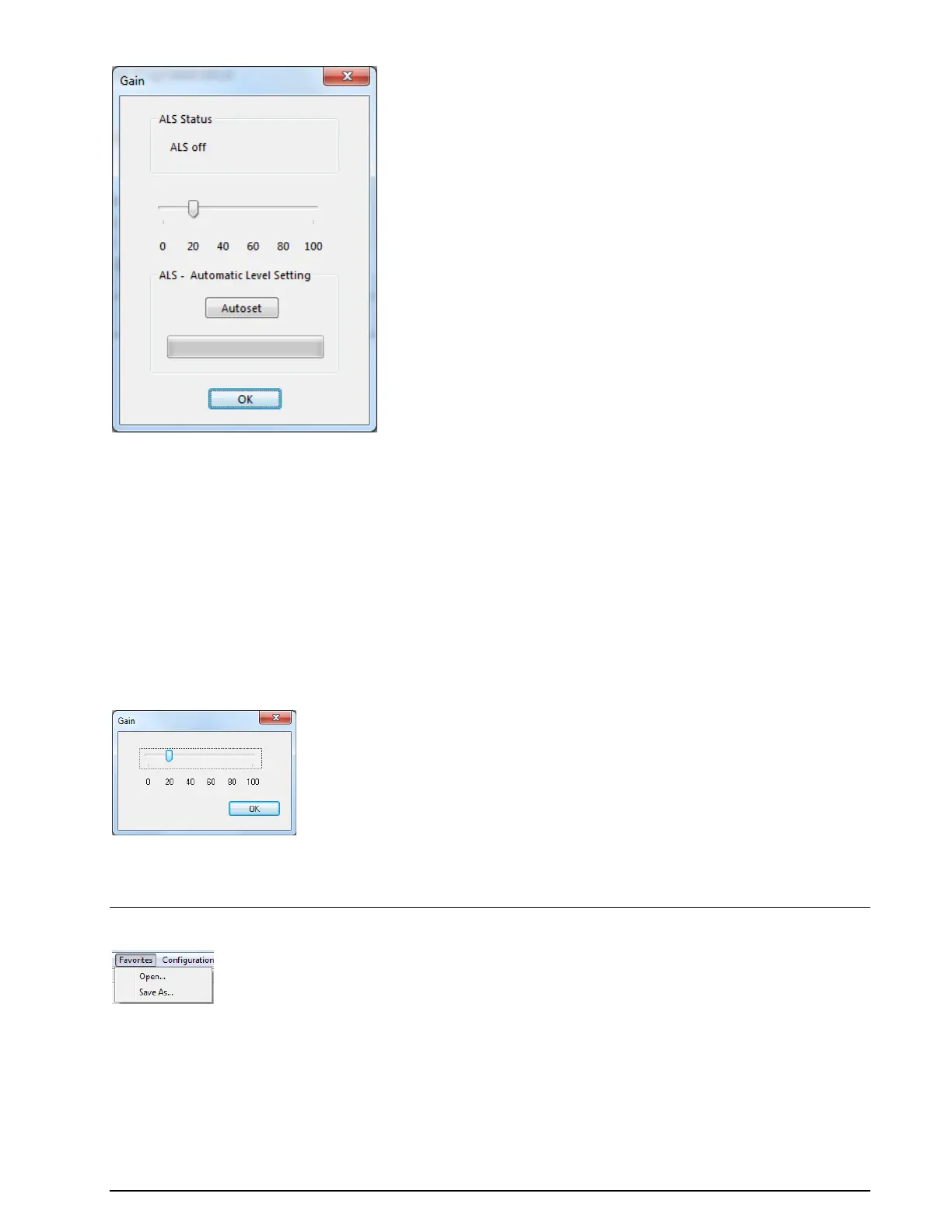

ALS for W-PCI and W-PCIe device.
Click the “Autoset” button, after the adjustment is finished you can adjust the signal level by moving the
level slider. The gain parameters are saved in the system, i.e., it is not necessary to do ALS when the
same signal is connected to one input.
For other audio devices, e.g., soundcards only manual gain adjustment by the slider is available. The input
gain can be adjusted between 0 and 100% of the nominal input sensitivity of the selected input. When the
gain has been adjusted to the desired level, press OK to save the setting.
The adjustment is valid only for the selected input. The gain setting for each input is separately saved in
the application initialization file.
Gain adjustment should never cause the red bars of the level indicator to be lit.
Gain adjustment for soundcard.
Favorites Menu
The Favorites menu lets the user save and reload a mode and its corresponding settings, i.e., mode, al-
phabet, center frequency, baud rate etc. The settings are saved in a *.WFV file.
