Analysis Tools WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0

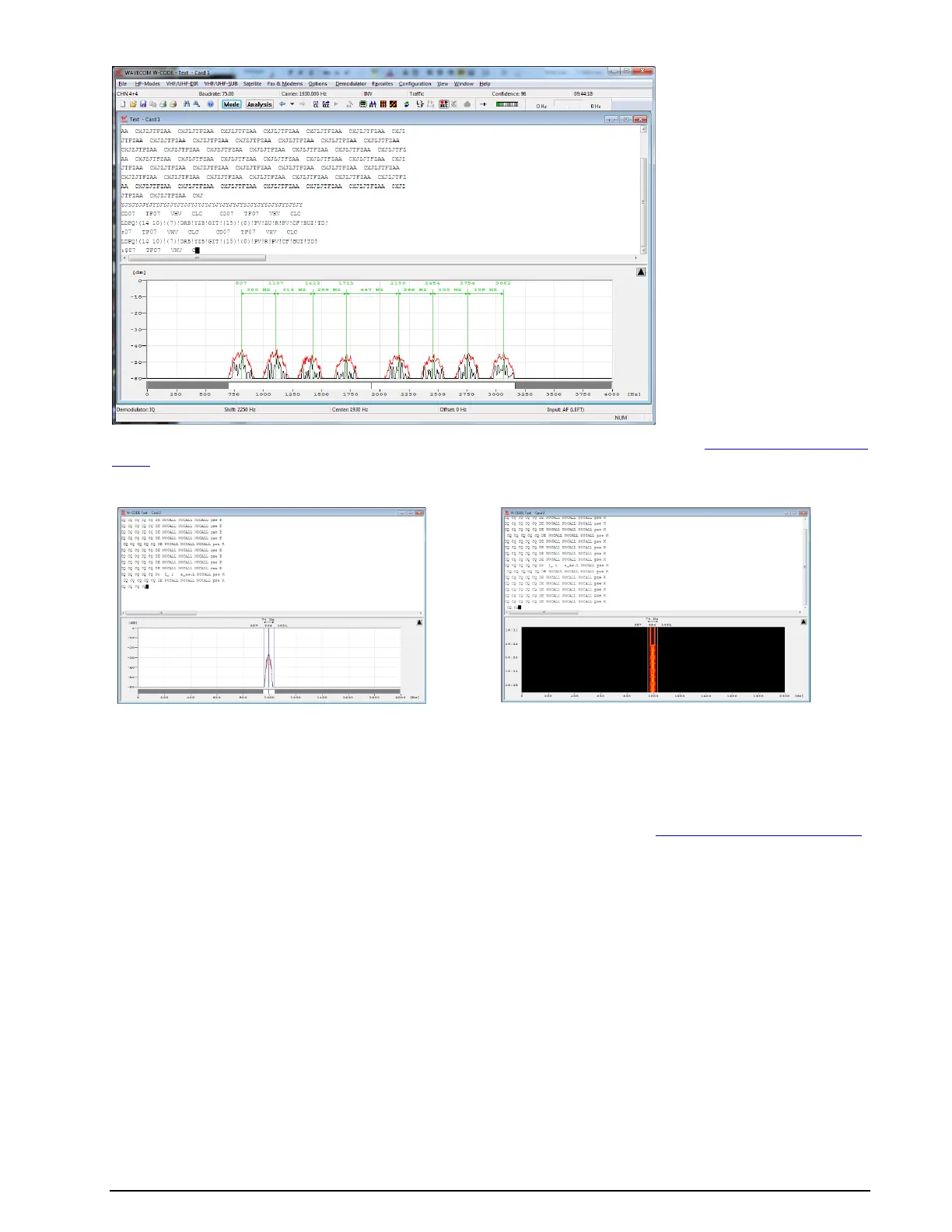

These options can be set using the right mouse button or the context menu (see “FFT/Sonagram Context
Menu” on page 72). It is possible to remove the tuning FFT or Sonagram in the View Menu.
Tuning PSK Signals
The upper and lower frequency boundaries of the signal is selected with the right and left cursor. With the
center cursor, the center frequency may be set more precisely. The precision of the center frequency is
very important and directly influences the performance of the decoder.
After every change, the center frequency is automatically updated and the bandwidth of the signal is set
according to the received mode.
Options can be set using the right mouse button or the context menu (see “FFT/Sonagram Context Menu”
on page 72). It is possible to remove the tuning FFT or Sonagram in the View Menu.
