15 | Technical data
34 / 37 5111967A OI-II Webasto Unite
15 Technical data
15.1 Model description
Product
Type
Electric Vehicle Conductive Charging System
(Mode 3 Charging Station)
Model
Name
Webasto Unite * * * * *
1st Asterisk (*) : Rated Power
AC22: 22 kW (3-phase Supply Equipment)
2nd Asterisk (*) RFID reader is standard equipment for all
model variants:
– SW: Smart Board with Ethernet Port + Wi-Fi module
with hotspot
3rd Asterisk (*) : Can be one of the following:
– 0 : No Display
4th Asterisk (*) can include combinations of the following:
– MID: Charging station with MID meter
– EICH: Charging station with Eichrecht meter
5th Asterisk (*) can be one of the following:
– SO: with normal socket
– SH: with shuttered socket

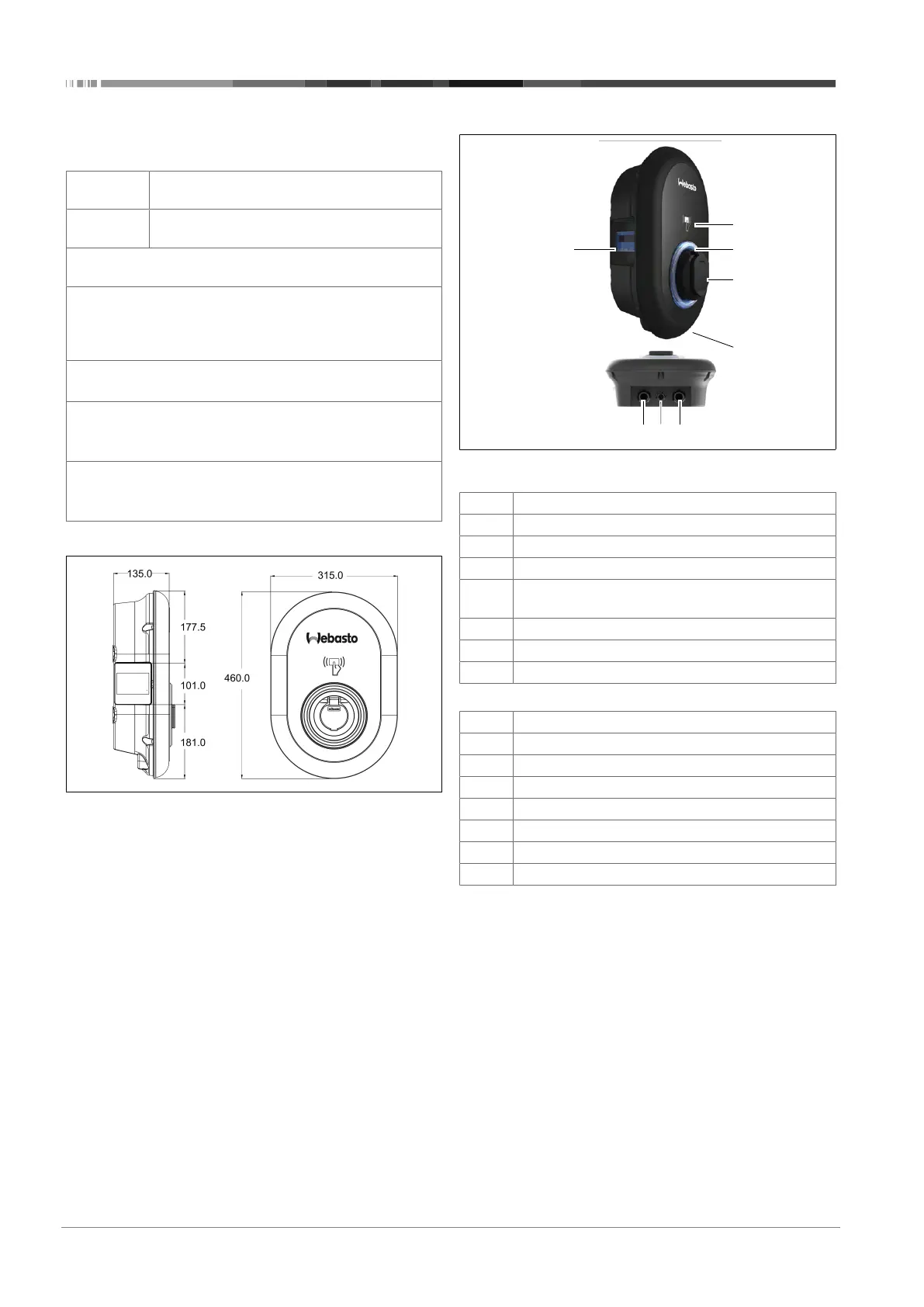

15.2 Dimensional drawings
Fig.74
15.3 Models
1
3
4
5
2
6 7 8
Fig.75
MID Model
1
RFID card reader (Radio Frequency Identification)
2
Status indicator LED
3
Socket outlet with shutter
4
Product label
5
MID meter display (Measuring Instruments Directive
2014/32/EU)
6
Charging station supply inlet gland nut
7
Charging station communication cable gland nut
8
Charging station communication cable gland nut
Eichrecht model
1
RFID card reader (Radio Frequency Identification)
2
Status indicator LED
3
Socket outlet with shutter
4
Product label
5
Eichrecht meter display
6
Charging station supply inlet gland nut
7
Charging station communication cable gland nut
8
Charging station communication cable gland nut
