Scope of delivery | 4
5111967A OI-II Webasto Unite 7 / 37

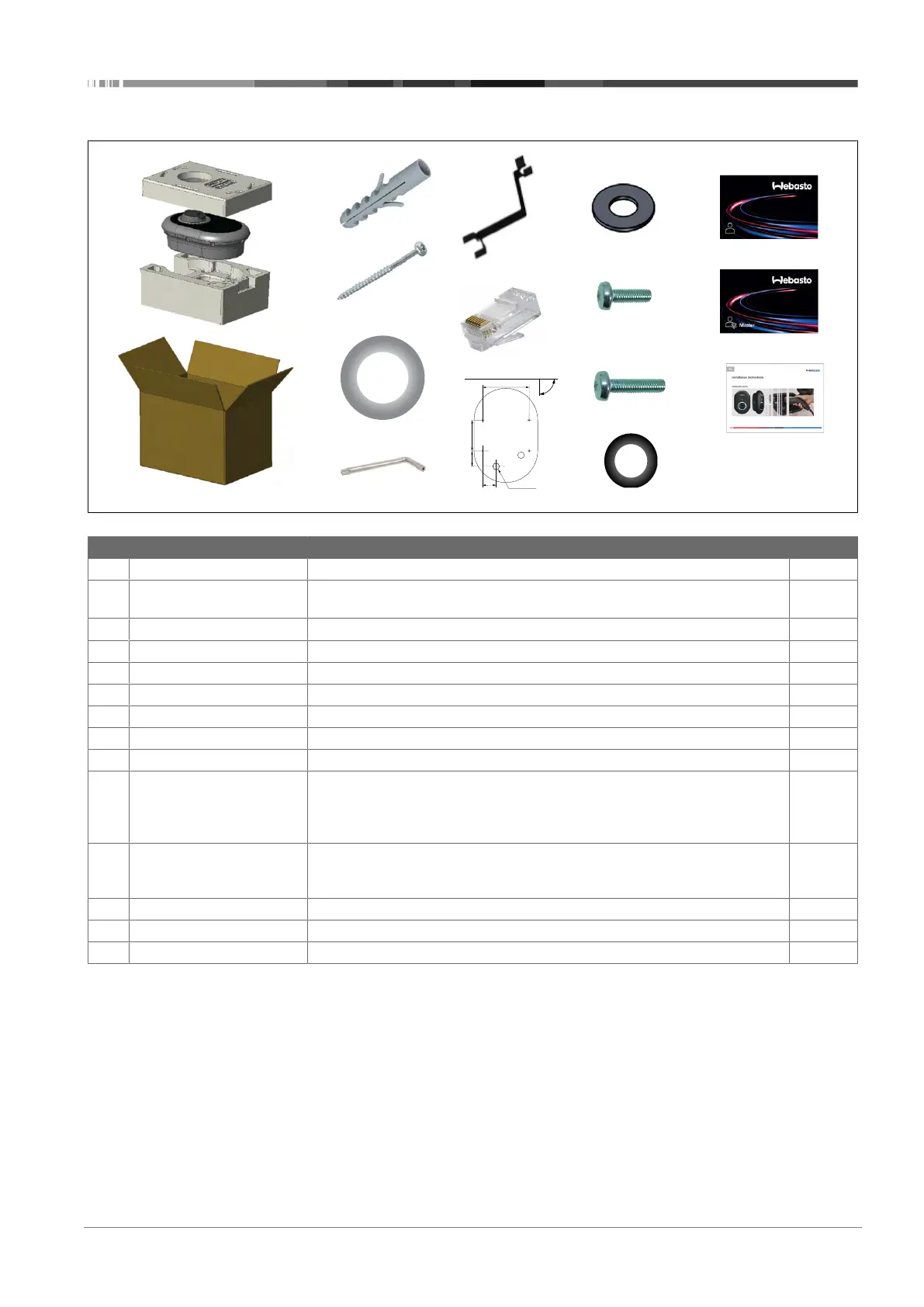

4 Scope of delivery
65,50
75,00
150,00
226,00
90º
USE Spirit level for alignment
Cable outlet
Print scale 1/1
1
2
3
4
5
6
7
8
9
10
11
14
13
12
Fig.1
Pos. Item(s) Usage Quantity
1
Dowels (M8 x 50, plastic) To mount the charging station on the wall.
4
2
Torx T25 security screw (M6
x 75)
To mount the charging station on the wall.
4
3
Gasket for screw (6 x 75) To mount the charging station on the wall with the correct IP.
4
4
Torx T20 security L‑wrench Wrench for screws to mount the charging station on the wall with the correct IP.
1
5
Wrench To fasten and unfastening the cable glands.
1
6
RJ45 Male connector LAN cable connection (optional).
1
7
Mounting template To mount the charging station to a wall.
1
8
O-ring To mount the charging station to a pole.
3
9
Screw (M6 x 20) To mount the charging station to a pole.
3
10
Screw (M6 x 30) To mount the charging station, and providing earth continuity for chargers
mounted on a metal surface. This screw must be inserted into the bottom hole of
charging station on the wall. Place a rubber ring (11) below this screw to fix the
ground cable.
1
11
IP Rubber To fix the ground cable with the M6 x 30 screw. This rubber ring must be placed
right-down the wall-mount hole of charging station, under the ground cable and
the M6 x 30 screw.
1
12
User RFID Card To start and stop charging.
2
13
Master RFID Card To add and remove user RFID Cards to and from the local RFID list.
1
14
ISI Webasto Unite To install the charging station safely and adequately.
1
