• Coaxial: Coaxial connectors, a type of pressure connector in this case, are
components attached to the ends of a coax cable—they make it possible to connect
to other devices. The connector has a wire conductor in the center, surrounded by
an outer conductor, and an insulation between the two. In this device, the coaxial
connector connects the antenna to the wireless radio board.

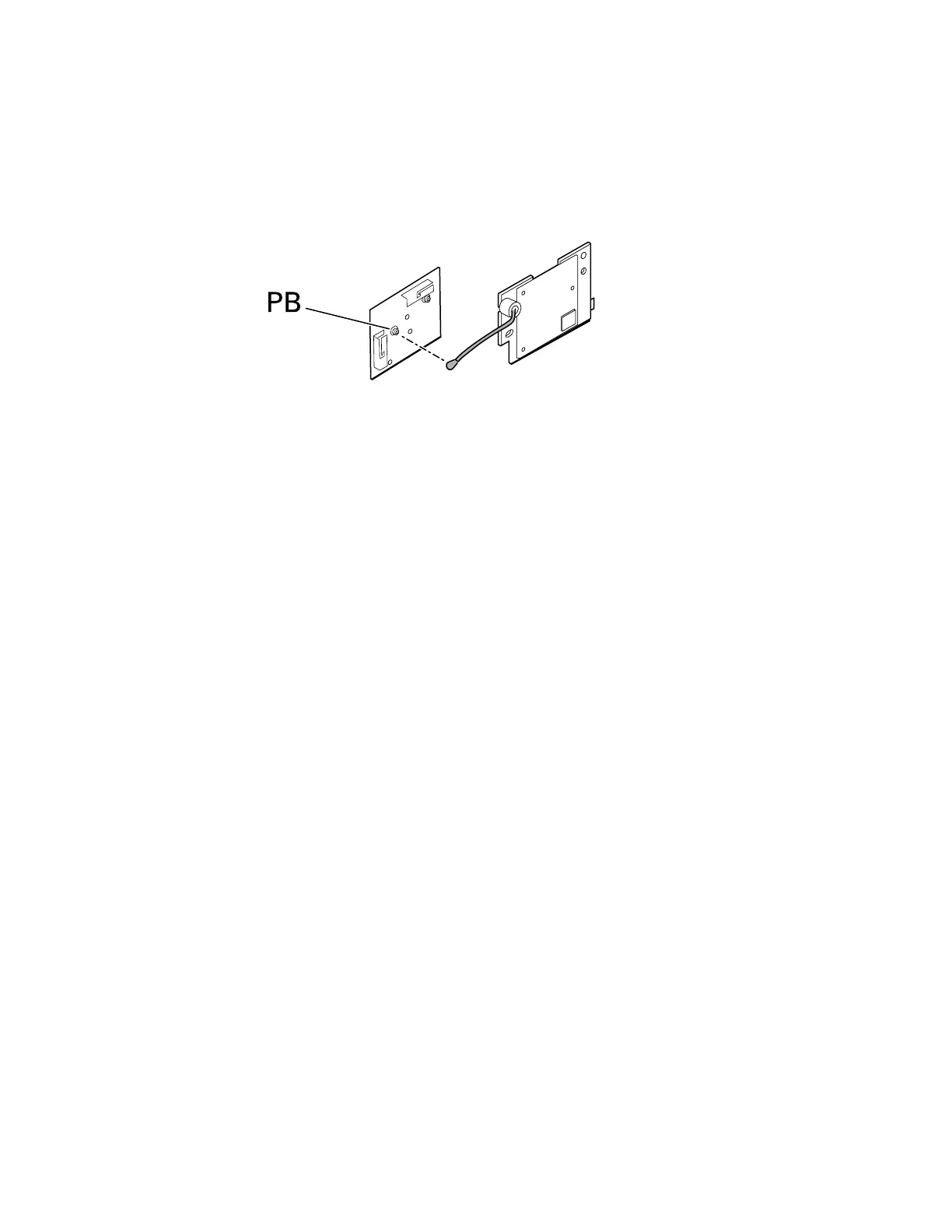

Note This connector is labeled PB because of its location on the
wireless radio board.
To remove a coaxial connector, lift the connector away from the board.
To connect a coaxial connector, align the connector over the mount on the board and
press to snap it into place.
Service manual Disassembly and repair 47
