44 Printing 226-Hz results Welch Allyn MicroTymp3 portable tympanometric instrument
Low Peak Height, Large Ear Volume
Tympanogram Is Wide
Negative Tympanometric Peak Pressure
Positive Tympanometric Peak Pressure
High Peak Height
Normal Tympanogram
The computer scans the list of messages and prints the first message that applies. The
hierarchy is arranged so that the most clinically-important message is displayed first.
Select printout formats

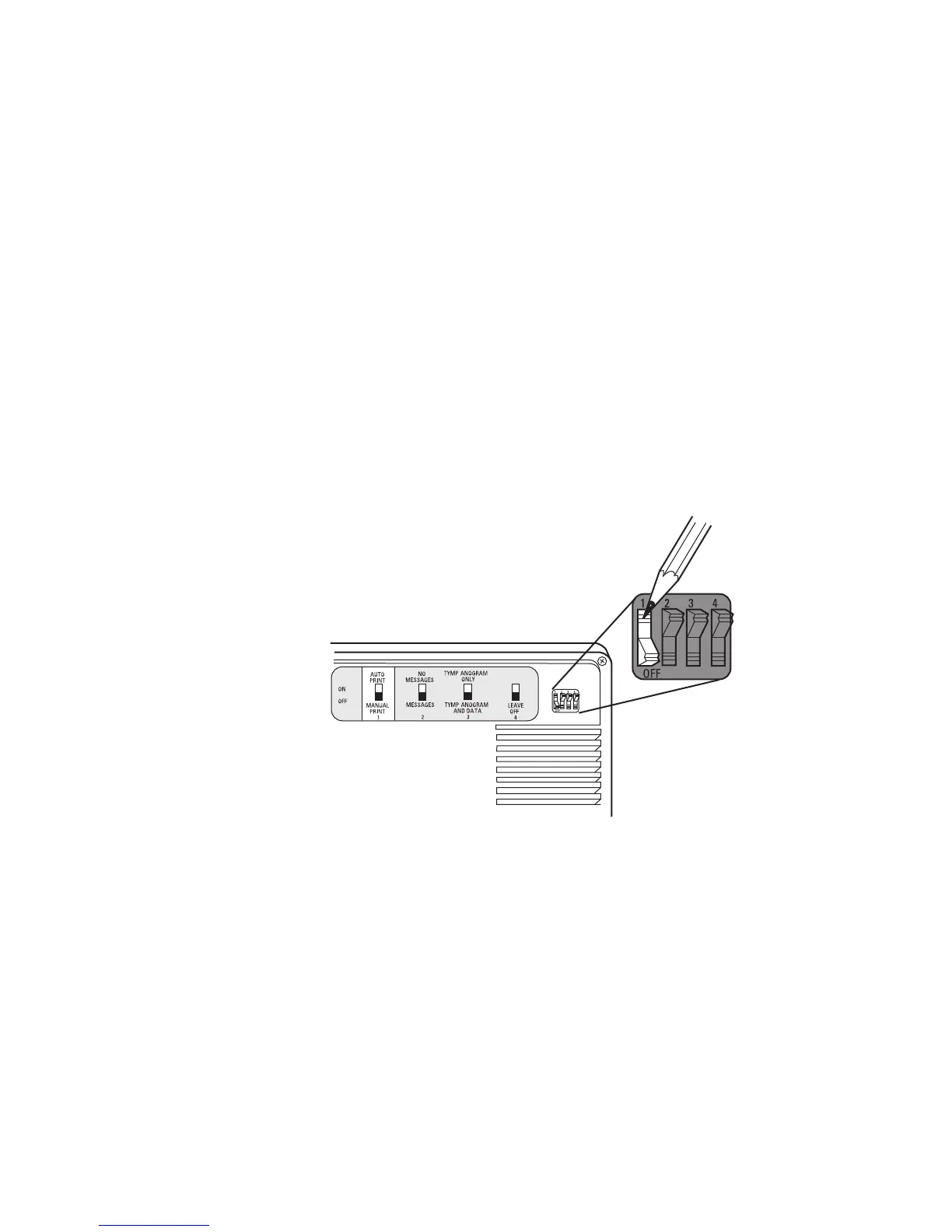

The four switches used to select the printout format and printer mode of operation are
located on the bottom of the Printer/Charger.
Use a pointed object to depress appropriate ON or OFF portion of the switch.
