Westinghouse TX-42F810G User Manual

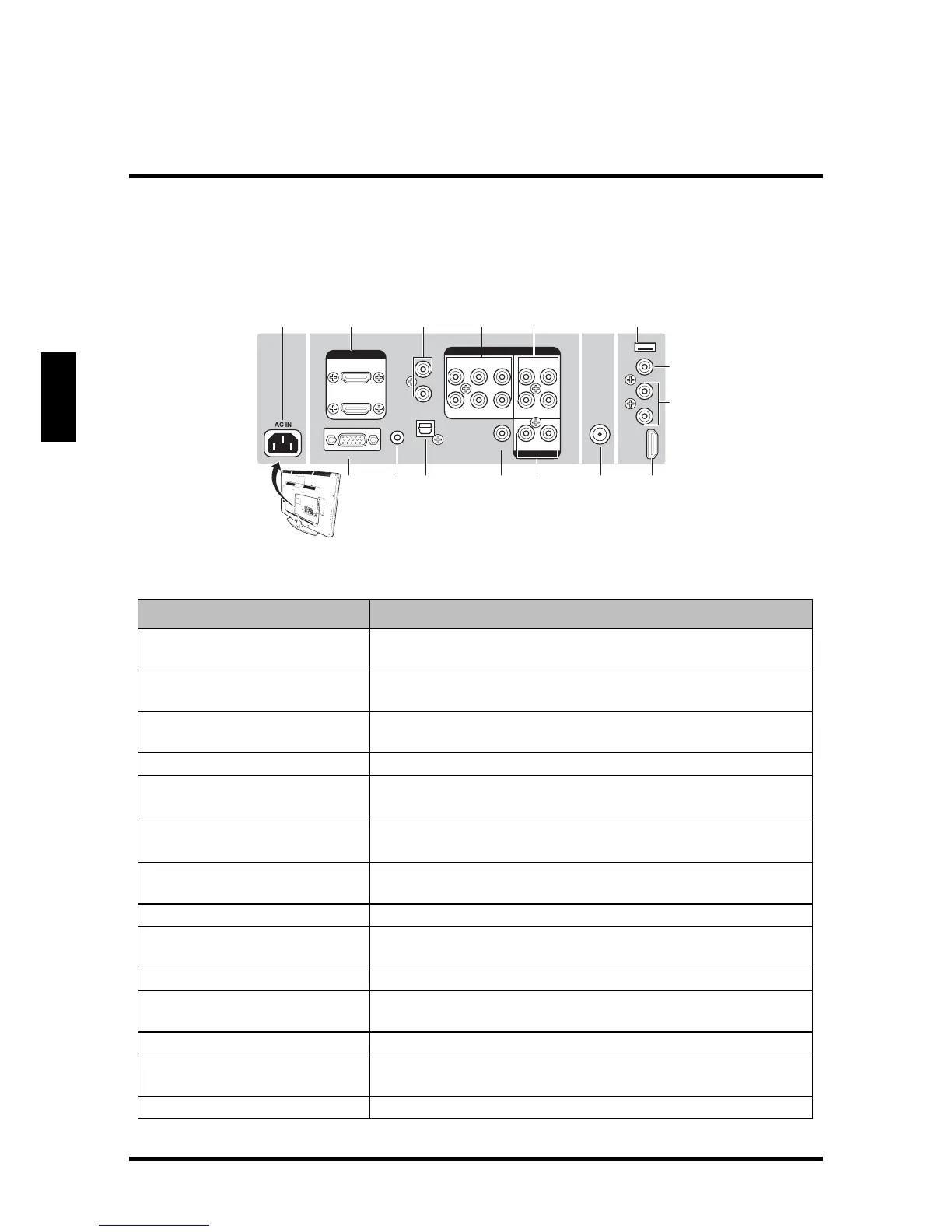

TERMINALS
12
English
TERMINALS
U
S
B
L
R
H
D
M
I
C
O
M
P
O
N
E
N
T
P
C
/
V
G
A
P
C
A
U
D
I
O
S
P
D
I
F
O
U
T
Y
P
b
P
r
L
R
L
R
HDMI
COMPONENT
AUDIO
PC / VGA
PC AUDIO
SPDIF OUT
Y
Pb Pr
Y Pb Pr
L R
LR
AV1 LR
USB
AV 2LR
HDMI
1 2 8 125 7
13
14
10 2116 943
Item Function
1. AC in
Connect the power cord from this outlet to a
power source.
2. HDMI
Connect to an external video device such as a
DVD player, game system, cable, or satellite box.
3. PC/VGA
Using a 15-pin VGA cable, connect to a computer
or other device with a VGA output.
4. PC Audio in Connect to the audio out port of a computer.
5. AUDIO OUT-STEREO
Connects to the AUDIO (R/L) input jacks on
external AV equipment.
6. SPDIF (optical) audio
out
Connect this output to an external digital audio
receiver.
7. YPbPr input
Connect an external video device with component
output to these jacks.
8. YPbPr audio input Connect an external audio source.
9. Composite video input
Connect to an external video device with an
analog signal such as a VCR.
10. AV audio input Connect this input to an external audio source.
11. TV tuner
Connect the LCD TV to an antenna or cable
service.
12. USB Service port For service only.
13. Composite video
input AV2
Connect to an external video device with an
analog signal such as a VCR.
14. AV2 Audio input Connect this input to an external audio source.
