Windsor chariot iExtract CE24 User Manual

MAINTENANCE–CIRCUIT PROTECTION
86037880 CHARIOT EXTRACTOR 01/16/07
4-13

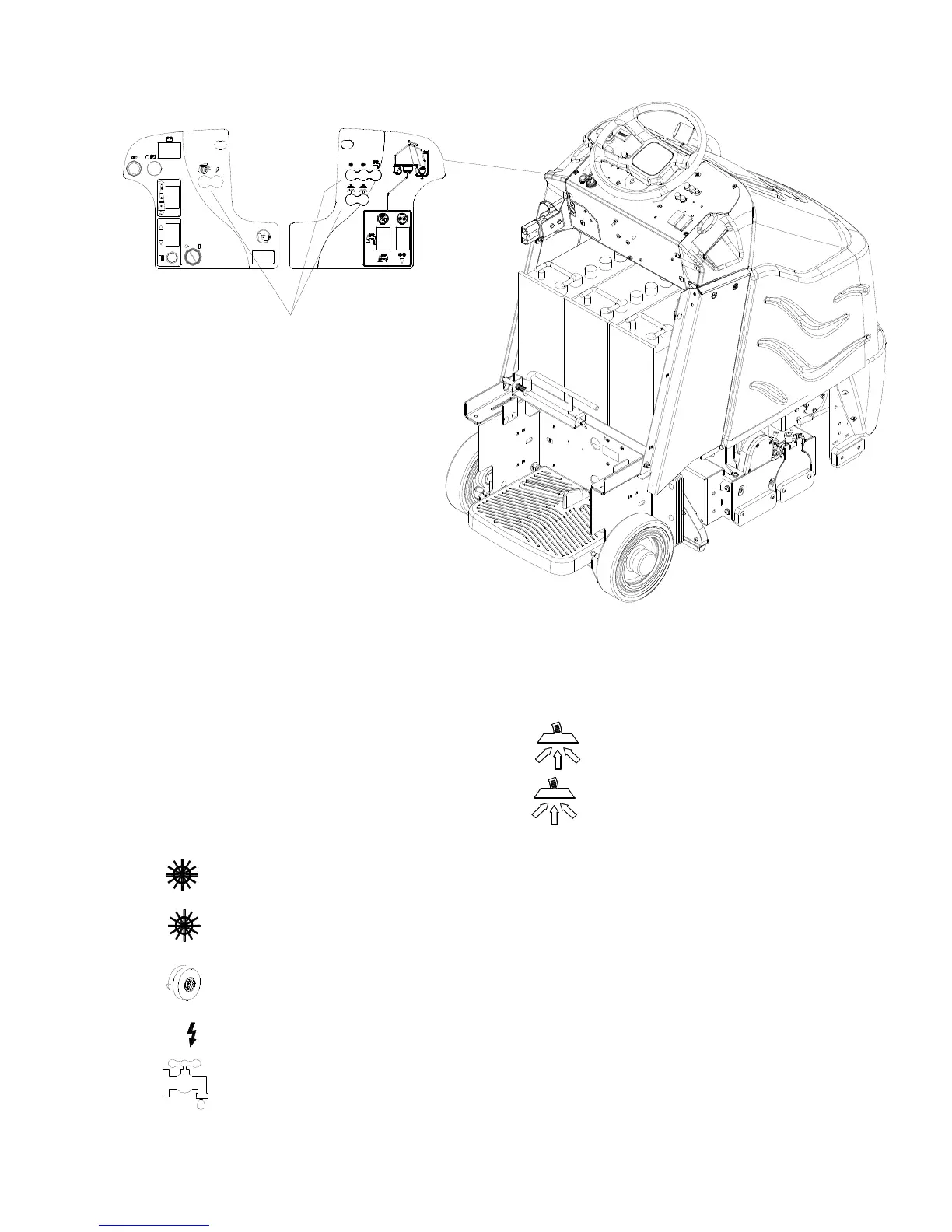

1. CIRCUIT BREAKERS
Circuit breakers interrupt the flow of power in the
event of an electrical overload. When a circuit
breaker is tripped, reset it by pressing the
exposed button. If a circuit breaker continues to
trip, the cause of the electrical overload should
be found and corrected.
25 Amp. Protects the left scrub
brush motor.
25 Amp. Protects the right scrub
brush motor.
30 Amp. Protects the propel
motor.
3 Amp. Protects the machine
controls.
3 Amp. Protects the pump.
30 Amp. Protects the left vacuum motor
circuit.
30 Amp. Protects the right vacuum
motor circuit.
CIRCUIT BREAKERS
