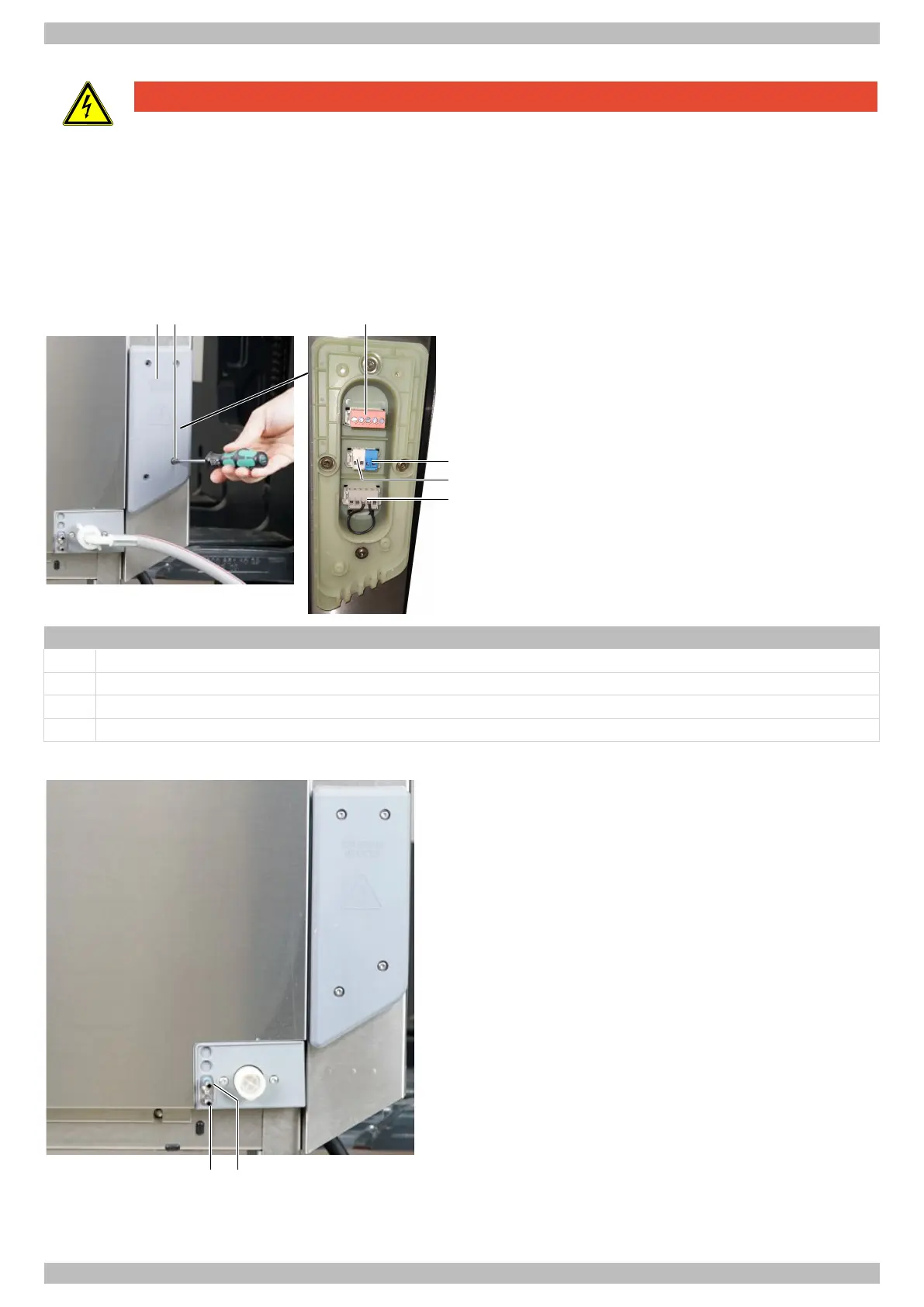

5.3 Multifunction interface overview
Danger
Electric shock from live components
A fatal electric shock can occur when the warewasher and its additional devices are connected to the elec-
trical mains supply.
Ø The warewasher and its additional devices may be connected to the electrical mains supply only by a
specialist company registered within the electrical trade and approved by the energy supplier.
Ø All locally applicable standards and regulations must be observed during the connection to the electrical
mains supply.
Ø When performing installation and maintenance work as well as repairs, unplug the warewasher from the
mains supply. Check that there is no voltage present.
Ø Loosen screws (2) and remove the cover (1).
Item Name
3 Transfer strip for external dosing devices
4 Terminals for suction tube rinse aid
5 Terminals for suction tube detergent
6 Terminals for external energy management system in accordance with DIN 18875 (optional)
5.4 Mechanically connecting suction tubes
Ø Fasten the hose of the rinse aid suction tube to the con-
nection (1) using a wire hose clip.
Ø Fasten the hose of the detergent suction tube to the
connection (2) using a wire hose clip.
