BALANCED FLUE OPTIONS
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18-18/25-25/32
8 716 113 389d (03/2010)
18
PRE -
INSTALLATION

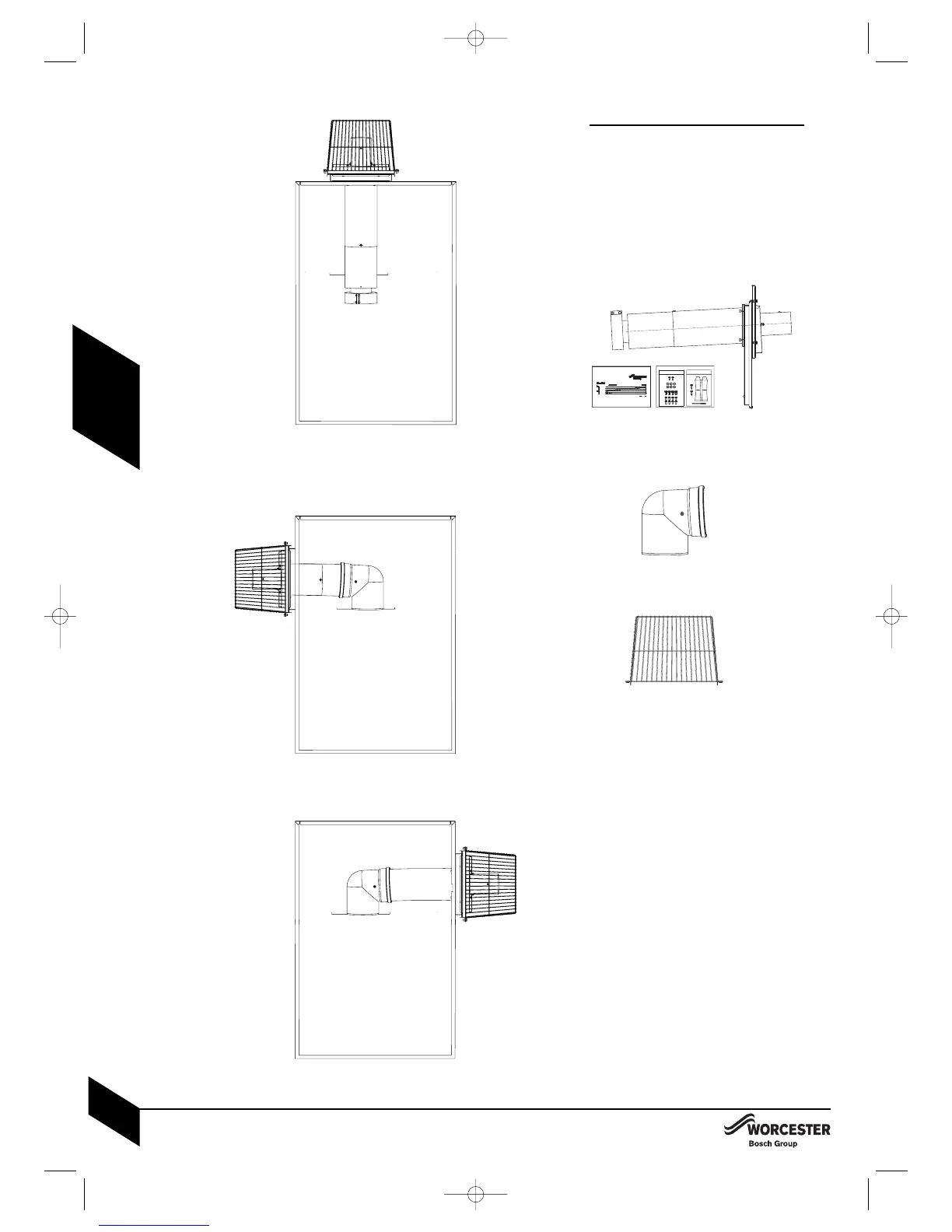

CABINET MOUNTED BALANCED
HORIZONTAL FLUE OPTIONS
• The horizontal flue is fitted to the rear or
either side of the cabinet.
IMPORTANT:
It is strongly recommended that the flue
terminal faces away from walls to
minimise the occurrence of wetting.
A - External horizontal flue kit
Part No. 7 716 190 084
B - 90° inline elbow 80/125mm
Part No. 7 716 190 034
C - Stainless steel terminal guard
Part No. 7 716 190 050
NOTE: The flue terminal and services duct must
not exit through the same panel.
FRONT
FRONT
FRONT
Plan
view
Plan
view
Plan
view
REAR FLUE OUTLET
A + C
LEFT HAND FLUE OUTLET
A + B + C
RIGHT HAND FLUE
OUTLET
A + B + C
