REFITTING COMPONENTS
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18-18/25-25/32
8 716 113 389d (03/2010)
27
INSTALLATION
REFITTING COMPONENTS

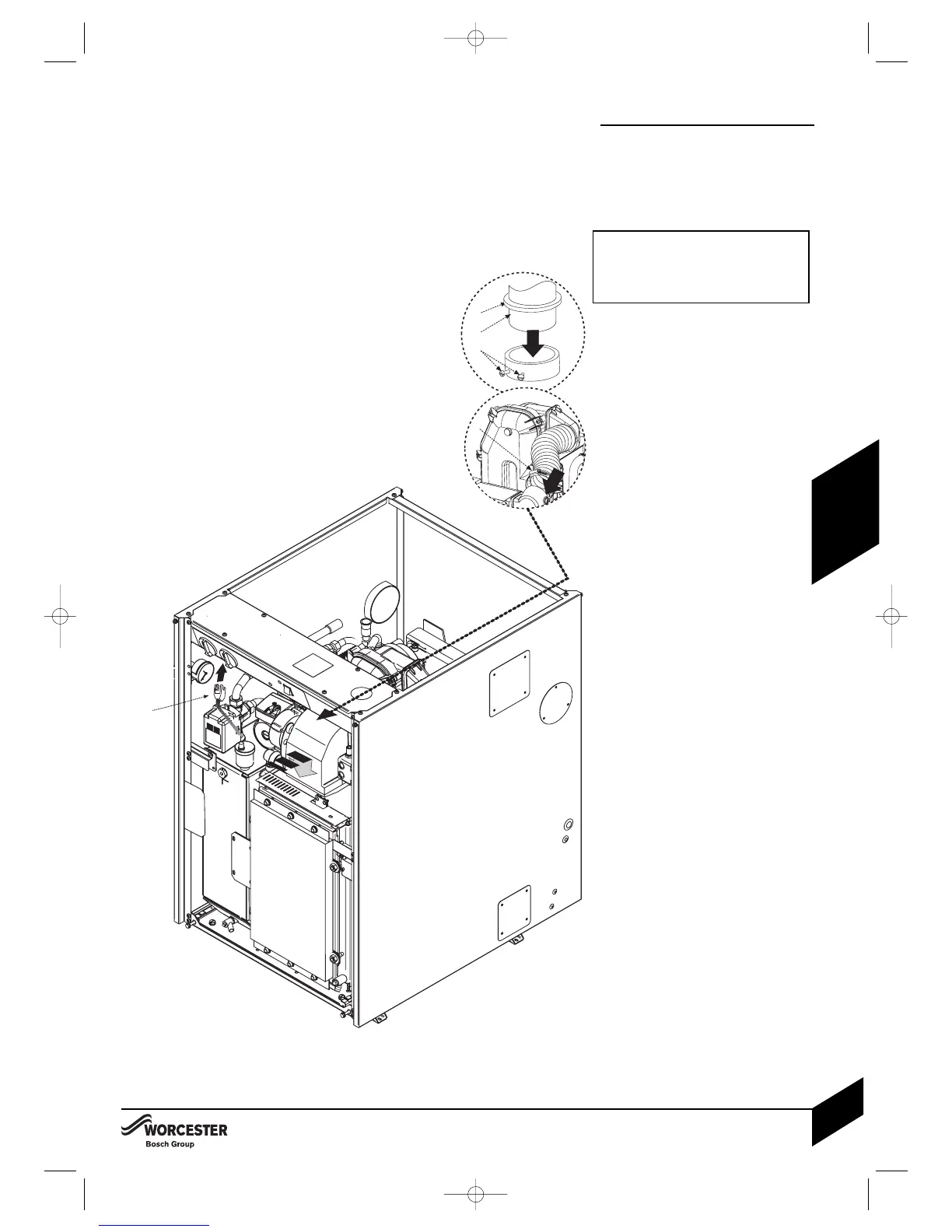

1 Align burner combustion head (A) into boiler
housing tube with gasket (B) correctly fitted.
 Push firmly down to compress the gasket (B).
 Tighten burner retainers (C) sufficiently to
ensure a good seal.
IMPORTANT: Ensure the gasket is a good
seal between the burner combustion head
and the boiler housing to prevent flue gases
escaping from the combustion chamber
into the cabinet.
 Attach the flexible air duct and tighten
clamp(D) to secure to the burner air intake.
2 Plug burner lead (E) into control box (F).
F
A
B
C
D
E
