RIELLO RDB 1 burner

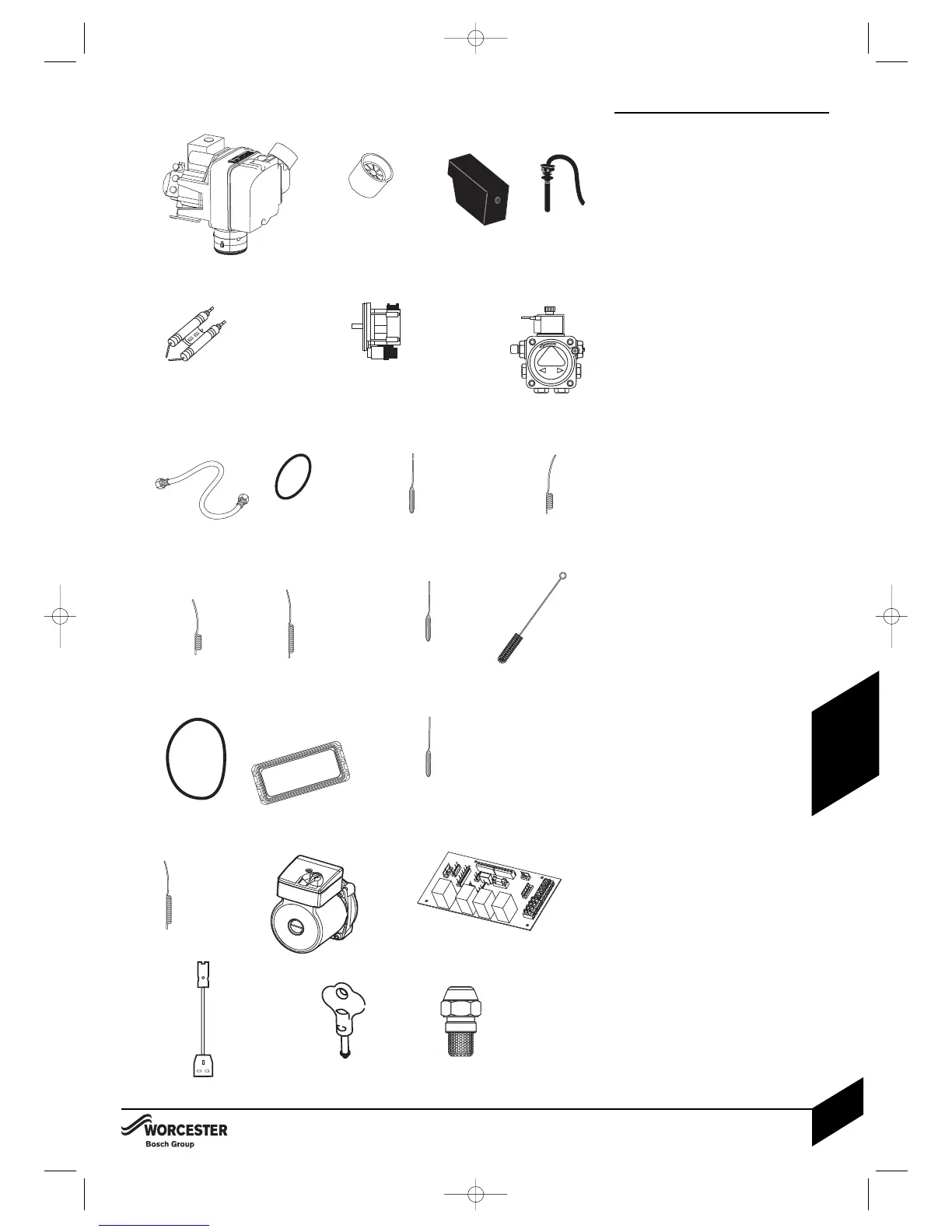

SHORT PARTS LIST 12/18
1 Burner - Riello RDB 1 12/18
Part Number: 8 718 685 873 0
2 Combustion head - LD2SX (Short)
Part Number: 8 718 685 902 0
3 Control box MO535
Part Number: 8 718 682 250 0
4 Photocell
Part Number: 8 716 109 193 0
5 Ignition electrode
Part Number: 8 716 109 183 0
6 Motor
Part Number: 8 716 109 186 0
7 Oil pump - Riello RDB
Part Number: 8 716 115 297 0
8 Flexible oil hose kit
Part Number: 8 716 115 312 0
9 Burner 'O' ring gasket
Part Number: 8 718 682 439 0
10 Heating control thermostat
Part Number: 8 716 107 621 0
11 Auto reset High Limit thermostat
Part Number: 8 716 107 640 0
12 Manual reset Boiler thermostat
Part Number: 8 716 107 625 0
13 Manual reset flue thermostat
Part Number: 8 716 107 624 0
14 DHW control thermostat
Part Number: 8 718 685 283 0
15 Cleaning brush
Part Number: 8 716 109 428 0
16 Manifold access cover seal
Part Number: 8 716 107 536 0
17 Secondary Heat Exchanger gasket
Part Number: 8 716 112 954 0
18 Frost thermostat
Part Number: 8 716 142 393 0
19 Manual reset tank thermostat
Part Number: 8 718 685 269 0
20 Circulation pump UPS 15-60
Part Number: 8 718 685 525 0
21 Control board
Part Number: 8 718 685 261 0
22 Service lead
Part Number: 8 716 113 483 0
23 Spare 1/4 turn cabinet key
Part Number: 8 716 114 013 0
24 Oil nozzle
0.35 80° SR (12kW output)
Part Number: 8 716 112 628 0
0.45 60° ES (15kW output)
Part Number: 8 716 156 679 0
0.5 60° ES (18kW output)
Part Number: 8 716 156 671 0
SHORT PARTS LIST
RIELLO RDB 1 - 12/18
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18-18/25-25/32
8 716 113 389d (03/2010)
