7.11 Cleaning the Printer 207
Feed Rolls for the Trays 1 - 4

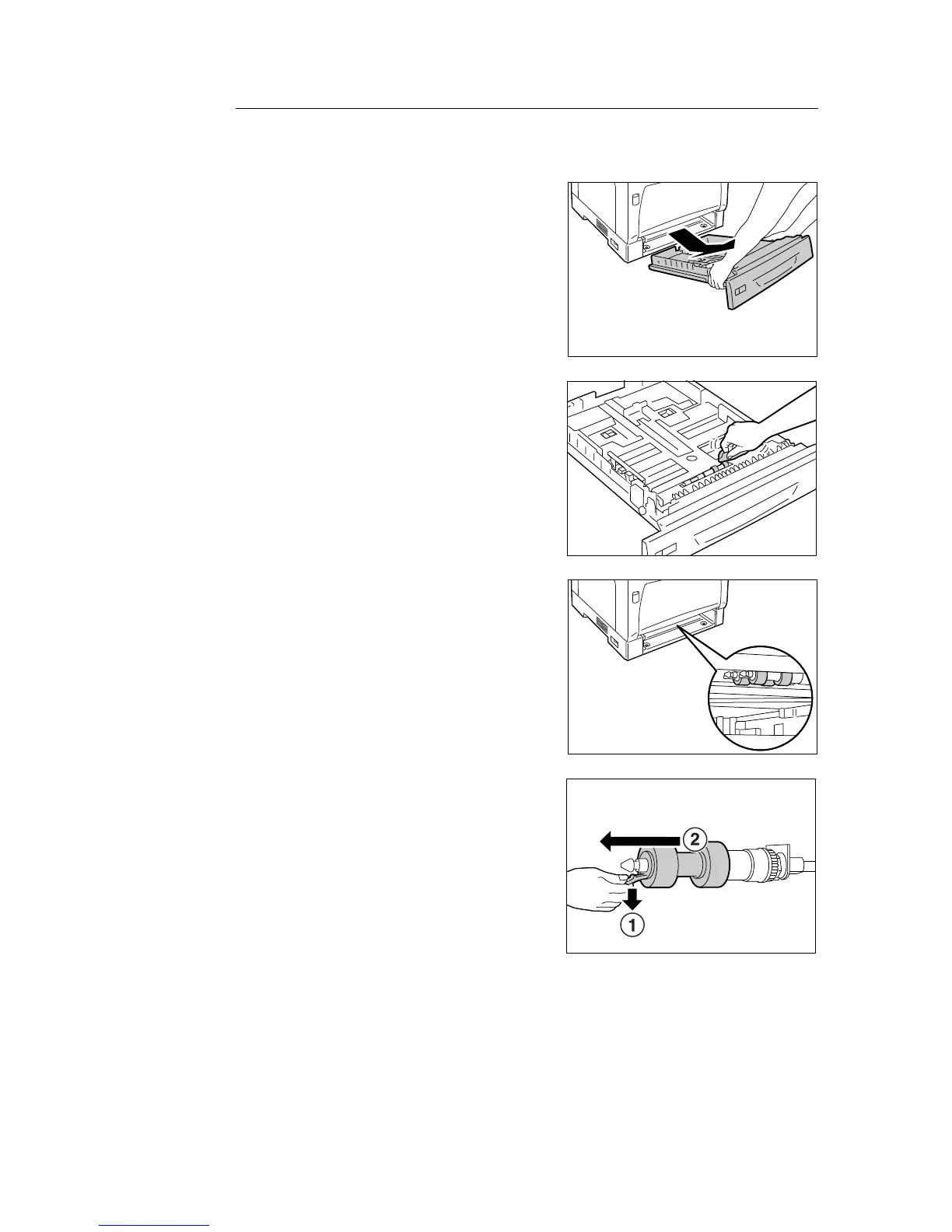

The following explains how to clean the feed rolls for the tray 1. The procedure is the same
for all trays.
1. Pull out the tray until it stops. Hold the tray
with both hands, lift it up slightly, and then
pull it out completely.
2. While rotating the feed roll, wipe the rubber
part with a soft, firmly wrung cloth
moistened with water.
3. Clean the feed rolls inside the printer. First,
identify the location of the feed rolls. There
are two orange feed rolls on the upper side
of the tray slot.
4. Remove the tab of the feed roll on the front
shaft to unlock the feed roll, and pull the
feed roll out of the shaft.
5. Remove the feed roll from the back shaft in
the same manner.
To Next Page
