Xerox Phaser 3155 Service Manual

7-6 Phaser 3140/3155/3160 Printer Service Manual
Cleaning and Maintenance
Using a Network Connection
1. Ensure the printer is connected to the computer with a network connection.
2. Verify that you have downloaded the *.fls file.
3. Open a web browser.
4. Enter the printer’s IP address.
5. The CentreWare IS window is displayed.
6. Click the Print tab.

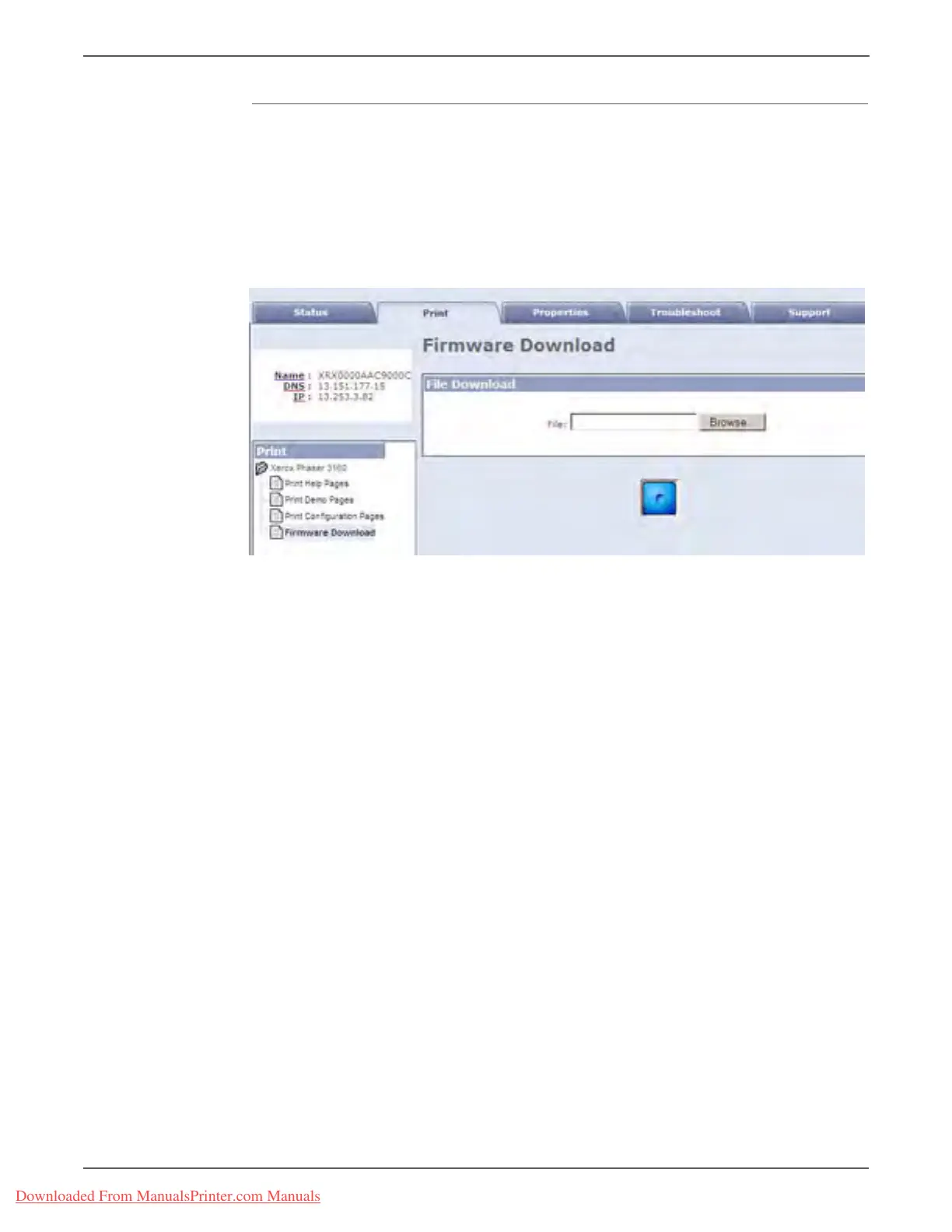

7. On the left side, click Firmware Download.
8. Click the Browse button and locate the “*.fls” file on your computer.
9. Select the “*.fls” file and click Open.
10. Click the Blue button to start the firmware update process.
11. A processing window is displayed.
12. Click OK to close the status window when the firmware upgrade is complete.
13. Print a Configuration page and verify the firmware information.
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3155 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	12000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 105 g/m²
Custom media sizes	76 x 127 mm - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003 Server/2008 Server, Vista, Mac OSX 10.3-10.6, Linux OS
Sustainability certificates	ENERGY STAR
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
