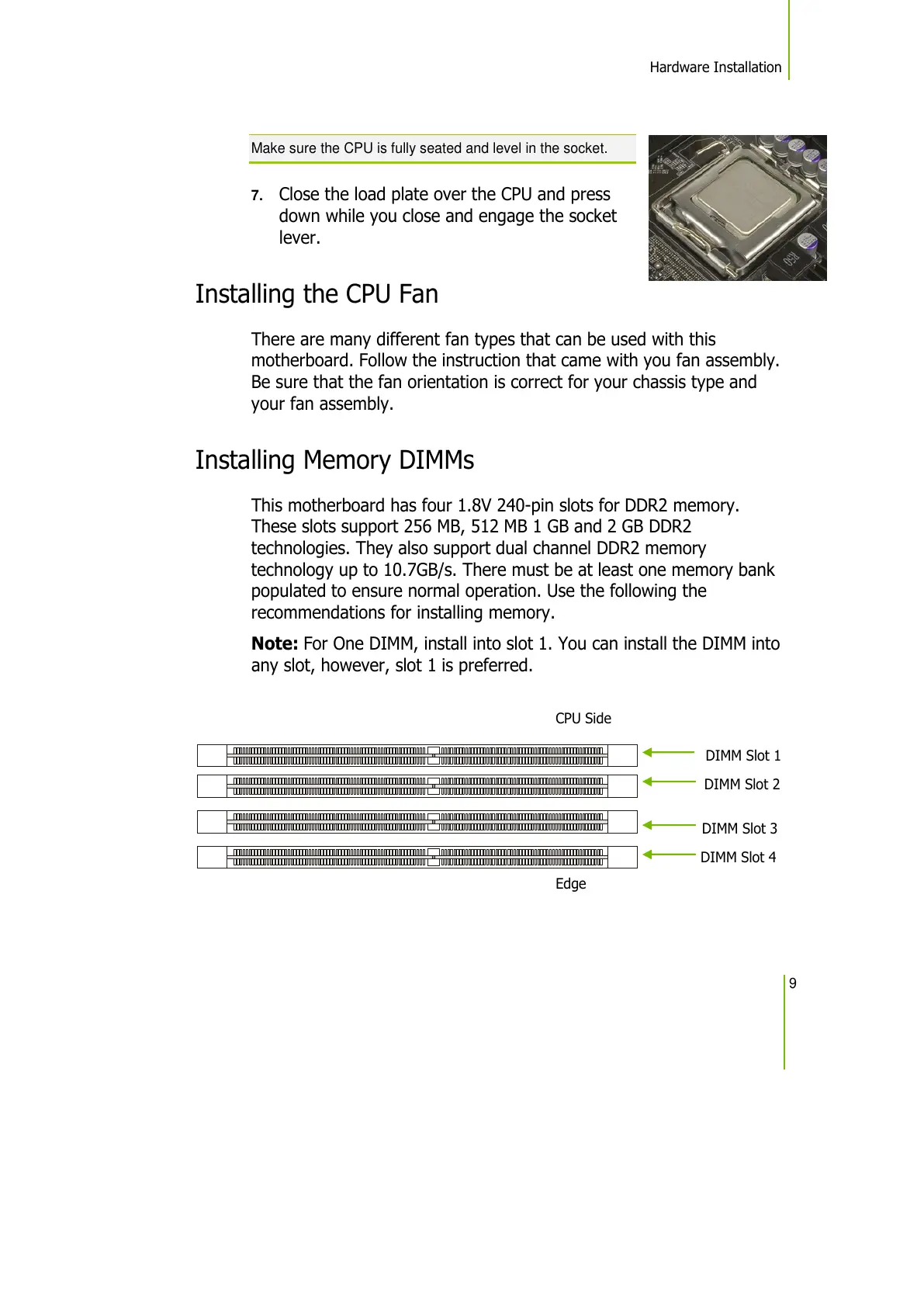

Hardware Installation
9
Make sure the CPU is fully seated and level in the socket.
7.
Close the load plate over the CPU and press
down while you close and engage the socket
lever.
Installing the CPU Fan
There are many different fan types that can be used with this
motherboard. Follow the instruction that came with you fan assembly.
Be sure that the fan orientation is correct for your chassis type and
your fan assembly.
Installing Memory DIMMs
This motherboard has four 1.8V 240-pin slots for DDR2 memory.
These slots support 256 MB, 512 MB 1 GB and 2 GB DDR2
technologies. They also support dual channel DDR2 memory
technology up to 10.7GB/s. There must be at least one memory bank
populated to ensure normal operation. Use the following the
recommendations for installing memory.
Note: For One DIMM, install into slot 1. You can install the DIMM into
any slot, however, slot 1 is preferred.
DIMM Slot 1
DIMM Slot 2
DIMM Slot 3
DIMM Slot 4
CPU Side
Edge
