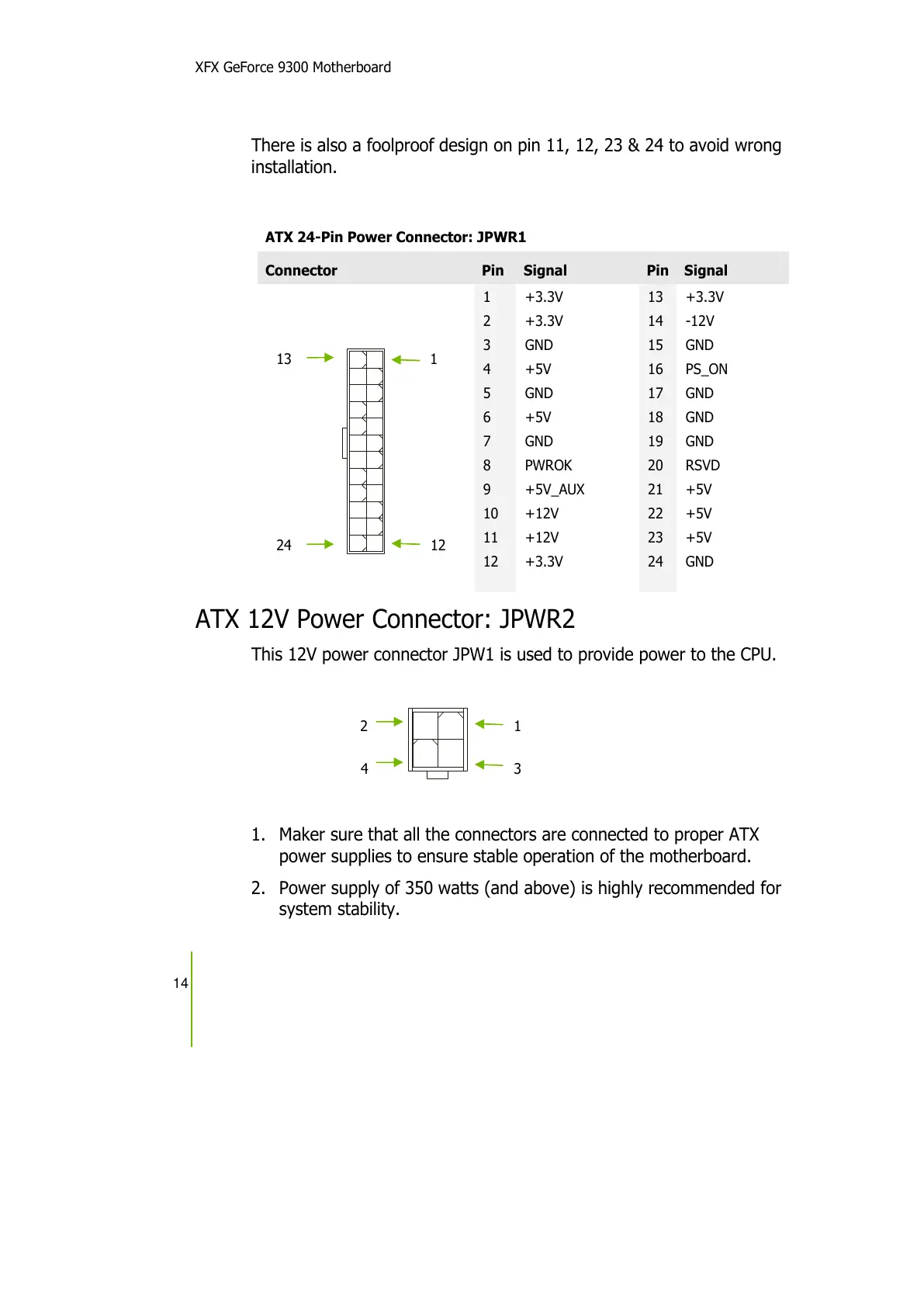

XFX GeForce 9300 Motherboard
14
There is also a foolproof design on pin 11, 12, 23 & 24 to avoid wrong
installation.
ATX 24-Pin Power Connector: JPWR1
Connector Pin Signal Pin
Signal
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PWROK 20 RSVD
9 +5V_AUX 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
ATX 12V Power Connector: JPWR2
This 12V power connector JPW1 is used to provide power to the CPU.
1. Maker sure that all the connectors are connected to proper ATX
power supplies to ensure stable operation of the motherboard.
2. Power supply of 350 watts (and above) is highly recommended for
system stability.
4 3
1 2
13
24
1
12
