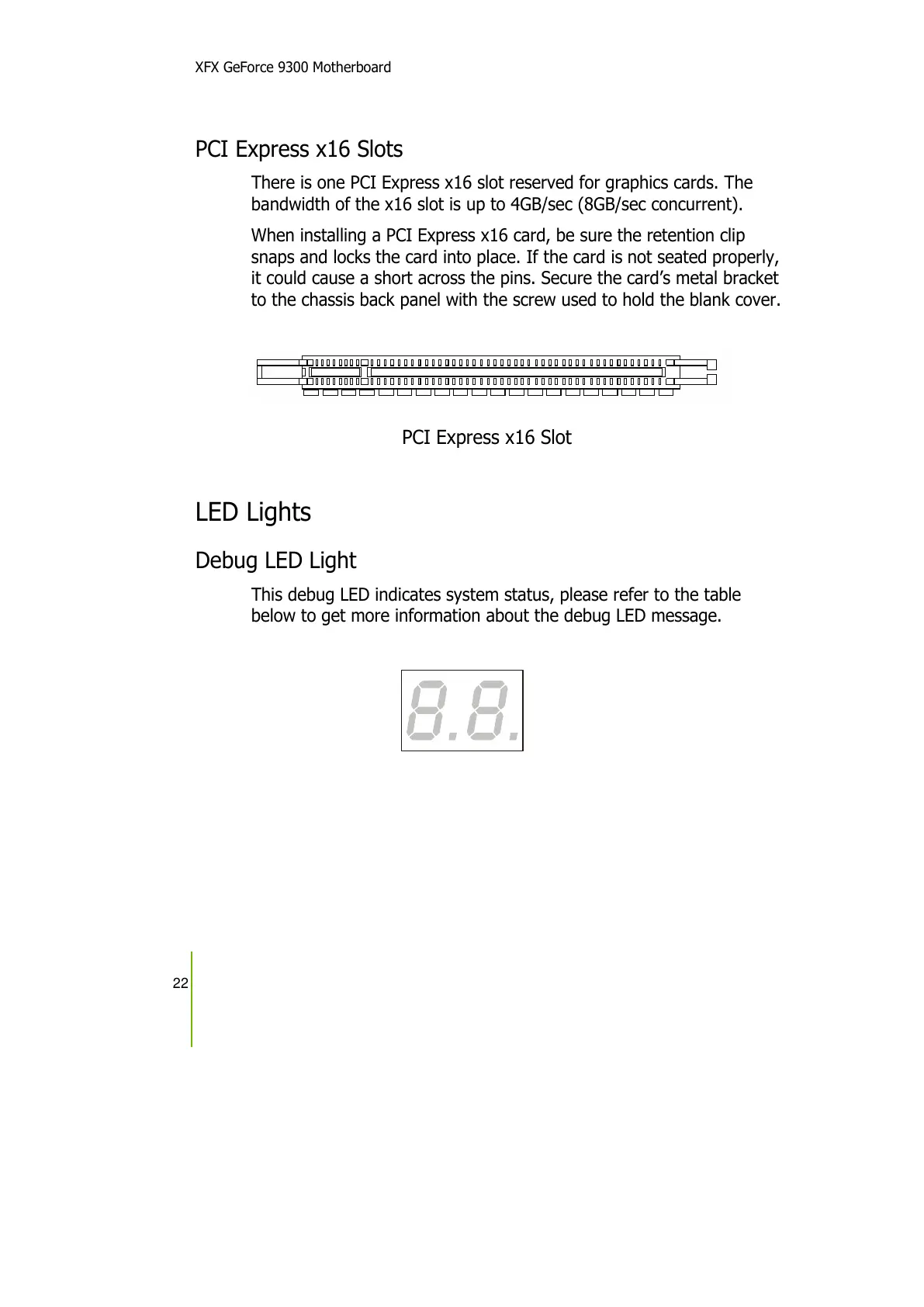

XFX GeForce 9300 Motherboard

PCI Express x16 Slots

There is one PCI Express x16 slot reserved for graphics cards. The

bandwidth of the x16 slot is up to 4GB/sec (8GB/sec concurrent).

When installing a PCI Express x16 card, be sure the retention clip

snaps and locks the card into place. If the card is not seated properly,

it could cause a short across the pins. Secure the card’s metal bracket

to the chassis back panel with the screw used to hold the blank cover.

LED Lights

Debug LED Light

This debug LED indicates system status, please refer to the table

below to get more information about the debug LED message.

PCI Express x16 Slot
