XFX GeForce 9300 User Manual

Hardware Installation
21

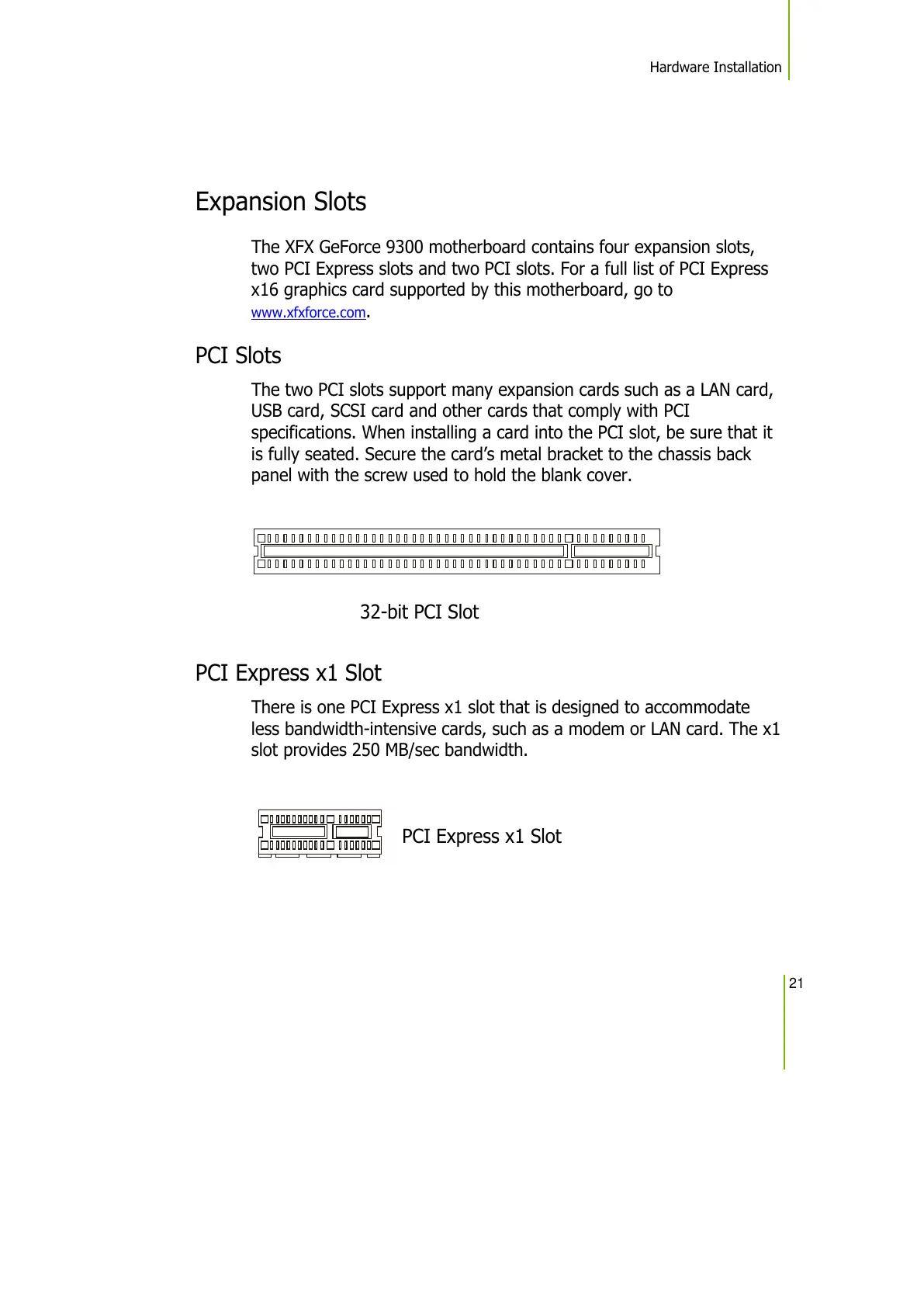

Expansion Slots
The XFX GeForce 9300 motherboard contains four expansion slots,
two PCI Express slots and two PCI slots. For a full list of PCI Express
x16 graphics card supported by this motherboard, go to
www.xfxforce.com .
PCI Slots
The two PCI slots support many expansion cards such as a LAN card,
USB card, SCSI card and other cards that comply with PCI
specifications. When installing a card into the PCI slot, be sure that it
is fully seated. Secure the card’s metal bracket to the chassis back
panel with the screw used to hold the blank cover.
PCI Express x1 Slot
There is one PCI Express x1 slot that is designed to accommodate
less bandwidth-intensive cards, such as a modem or LAN card. The x1
slot provides 250 MB/sec bandwidth.
PCI Express x1 Slot
32-bit PCI Slot
