XFX GeForce 9300 Motherboard
20

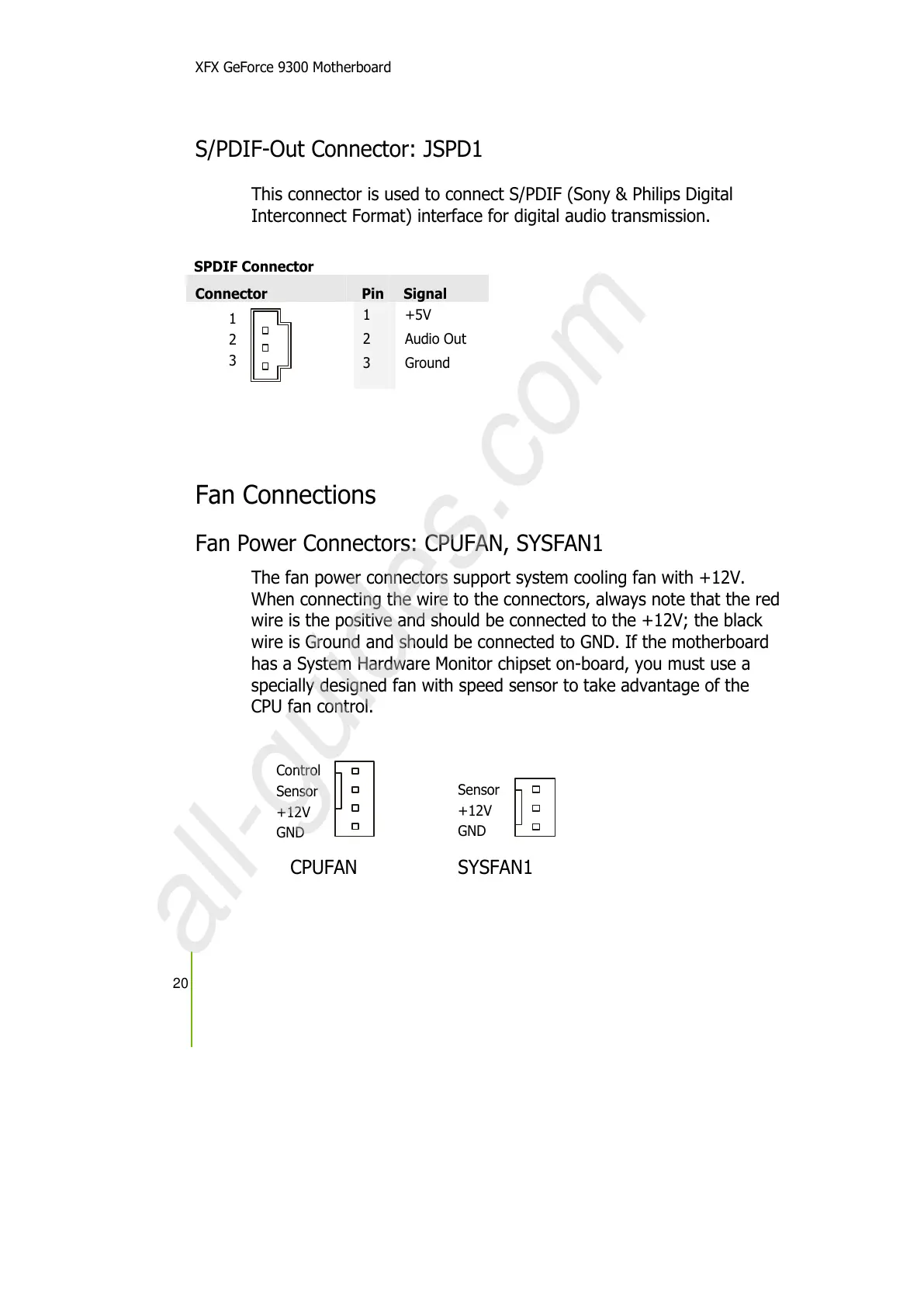

S/PDIF-Out Connector: JSPD1
This connector is used to connect S/PDIF (Sony & Philips Digital
Interconnect Format) interface for digital audio transmission.
SPDIF Connector
Connector Pin Signal
1 +5V
2 Audio Out
3 Ground
Fan Connections
Fan Power Connectors: CPUFAN, SYSFAN1
The fan power connectors support system cooling fan with +12V.
When connecting the wire to the connectors, always note that the red
wire is the positive and should be connected to the +12V; the black
wire is Ground and should be connected to GND. If the motherboard
has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the
CPU fan control.
1
2
3
Control
Sensor
+12V
GND
Sensor
+12V
GND
CPUFAN SYSFAN1
