Chapter 1: ML605 Evaluation Board
Ethernet PHY Status LEDs
The Ethernet PHY status LEDs are mounted to be visible when the ML605 board is
installed into a PC motherboard. They are mounted in right-angle, plastic housings and
can be seen on the connector end of the board. This cluster of six LEDs is installed adjacent
to the RJ45 Ethernet jack P2.
X-Ref Target - Figure 1-16

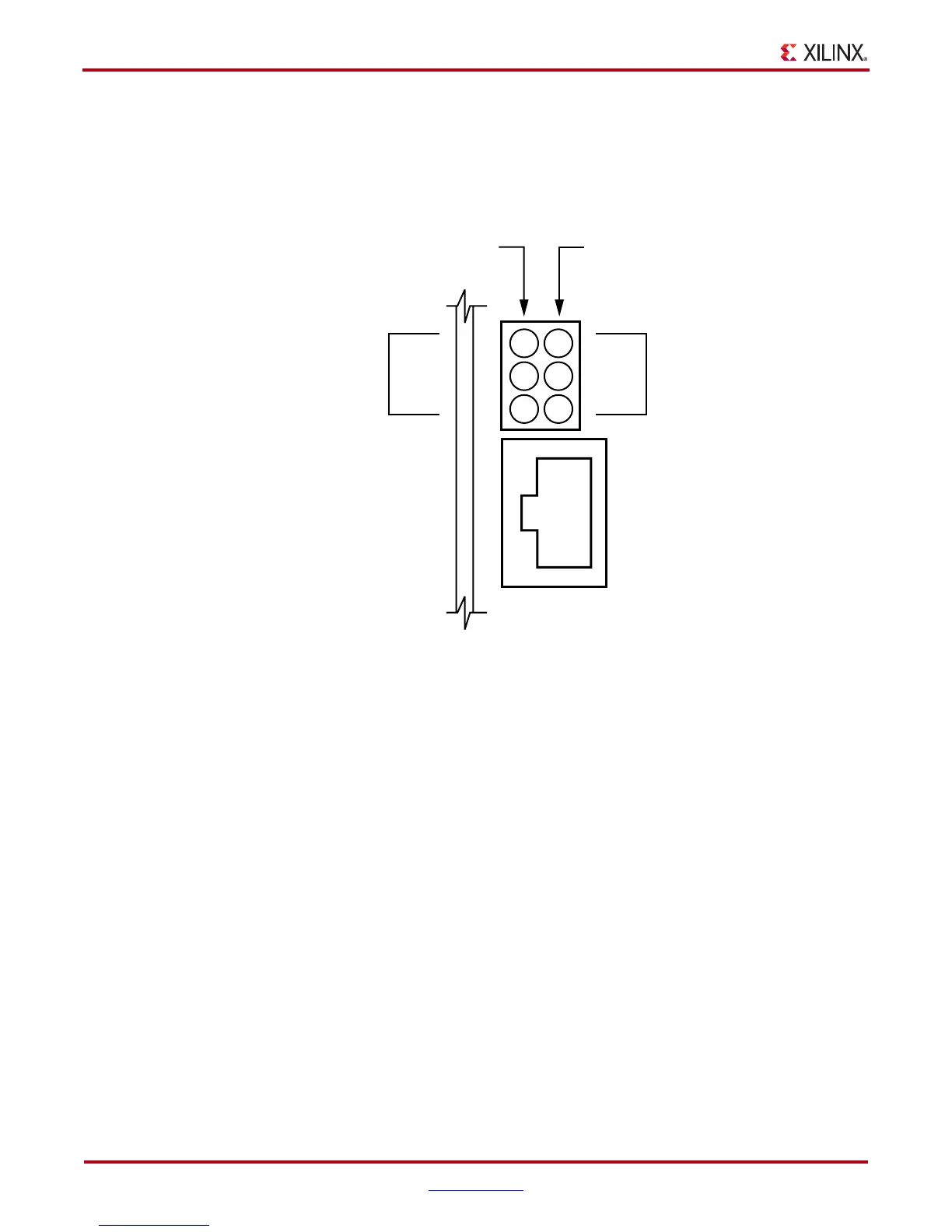

Figure 1-16: Ethernet PHY Status LEDs
Direction
Indicator
Link Rate
(Mbps)
DUP
TX
RX
10
100
1000
P2
End view of ML605 Ethernet jack and
status LEDs when installed vertically
in a PC chassis
UG534_16_101209
