Xilinx Platform Cable USB II User Manual

Platform Cable USB II
DS593 (v1.2.1) March 17, 2011 www.xilinx.com
14
Target Interface Connectors
Mating connectors for attachment of the high-performance ribbon cable to a target system are available in both through-hole
and surface mount configurations (Figure 14). Shrouded and keyed versions should always be used to guarantee proper
orientation when inserting the cable. The connector requires only 105 mm
2
of board space.
The target system voltage applied to pin 2 of this connector is used as a power source for the output buffers that drive the
output pins (see Target Interface Reference Voltage and Signals, page 19).
Table 5, page 14 provides some third-party sources for mating connectors that are compatible with the Platform Cable USB
II ribbon cable.
X-Ref Target - Figure 14

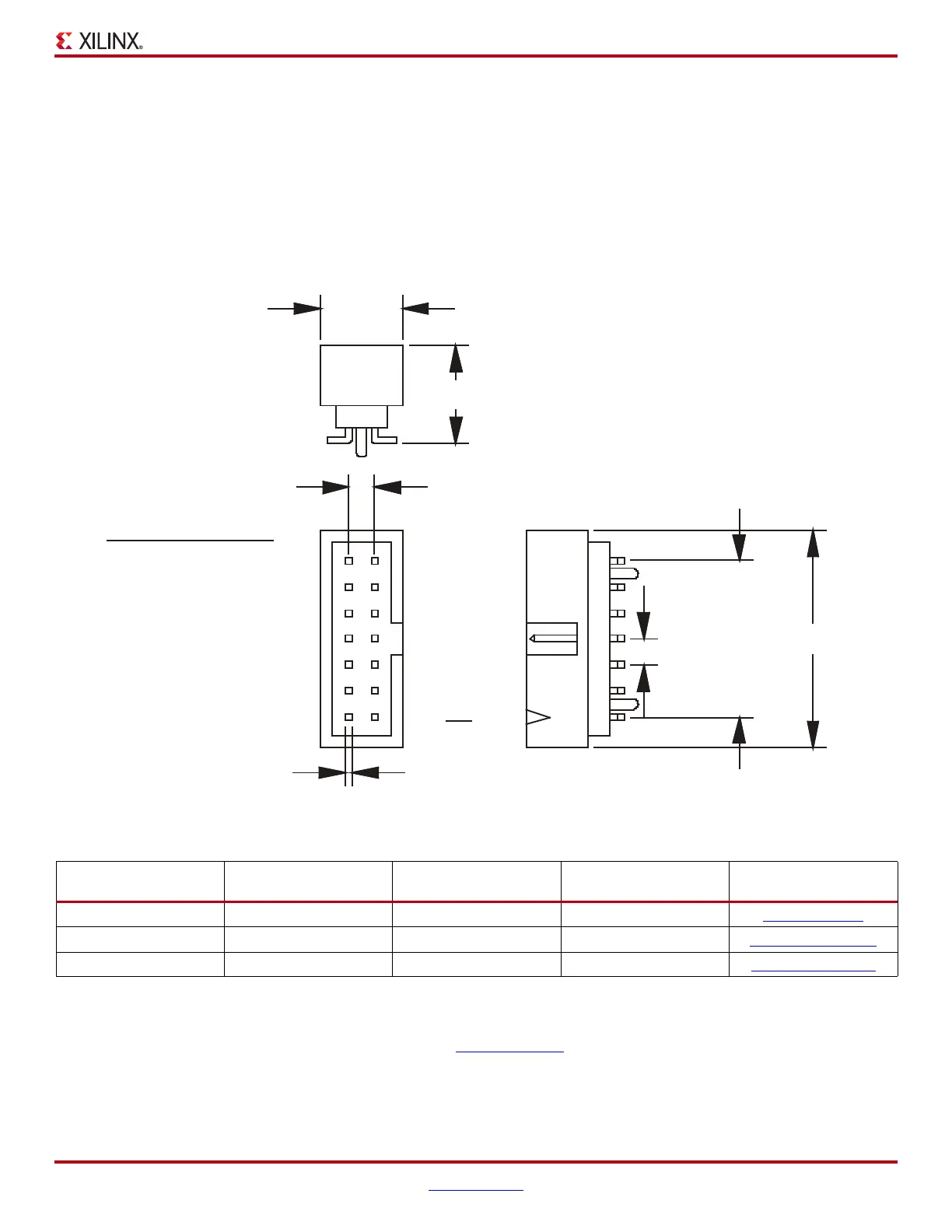

Figure 14: Target Interface Connector Dimensions and Signal Assignments
Tabl e 5 : Mating Connectors for 2 mm pitch, 14-Conductor Ribbon Cable
Manufacturer
(1)
SMT,
Vertical
Through-Hole,
Vertical
Through-Hole,
Right Angle
Web Site
Molex 87832-1420 87831-1420 87833-1420 www.molex.com
FCI 98424-G52-14 98414-G06-14 98464-G61-14 www.fciconnect.com
Comm Con Connectors 2475-14G2 2422-14G2 2401R-G2-14 www.commcon.com
Notes:
1. Some manufacturer pin assignments do not conform to Xilinx pin assignments. Please refer to the manufacturer’s data sheet for more
information.
2. Additional ribbon cables can be purchased separately from the Xilinx Online Store
.
PGND
GND
GND
GND
GND
GND
NC
TDI
TDO
TCK
TMS
Vref
HALT
7.59 mm
6.30 mm
12.00 mm
2.00 mm
13
11
9
7
5
3
1
12
10
8
6
4
2
14
NC NC
MOSI DIN
MISO DONE
SCK CCLK
SS PROG
Vref Vref
WP INIT
JTAGSPI
Slave
Serial
TYP.
16.66 mm
2.00 mm
0.50 mm
DS593_14_012508
