Xilinx Platform Cable USB II User Manual

Platform Cable USB II
DS593 (v1.2.1) March 17, 2011 www.xilinx.com
6
Option 2: Manual Cable Connect
To manually connect the cable, select Output → Cable Setup. Select the Xilinx USB Cable radio button in the Cable
Communication Setup dialog box (Figure 5).
It is necessary to perform a cable disconnect when switching from Boundary Scan or Direct SPI Configuration mode to
Slave-Serial mode, or vice versa. iMPACT can be disconnected from the cable using Output → Cable Disconnect
(Figure 4, page 6). After the mode switch is complete, reestablish the cable connection using the Output → Cable Setup
dialog. It is not necessary, however, to perform a cable disconnect when switching between Boundary-Scan and Direct SPI
Configuration modes.

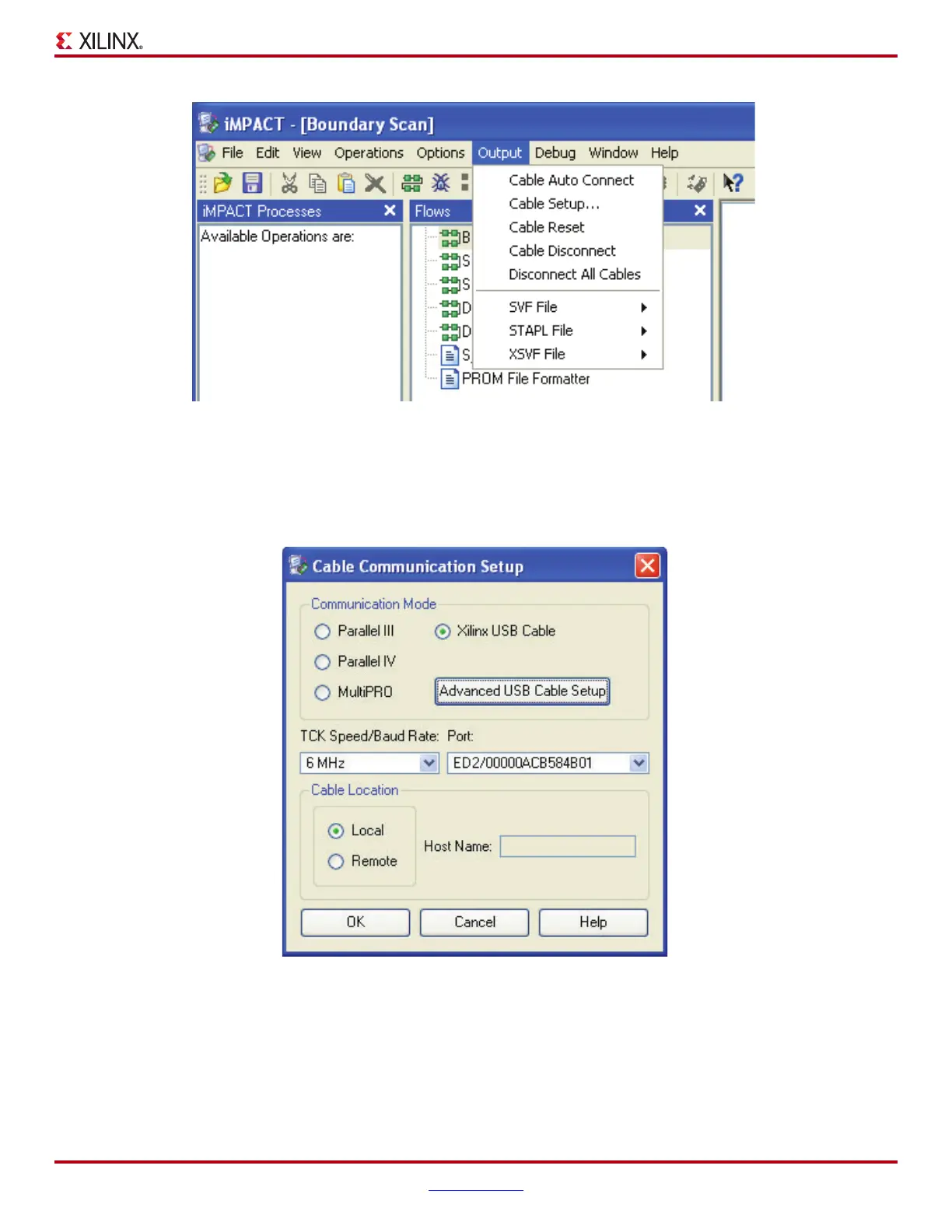

X-Ref Target - Figure 4
Figure 4: iMPACT (9.2i) Output Pull-Down Menu
X-Ref Target - Figure 5
Figure 5: iMPACT (10.1) Cable Communication Setup
DS593_04_021408
DS593_05_021408
