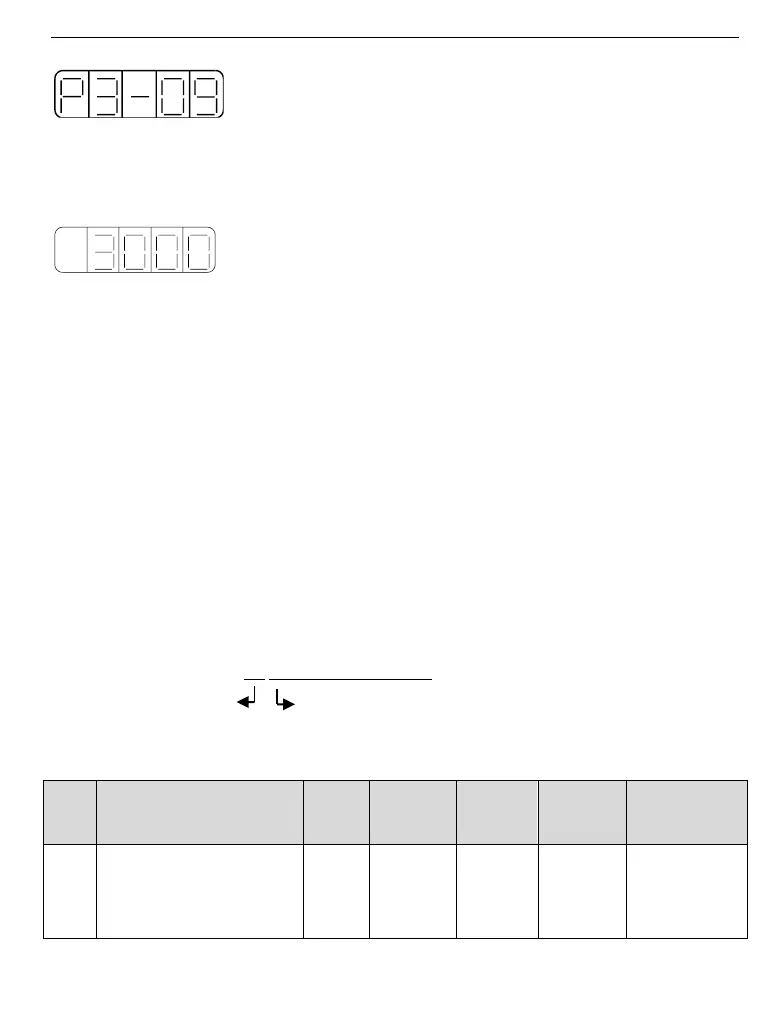

4. At this time the panel displays the value in P3-09, and the last decimal “0” is blinking. Press
ENTER to left shift the blinking decimal. Press INC, DEC or ENTER key to modify the value
to 3000, and press and hold ENTER to confirm.
The parameter in P3-09 in changed from 2000 to 3000.
Repeat steps 2 to 4 to change the parameter again.
5. Press STATUS/ESC key to return.
when the parameters are over the setting range, the drive will show E-021 alarm.
6. Parameter list
○ means the parameter can be modified when the servo is OFF, and effective when servo is
ON.
● means the parameter can be modified any time, and effective when re-power on the servo.
√ means the parameter can be modified any time, and effective immediately.
Adding “n.” before the parameter means the value is hex.
Parameter: PX－XX＝ n.×× ××
PX－XX. H PX－XX.L
P0: function selection
P0-
Function
Unit
Default
Range
Effective
Suitable
mode
01
Submode 1
1: torque (command) (for
DS3-PQA)
-
6
1～10
○
All the
modes

Xinje DS3 Series Specifications

General

Series	DS3 Series
Control Mode	Position, Speed, Torque
Power Supply	Single-phase/Three-phase
Output Power	0.1kW to 7.5kW (depending on model)
Communication	CANopen
Encoder Type	Incremental/ Absolute
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature
Operating Temperature	0°C to +55°C
Vibration Resistance	5.9 m/s² (10-60 Hz)
Altitude	1000m
Cooling Method	Forced air cooling
Humidity	5% to 95% RH, non-condensing
