Xomax XM-DTSB1010 User Manual

-8-
Electric C onn e c t i on

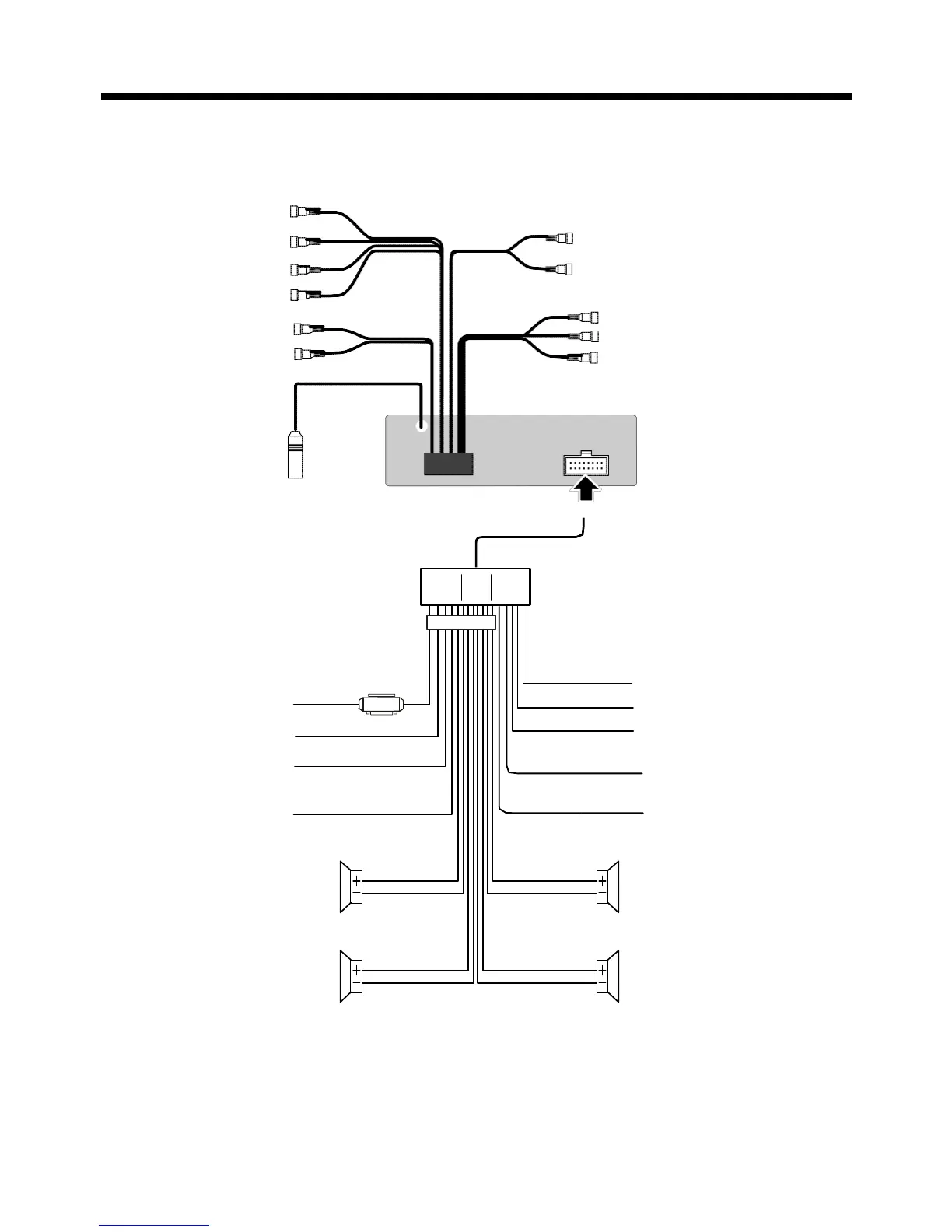

WIRING CONNECTION
RCH IN RED
VIDEO OUT(2) YELLOW
VIDEO IN YELLOW
LCH IN WHITE
RCH RED
LCH WHITE
AV IN
REAR OUTPUT CABLE
FRONT RCA OUTPUT
CABLE
SUBWOOFER GREY
REAR CAMERA INPUT YELLOW
FRONT RCA RED R
VIDEO OUT YELLOW
FRONT RCA WHITE L
RADIO ANTENNA JACK
ISO CONNECTOR
IGNITION SWITCH(B+)
RED
FUSE
KEY GROUND(BLACK)
KEY 1(BROWN)
MEMORY BACK-UP(B+)
GROUND(B-)
AUTO ANTENNA
YELLOW
BLACK
BLUE
PINK
LIGHT GREEN
KEY 2(WHITE/ORANGE)
(B+)12V
REAR CAMERA SWITCH
(B-)PARKING BRAKE
FRONT
LCH SPK.
REAR
LCH SPK.
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FRONT
RCH SPK.
REAR
RCH SPK.
No t e :
the earth connection cable (parking brake B-) must be connected in order for
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.

Xomax XM-DTSB1010 Specifications

General

Brand	Xomax
Model	XM-DTSB1010
Category	Car Video System
Language	English
