Xtool D7 User Manual

2

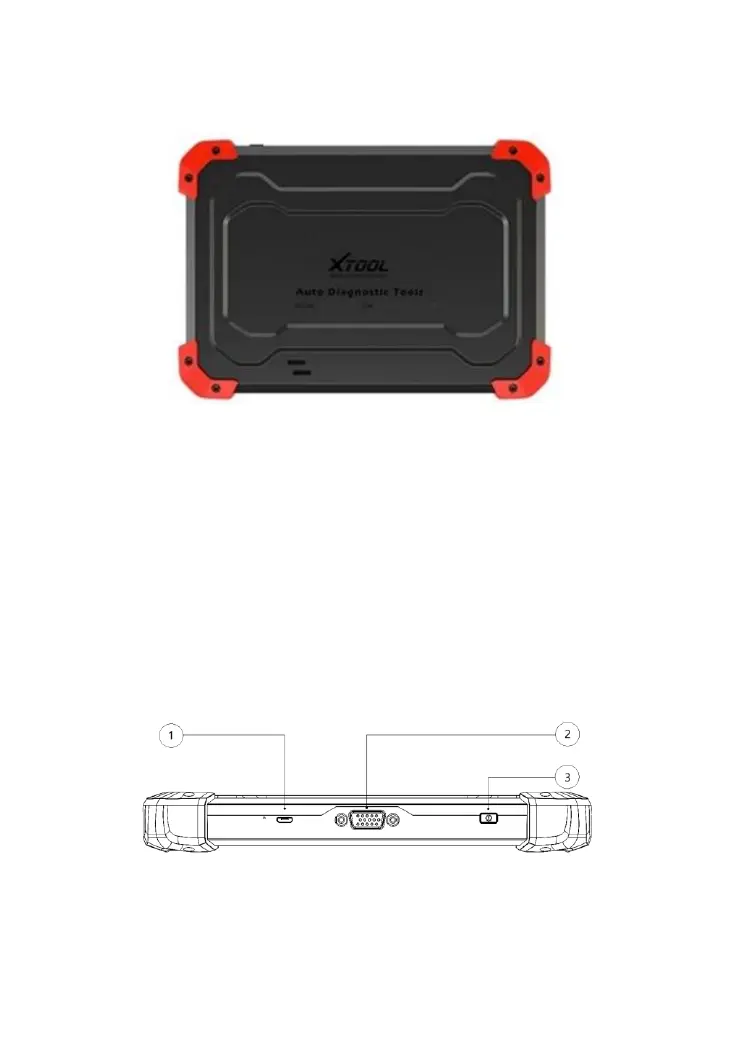

BACK VIEW OF TABLET
Fig 1-2 Sample of Tablet Back View
The product model and S/N are laser-engraved on the back of the display
tablet, and the small hole at the bottom is the Loudspeaker.
① Nameplate: Display basic information such as S/N and model etc.
② Loudspeaker: external sound can be played, supporting the playback
of music, etc.
HOST PORTS
Fig 1-3 Sample of Host Ports on Tablet

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
