3.11 Labels

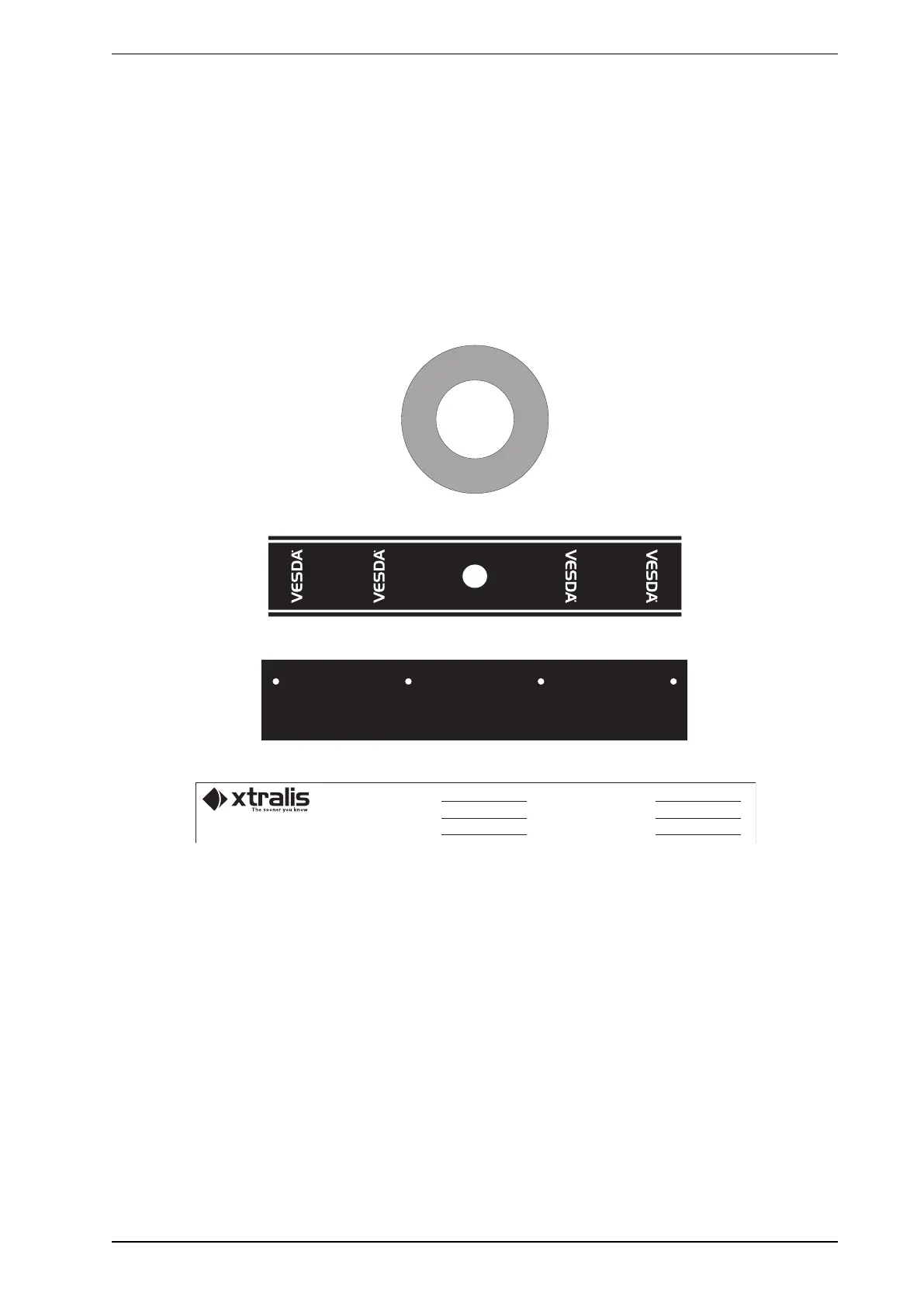

Sampling point labels – There are two labels to identify sampling holes:
l Miniature sampling point label: These are round labels with a hole in the center to fit around the
miniature sampling points. Refer to Figure 3-10.
l Sampling point decal: This decal is wrapped around a pipe on the sampling hole. The decal has a
hole in the center. The hole in the decal must be aligned to the sampling hole drilled into the pipe. Refer
to Figure 3-11.
l Pipe label: This label identifies the pipe as being a smoke detector pipe and warns against tampering
with it. Refer to Figure 3-12.
l Test Point label: This label identifies a sampling point which is used for test purposes. It is normally
the last sampling point on the main pipe or branch pipe. Refer to Figure 3-13.
V
E
S
D
A
®
F
I
R
E
D
E
T
E
C
T
I
O
N
S
Y
S
T
E
M
-
D
O
N
O
T
P
A
I
N
T
Figure 3-10: Miniature Sampling Point label
FIRE
DETECTION
SYSTEM
DO NOT
PAINT
FIRE
DETECTION
SYSTEM
DO NOT
PAINT
Figure 3-11: Sampling Point decal
CAUTION CAUTION CAUTION
VESDA
SMOKE DETECTOR SAMPLING PIPE
DO NOT REMOVE, PAINT OR OBSTRUCT
Figure 3-12: Pipe label
www.xtralis.com
part no. 29624
Install Date:
Detector Zn #:
Pipe #:
T
est Point #:
Transport Time (sec):
Suction Pressure (Pa):
document no. 18715
TM
TM
TM
TM
Figure 3-13: Test Point label
