d) Twist all power core screens together to create a ground (earth) core and fit a
cable terminal to the end.
e) Check that the ground (earth) core is at least 10% longer than the phase cores in
the cabinet.
5. How is the connection to ground (earth) made?
• Screw: Fit cable terminals to the ground (earth) core and the power cores.
• Terminal block: Leave the core ends as they are.
6. Prepare the main leads:
a) Remove the aluminum foil around each power core.
b) Peel the insulation from each power core.
4.2.2 Connect the motor cable to the pump: Version code 2190.010, 2201.012/020/320
NOTICE:
Leakage into the electrical parts can cause damaged equipment or a blown fuse. Keep
the end of the motor cable dry at all times.

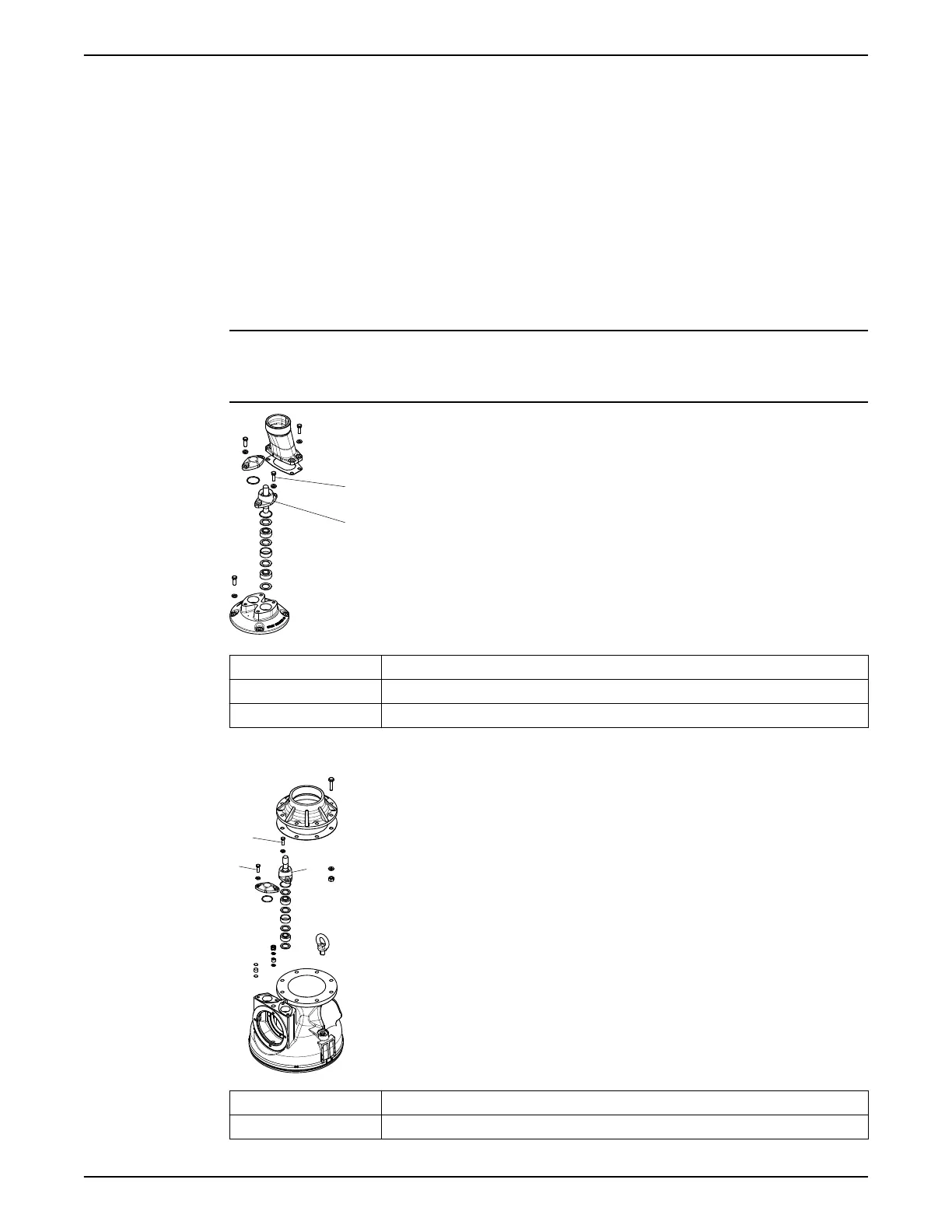

Part Description
1 Screws
2 Entrance flange
Figure 6: Cable entry for version code 2190.010 HT and 2201.012 HT
Part Description
1 Screws
4 Installation
20 Flygt 2190, 2201 Installation, Operation, and Maintenance Manual
