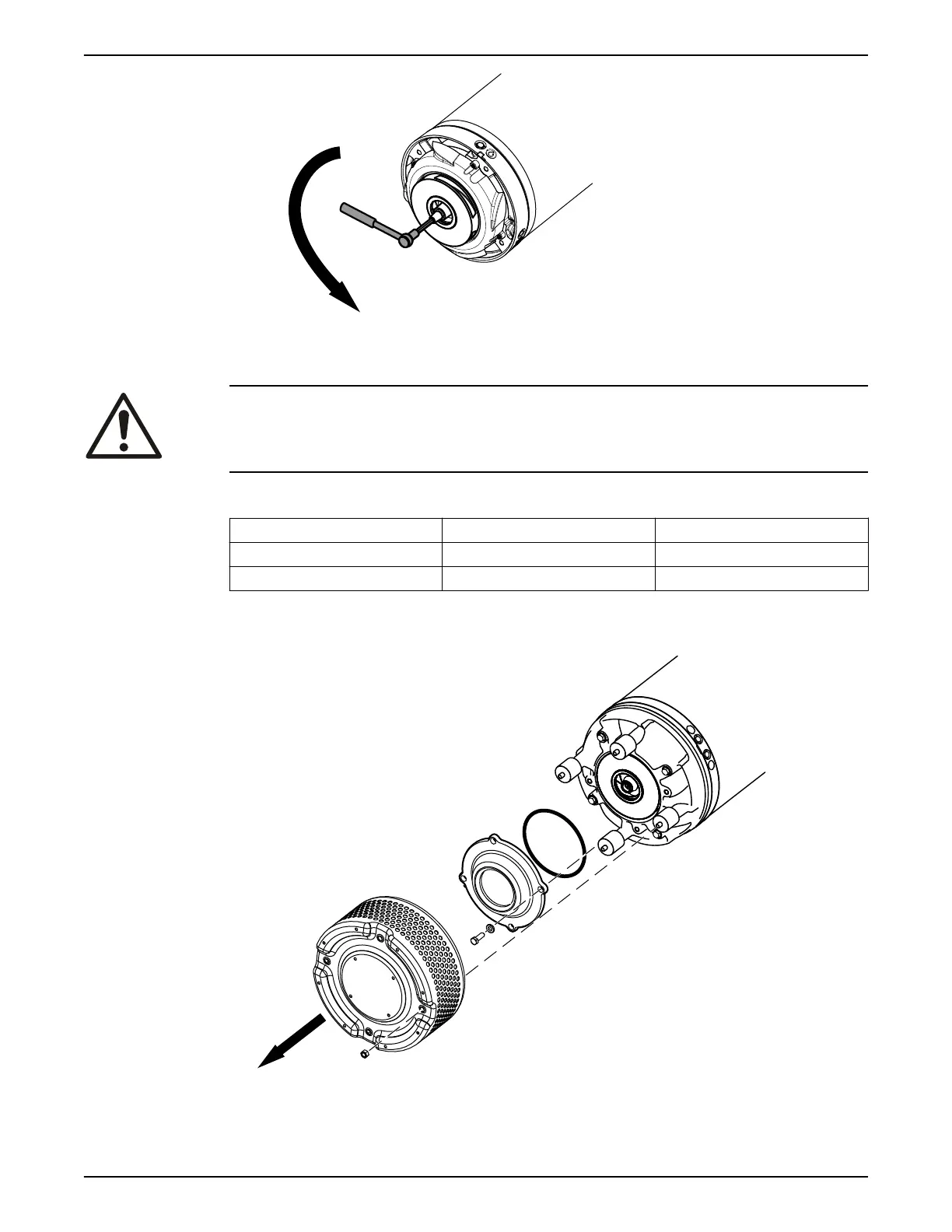

WS001351A
c)
Pull off the impeller.
6.4.4 Remove the impeller, alternative 4
CAUTION: Cutting Hazard
Worn parts can have sharp edges. Wear protective clothing.
Table 6: Applicability
Product code
Pressure class
Open or closed impeller
2190.010
HT
Open
2201.012
MT, HT
Open
The illustrations are generic.
1.
Remove the strainer.
WS001334B
2.
Loosen the impeller:
a)
Lock the impeller to prevent rotation.
6 Maintenance
Flygt 2190, 2201 Installation, Operation, and Maintenance Manual
39
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction and Safety
5
Introduction
5
Safety Terminology and Symbols
5
User Safety
6
Ex-Approved Products
6
Special Hazards
8
Protecting the Environment
9
Spare Parts
9
Warranty
9
2 Transportation and Storage
10
Inspect the Delivery
10
Inspect the Package
10
Inspect the Unit
10
Transportation Guidelines
10
Lifting
10
Temperature Ranges for Transportation, Handling and Storage
10
Storage Guidelines
11
3 Product Description
12
Products Included
12
Pump Design
12
Monitoring Equipment
13
The Data Plate
13
Approvals
14
Product Denomination
15
4 Installation
17
Install the Pump
17
Install with S-Installation
18
Make the Electrical Connections
19
Prepare the SUBCAB Cables
20
Connect the Motor Cable to the Pump: Version Code 2190.010, 2201.012/020/320
22
Connect the Motor Cable to the Pump: Version Code 590/690/691
24
Cable Charts
25
Check the Impeller Rotation
29
5 Operation
30
Start the Pump
30
Clean the Pump
31
6 Maintenance
32
Torque Values
32
Service
33
Inspection
33
Major Overhaul
34
Change the Oil
35
Replace the Impeller
36
Remove the Impeller, Alternative 1
36
Remove the Impeller, Alternative 2
37
Remove the Impeller, Alternative 3
38
Remove the Impeller, Alternative 4
41
Install the Impeller, Alternative 1
42
Install the Impeller, Alternative 2
43
Install the Impeller, Alternative 3
47
Install the Impeller, Alternative 4
52
Adjust the Impeller
54
Replace the Diffuser
55
7 Troubleshooting
57
The Pump Does Not Start
57
The Pump Does Not Stop When a Level Sensor Is Used
58
The Pump Starts-Stops-Starts in Rapid Sequence
58
The Pump Runs but the Motor Protection Trips
59
The Pump Delivers too Little or no Water
59
8 Technical Reference
61
Application Limits
61
Specific Motor Data: Version Code 2190.010, 2201.012/020
61
Specific Motor Data: Version Code 2201.320/590/690/691
64
Dimensions and Weights
65
Performance Curves
67
