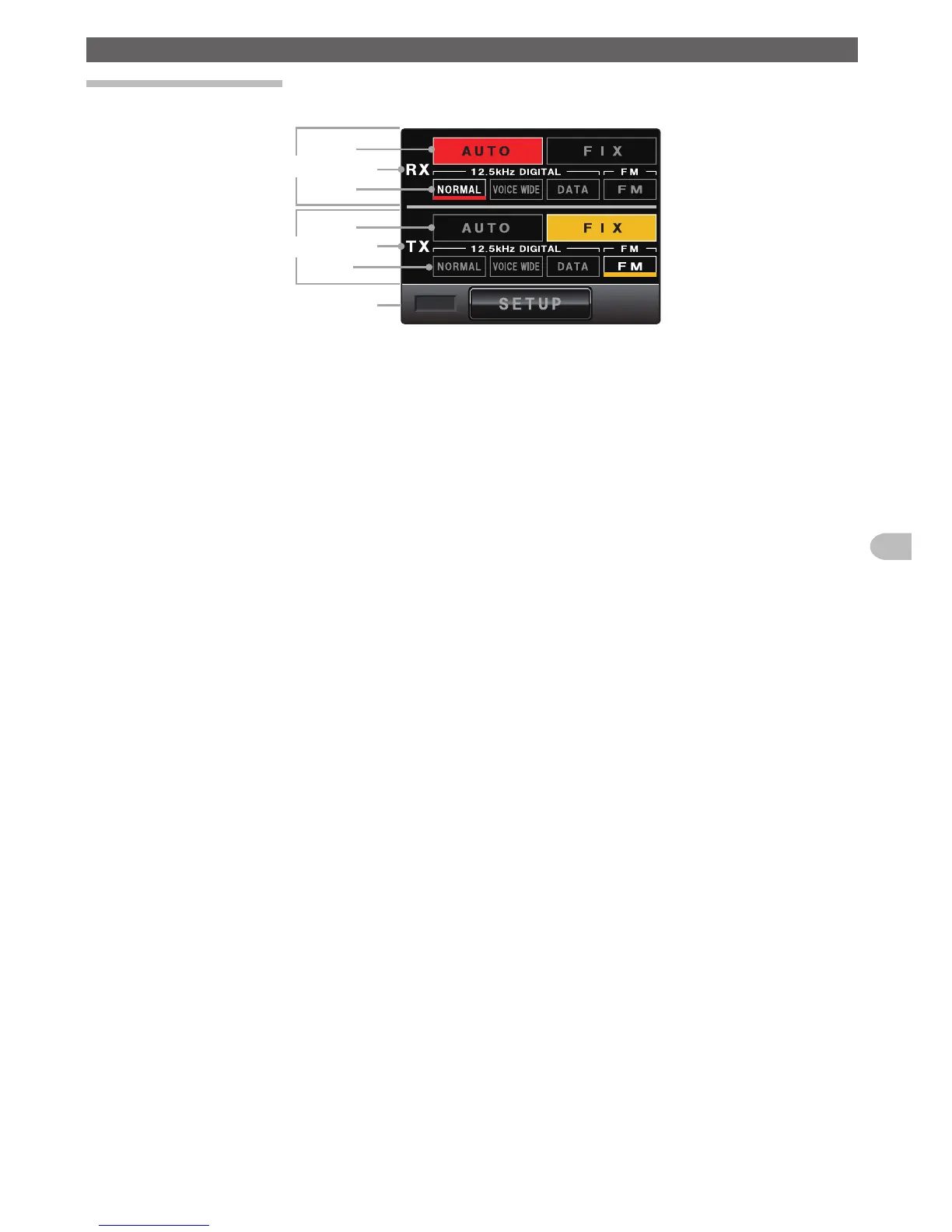

RX Receive (up link) band display area
TX Transmit (down link) band display area
Operation mode display area
[AUTO] Touch here to activate the AMS (automatic mode select) function. The communication mode switches automatically
according to the received/transmitted signal types.
[FIX] Touch here to receive/transmit signals in the selected communication mode at all time.
Communication mode display area
The items are displayed in red during the AUTO mode and yellow during the FIX mode.
[NORMAL] Indicates operation is in the simultaneous voice and data communication mode (digital).
[VOICE WIDE] Indicates operation is in the high-rate voice communication mode (digital).
[DATA] Indicates operation is in the high speed data communication mode (digital).
[FM] Indicates operation is in the analog communication mode on the FM band.
RX indicator
This indicator shows green when a signal is received and white when there is no signal.
TX indicator
This indicator shows red when the repeater transmits and white when there is no transmit.
Settings display area
[REMOTE] Displayed in red when remote operation with an external controller is enabled (see page 23).
[SETUP] Touch here to switch the display to the setup mode screen.
