Yaesu FT-891 Technical Supplement

FT-891 Technical Supplement

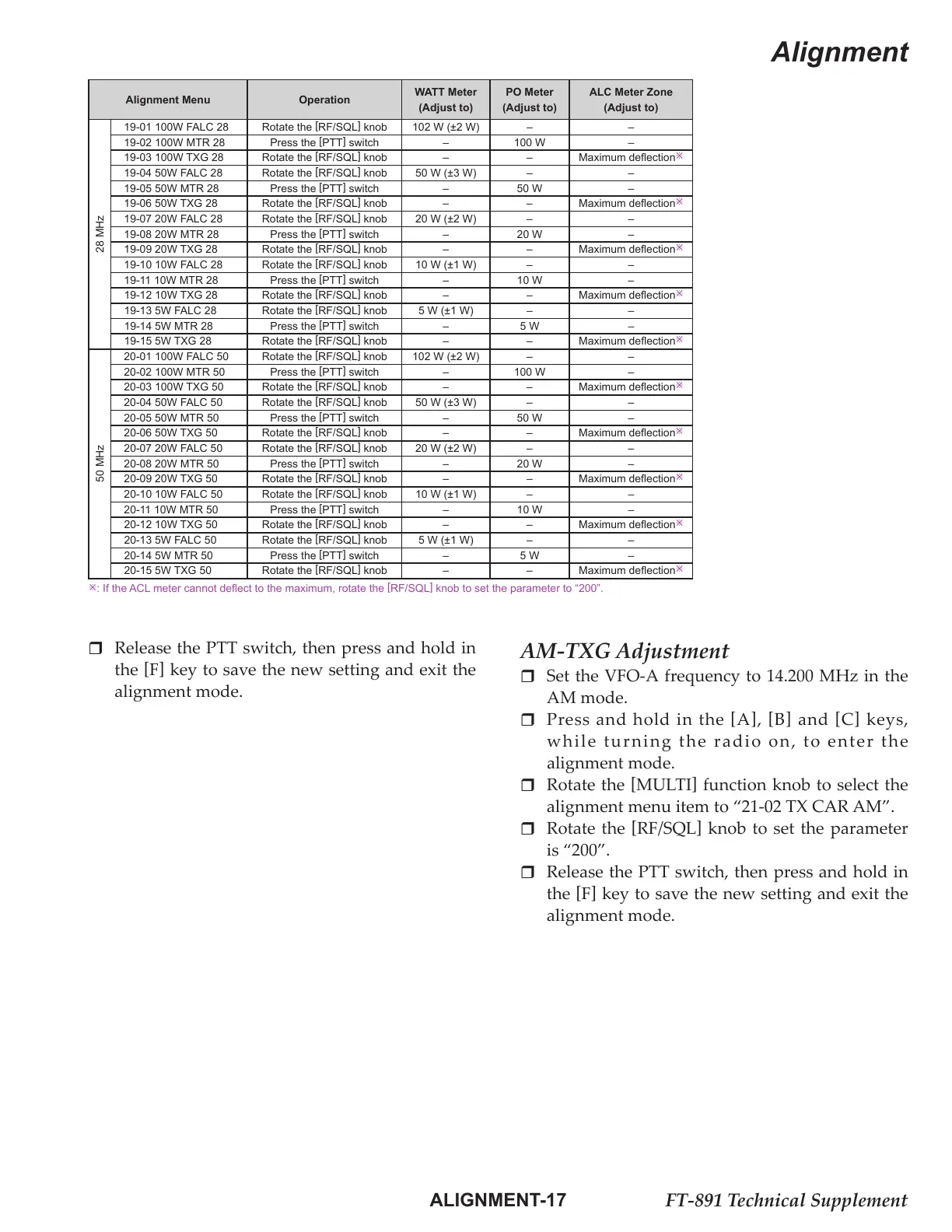

Alignment
ALIGNMENT-17
Alignment Menu Operation
WATT Meter
(Adjust to)
PO Meter
(Adjust to)
ALC Meter Zone
(Adjust to)
28 MHz
19-01 100W FALC 28 Rotate the
[
RF/SQL
]
knob 102 W (±2 W) – –
19-02 100W MTR 28 Press the
[
PTT
]
switch – 100 W –
19-03 100W TXG 28 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
19-04 50W FALC 28 Rotate the
[
RF/SQL
]
knob 50 W (±3 W) – –
19-05 50W MTR 28 Press the
[
PTT
]
switch – 50 W –
19-06 50W TXG 28 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
19-07 20W FALC 28 Rotate the
[
RF/SQL
]
knob 20 W (±2 W) – –
19-08 20W MTR 28 Press the
[
PTT
]
switch – 20 W –
19-09 20W TXG 28 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
19-10 10W FALC 28 Rotate the
[
RF/SQL
]
knob 10 W (±1 W) – –
19-11 10W MTR 28 Press the
[
PTT
]
switch – 10 W –
19-12 10W TXG 28 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
19-13 5W FALC 28 Rotate the
[
RF/SQL
]
knob 5 W (±1 W) – –
19-14 5W MTR 28 Press the
[
PTT
]
switch – 5 W –
19-15 5W TXG 28 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
50 MHz
20-01 100W FALC 50 Rotate the
[
RF/SQL
]
knob 102 W (±2 W) – –
20-02 100W MTR 50 Press the
[
PTT
]
switch – 100 W –
20-03 100W TXG 50 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
20-04 50W FALC 50 Rotate the
[
RF/SQL
]
knob 50 W (±3 W) – –
20-05 50W MTR 50 Press the
[
PTT
]
switch – 50 W –
20-06 50W TXG 50 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
20-07 20W FALC 50 Rotate the
[
RF/SQL
]
knob 20 W (±2 W) – –
20-08 20W MTR 50 Press the
[
PTT
]
switch – 20 W –
20-09 20W TXG 50 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
20-10 10W FALC 50 Rotate the
[
RF/SQL
]
knob 10 W (±1 W) – –
20-11 10W MTR 50 Press the
[
PTT
]
switch – 10 W –
20-12 10W TXG 50 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
20-13 5W FALC 50 Rotate the
[
RF/SQL
]
knob 5 W (±1 W) – –
20-14 5W MTR 50 Press the
[
PTT
]
switch – 5 W –
20-15 5W TXG 50 Rotate the
[
RF/SQL
]
knob – – Maximum deection
ø
ø
: If the ACL meter cannot deect to the maximum, rotate the
[
RF/SQL
]
knob to set the parameter to “200”.

Release the PTT switch, then press and hold in
the
[
F
]
key to save the new setting and exit the
alignme
nt mode.
AM-TXG Adjust
ment

Set the VFO-A frequency to 14.200 MHz in the
AM mode.

Press and hold in the
[
A
]
,
[
B
]
and
[
C
]
keys,
while turning the radio on, to enter the
alignment mode.

Rotate the
[
MULTI
]
function knob to select the
alignment menu item to “21-02 TX CAR AM”.

Rotate the
[
RF/SQL
]
knob to set the parameter
is “200”.

Release the PTT switch, then press and hold in
the
[
F
]
key to save the new setting and exit the
alignment mode.
