Yaesu FT-891 Technical Supplement

SW-A-1

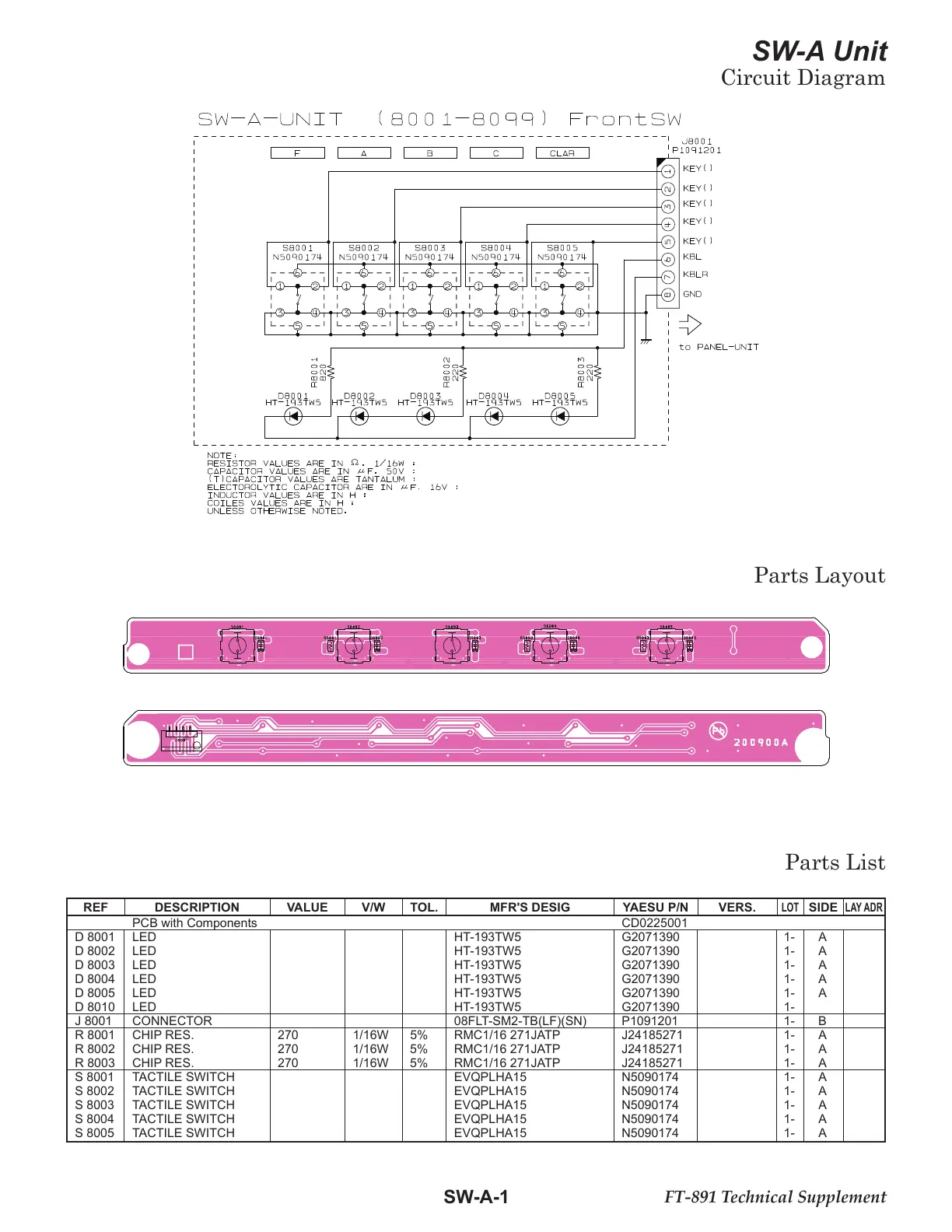

SW-A Unit
PCB with Components CD0225001
D 8001 LED HT-193TW5 G2071390 1- A
D 8002 LED HT-193TW5 G2071390 1- A
D 8003 LED HT-193TW5 G2071390 1- A
D 8004 LED HT-193TW5 G2071390 1- A
D 8005 LED HT-193TW5 G2071390 1- A
D 8010 LED HT-193TW5 G2071390 1-
J 8001 CONNECTOR 08FLT-SM2-TB(LF)(SN) P1091201 1- B
R 8001 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A
R 8002 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A
R 8003 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A
S 8001 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8002 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8003 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8004 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8005 TACTILE SWITCH EVQPLHA15 N5090174 1- A
Circuit Diagram
Parts Layout
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
